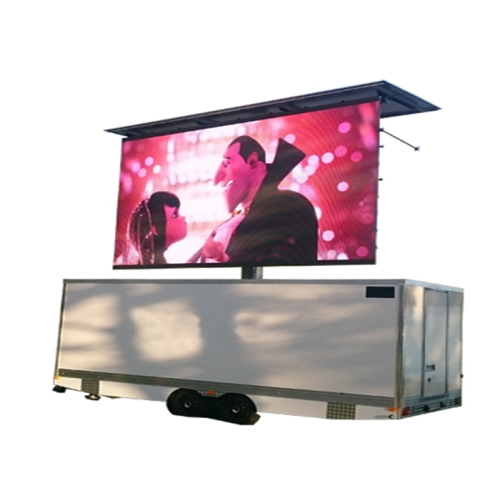

Outdoor Commercial Advertising Mobile Trailer LED Display

Outdoor Commercial Advertising Mobile Trailer LED Display

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000m²/Month
Supply Ability:	6000m²/Month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC FCC ETL CE EMC RoHS
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

Product Features
*Large viewing angle
*Energy saving
*Better color uniformity and fidelity
*Low consumption and Long lifespan time
*Excellent thermal management
*Easy maintenance

Advantages
*1.Excellent waterproof structure: As for outdoor mobile LED display,it must do well in waterproof. Our products can almost completely anti-dust and anti-water jet. So the LED display can move freely.
*2.High value :The brightness of 6500 nits and wide viewing angle can meet the needs of people watching at different distances even longer viewing distance. The grayscale of 16-bit also ensures that the color of the image is vivid and delicate.

*3.Strong plasticity: It can plays anything reasonable you want to spread like advertising or major notifications through words, symbols and video. As for you , you own the rights for creating the content and form.

*4 Easier to operate: It is available both for full remote controlling and on-site programming via phone, tablet, laptop and computer.

Details

Pixel Pitch	8mm	10mm	16mm
Pixel Density	15,625 px/m²	10,000 px/m²	3,906px/m²
LED Type	SMD3535	SMD3535	SMD3535
LED Configuration	1R1G1B	1R1G1B	1R1G1B
Module Dimension	256*256mm	320*320mm	256*128mm
Cabinet Dimension	1280*768mm	1280*960mm	1280*896mm
Cabinet Resolution	160*96px	128*96px	160*56px
Cabinet Weight	70kg	80kg	80kg
Cabinet Material	Steel/aluminum	Steel/aluminum	Steel/aluminum
Ingress Protection (front/rear)	IP65/IP54	IP65/IP54	IP65/IP54
Brightness	>6500nits	>6500nits	>6500nits
Viewing Angle(H/V)	140°/140°	140°/140°	140°/140°
Driving Method	1/6 Scan	1/6 Scan	1/6 Scan
Power Consumption(avg.)	360w/m²	360w/m²	360w/m²
Power Consumption(max.)	900w/m²	900w/m²	900w/m²
Frame Refresh	≥ 60Hz	≥ 60Hz	≥ 60Hz
Data Refresh Rate	≥ 1500Hz	≥ 1500Hz	≥ 1500Hz
Gray Scale	16bit	16bit	16bit
Colours	281 trillion	281 trillion	281 trillion
Contrast Ratio	2000:1	2000:1	2000:1
Power Supply	AC 110/220±10% 50~60Hz	AC 110/220±10% 50~60Hz	AC 110/220±10% 50~60Hz
Temperature (operating/storage)	-20~50°C / -40~60°C	-20~50°C / -40~60°C	-20~50°C / -40~60°C
Humidity(operating/storage)	10%~90%RH 10%~85%RH	10%~90%RH 10%~85%RH	10%~90%RH 10%~85%RH
MTBF	≥1000 Hours	≥1000 Hours	≥1000 Hours
Life Span	≥100000 Hours	≥100000 Hours	≥100000 Hours
Pixel Failure	<0.0003	<0.0003	<0.0003

Fixed outdoor led display trailer LED Screen High gray scale

Services
*We can offer customization service for customized products and can provide onsite installation and testing service.
*We provide 2 years warranty and free repair service for our products sold.
*We also provide free training to customers' engineer.

Tips
*Payment: We accept the L/C,T/T,Western Union.
*Shipment: We will ship within 30 working days after you placed the order, but the specific delivered time will be affected by the shipping company and shipping details.
*Package: We usually pack the product in a wooden box or flight case
