Outdoor Stage LED Display Light Weight

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000m²/month
Supply Ability:	6000m²/month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC,FCC,ETL,CE,EMC,RoHS
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

Feature:

1.IP65 rated with robust components.
2. Easy one-person-handling for setup and tear down, cabinet locking system can connect the cabinet without any tools, quick installation within 8 seconds.
3.Faster and easier problem shooting, magnetic fixed pixel cards for a fast and easy maintenance.
4. No fan design, no noise.

Outdoor LED display is designated for outdoor events for advertisement, notice or performance purposes,

which require quality of high brightness and being water-proof.

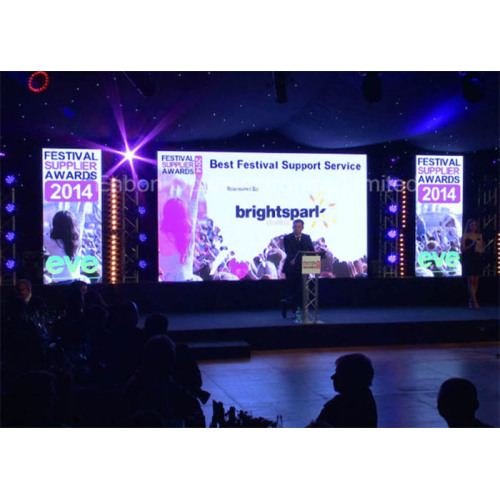

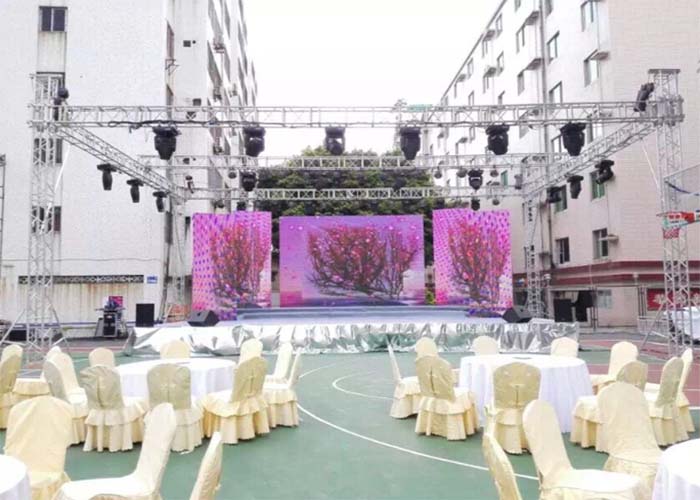

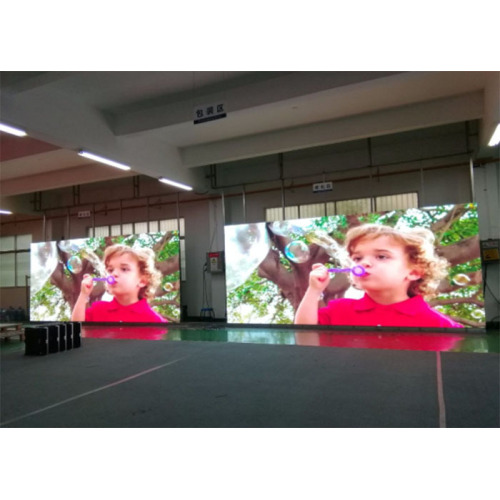

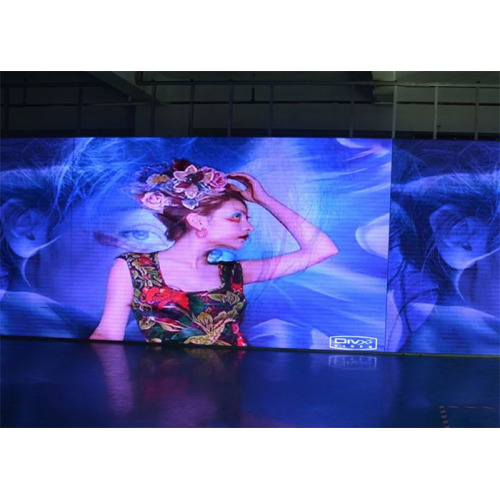

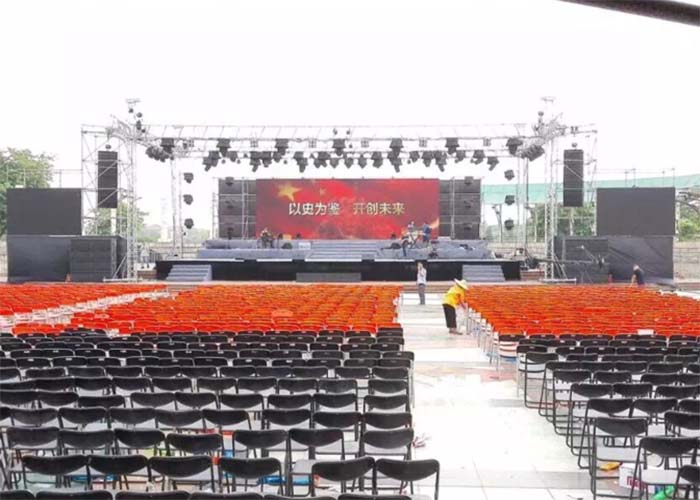

Outdoor LED display is widely used in various outdoor events, including airport information display, stadium advertisement and score board,

concerts and performance stages, highway billboards, shopping malls, residential quarter boards etc.
We provide not only outdoor display screens and modules of different pixels,

but also installation solutions based on our years of experience and participation of all sorts of programs for outdoor LED display.

Specification

Model	ORB-6.67	ORB-8	ORB-10
Pixel Pitch	6.67mm	8mm	10mm
Pixel Density	22478 pixels/m2	15625 pixels/m2	10000 pixels/m2
LED Type	SMD3535	SMD3535	SMD3535
LED Configuration	1R1G1B	1R1G1B	1R1G1B
Cabinet Dimension	640mmx640mm	640mmx640mm	640mmx640mm
Cabinet Resolution	96*96pixels	80*80pixels	64*64pixels
Cabinet Weight	13kg	13kg	13kg
Cabinet Material	die casting aluminum	die casting aluminum	die casting aluminum
Ingress Protection(front/rear)	IP65/IP54	IP65/IP54	IP65/IP54
Brightness	>6500nits	>6500nits	>6500nits
Viewing Angle(H/V)	140°/140°	140°/140°	140°/140°
Driving Method	1/6 Scan	1/5 Scan	1/4 Scan
Frame Refresh	≥ 60Hz	≥ 60Hz	≥ 60Hz
Data Refresh Rate	>1500Hz	>1500Hz	>1500Hz
Gray Scale	16bit	16bit	16bit
Power Consumption(avg.)	300w/m2	275w/m2	200w/m2
Input Voltage	AC 110/220±10%, 50~60Hz	AC 110/220±10%, 50~60Hz	AC 110/220±10%, 50~60Hz
Temperature(operating/storage)	-20~50°C / -40~60°C	-20~50°C / -40~60°C	-20~50°C / -40~60°C
Humidity(operating/storage)	10%~90%RH / 10%~85%RH	10%~90%RH / 10%~85%RH	10%~90%RH / 10%~85%RH
MTBF	≥1000hrs	≥1000hrs	≥1000hrs
Life Span	≥100000hrs	≥100000hrs	≥100000hrs
Pixel Failure	<0.0003	<0.0003	<0.0003
