Slim lightweight Outdoor Rental LED Display for advertising
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 1 Square Meter
- Min. Order:
- 1 Square Meter
- Delivery Time:
- 20 Days
- Transportation:
- Ocean, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | China |
---|---|
Productivity: | 8,000 m²/month |
Supply Ability: | 1,0000 m²/month |
Payment Type: | L/C,T/T,Western Union |
Incoterm: | FOB,CFR,CIF,EXW |
Transportation: | Ocean,Air |
Port: | Shenzhen |

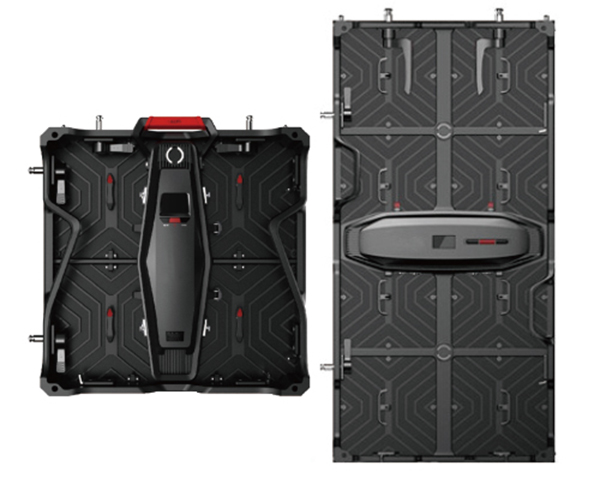

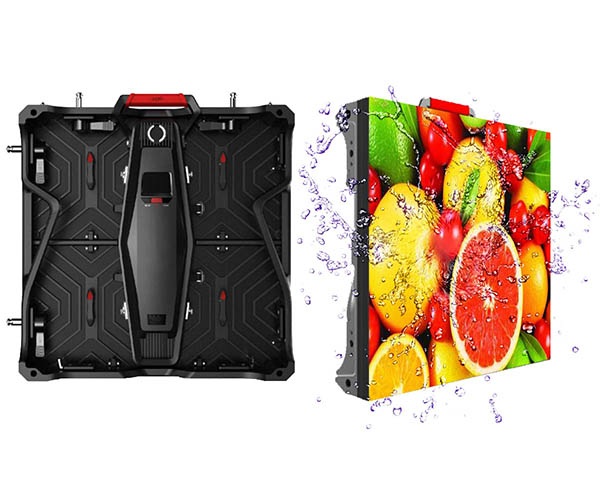

Slim lightweight Outdoor Rental LED Display
Outdoor Rental LED Display has TUV Certificated and Reddot Awarded. It could be curvilinear, concave and convex. It's very slim (only
80 mm thickness) and lightweight (only 9/15 kg/panel), easy for installation without tools.
Feature:
1.Light weight: it can be loaded by one person, quick assembling, quick maintain, reduce. carrying, save costs.
2.Thin cabinet: the thickness is only 80mm, the space of the screen is small , and the entire screen will be more beautiful.
3.Gray Scale, Refresh Rate, Brightness

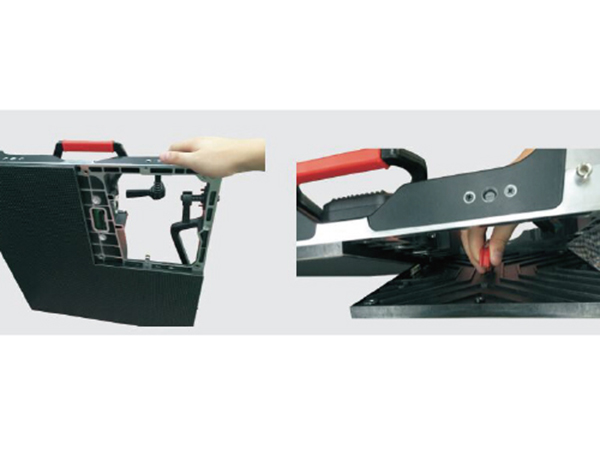

4. Quick dismounting: adopt fast locking structure connected, firm, quick, beautiful. Tools free installation. Cable-less between modules.
5. Low release heat: low noise, low consumption, low cost, no fan design but excellent thermal design and excellent thermal dispersion.

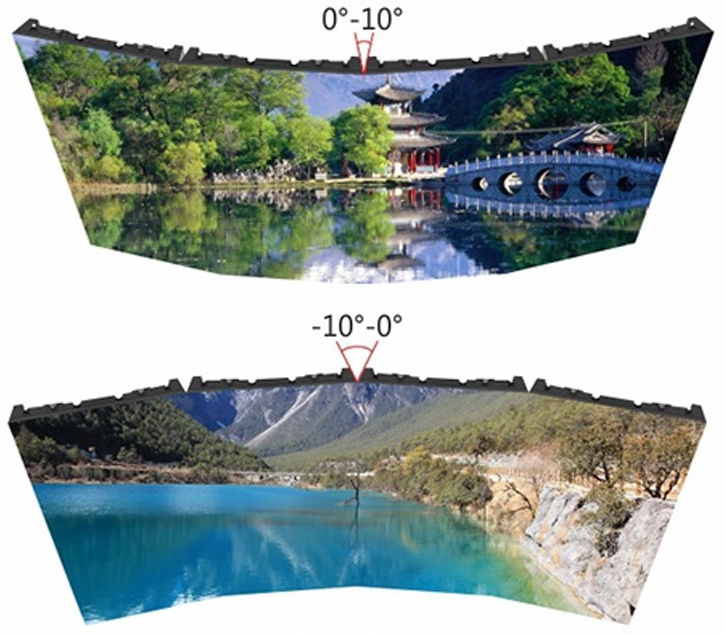

6.Concave and convex setup support: client can asselbly any shape of the led wall display to make different show effect compare with common led display panel.
7.Outdoor Rated:out door waterproof with IP65; suitable brightness adjustable for outdoor day and night; deep black levels, contrast ratio 4000:1.

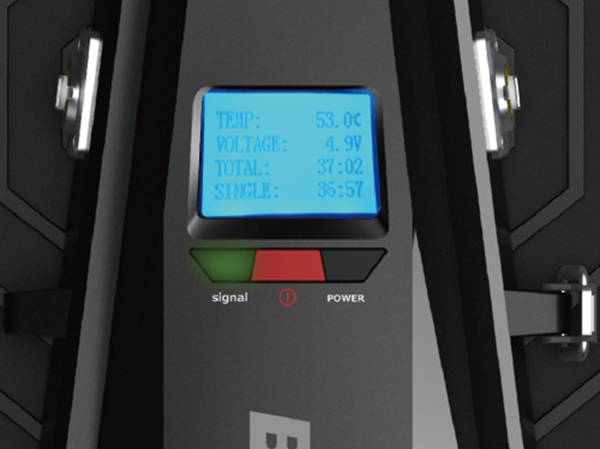

8.LCD monitoring display indicates the status.
Parameter:
BOR-I-3
BOR-I-4
BOR-I-5
BOR-I-6
Physical Pitch
3.91mm
4.81mm
5.95mm
6.25mm
Pixel Configuration
SMD1921
SMD2525
SMD2525
SMD2727
Pixel Density
65,536 pixels/m²
43,264 pixels/m²
28,224
pixels/m²
25,600
pixels/m²
Module Dimensions(W*H)(mm)
250*250/250*500
250*250/250*500
250*250/250*500
250*250/250*500

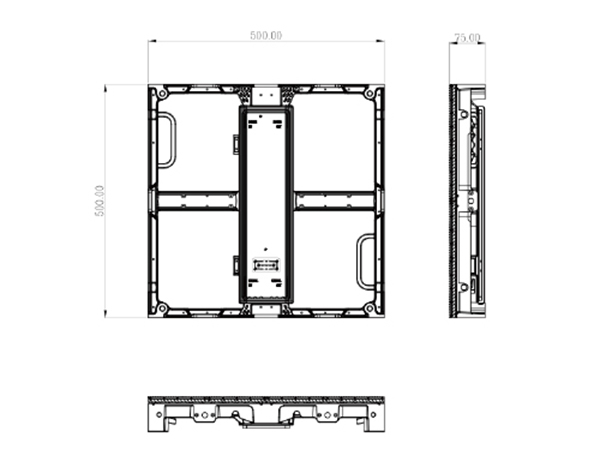

Panel Dimensions(mm)
500*500*80/500*1000*80
500*500*80/500*1000*80
500*500*80/500*1000*80
500*500*80/500*1000*80
NO. of Modules Per Panel (W*H)
2*2
2*2
2*2
2*2
Physical Resolution of Module(W*H)(mm)
64*64/64*128
52*52/52*104
42*42/42*84
40*40/40*80
Physical Resolution of Panel(W*H)
128*128/128*256
104*104/104*208
84*84/84*168
80*80/80*160
Panel Material
Die-casting Aluminum
Die-casting Aluminum
Die-casting Aluminum
Die-casting Aluminum
Single Cabinet Weight
9/15kg/panel
9/15kg/panel
9/15kg/panel
9/15kg/panel
Processing
16bit
16bit
16bit
16bit
Colours
281 trillion
281 trillion
281 trillion
281 trillion
Contrast Ratio
4,000:1
4,000:1
4,000:1
4,000:1
Average Power Consumption
75/150 W/panel
75/150 W/panel
75/150 W/panel
75/150 W/panel
Max Power Comsunption
225/550 W/panel
225/550 W/panel
225/550 W/panel
225/550 W/panel
Operating Temp/Humidity
-20ºC-60ºC/10%-60%
-20ºC-60ºC/10%-60%
-20ºC-60ºC/10%-60%
-20ºC-60ºC/10%-60%
Storage Temp/Humidity
-30ºC-60ºC/10%-60%
-30ºC-60ºC/10%-60%
-30ºC-60ºC/10%-60%
-30ºC-60ºC/10%-60%
Refresh Rate
>1,920 Hz
>1,920 Hz
>1,920 Hz
>1,920 Hz
Brightness
>6,000 nits
>6,000 nits
>6,000 nits
>6,000 nits
Horizontal Viewing Angle
160°
160°
160°
160°
Vertical Viewing Angle
140°
140°
140°
140°
Expected Lifetime
100,000 Hrs
100,000 Hrs
100,000 Hrs
100,000 Hrs
Max Stacking
20/10
20/10
20/10
20/10
Max Hanging
20/10
20/10
20/10
20/10
Servicing
Front/Rear
Front/Rear
Front/Rear
Front/Rear
IP Rating(Front/Rear)
IP 65/IP54
IP 65/IP54
IP 65/IP54
IP 65/IP54
Certification
CCC,CE,ETL,FCC
CCC,CE,ETL,FCC
CCC,CE,ETL,FCC
CCC,CE,ETL,FCC
FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.
Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q8: How can I get technology support?
A:1,We will train in our factory and send video for showing. The training include system use, system maintenance and equipment protection.
