16 bit 1/5 Scan Outdoor Rental LED Display
  • 16 bit 1/5 Scan Outdoor Rental LED Display
  • 16 bit 1/5 Scan Outdoor Rental LED Display
  • 16 bit 1/5 Scan Outdoor Rental LED Display
16 bit 1/5 Scan Outdoor Rental LED Display
16 bit 1/5 Scan Outdoor Rental LED Display
16 bit 1/5 Scan Outdoor Rental LED Display

16 bit 1/5 Scan Outdoor Rental LED Display

Payment Type:
L/C, T/T
Incoterm:
FOB, CFR, CIF, FCA, CPT
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Delivery Time:
30 Days
Transportation:
Ocean, Land, Air
Port:
ShenZhen, GuangZhou
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: CHINA
Productivity: 6000m²/Month
Supply Ability: 6000m²/Month
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,FCA,CPT
Certificate: CCC,FCC,ETL,CE,EMC,ROHS
HS Code: 8528591090
Transportation: Ocean,Land,Air
Port: ShenZhen,GuangZhou
Product Description
Product Description

Outdoor Rental Display not only has a large perspective(both horizontal and vertical viewing angles are 140°),but many advantages such as light, thin, easy to install and disassemble.

Product description

  1. Ultra slim and lightweight : 13kg per Cabinet Weight(640x640mm), greatly saves transportation costs and installation costs.
  2. Rental die-casting aluminum structure: high strength, strong toughness, high precision, not easy to deform.
  3. Seamless splicing : give you a better visual experience.
  4. High color fidelity and uniformity
  5. Quick lock system, fast installation and dismantlement : complete the installation and dismantlement in a few seconds.
  6. High refresh rate : >1500Hz,no scanning line when photographed.
  7. High gray level: 256 RGB each, display 16.7million colors, vivid and perfect video effect.
  8. High resolution: The most apparent features of the new generation of LED display, clearer picture.
  9. High contrast ratio :   make the picture more delicate.
  10. High Ingress protection: IP65/IP54(front/rear).
  11. High Brightness: >6500nits,brightness automatically adjusted, Clearly visible even in direct sunlight.
  12. Wide viewing angle: both horizontal and vertical viewing angles are 140°.
  13. Working status indicator available.
  14. Lower power consumption: Average Power Consumption is 275w/m²,energy saving and environmental protection.

Model

ORB-8

Pixel Pitch

8mm

Pixel Density

15625 pixels/m²

LED Type

SMD3535

LED Configuration

1R1G1B

Cabinet Dimension

640mmx640mm

Cabinet Resolution

80*80pixels

Cabinet Weight

13kg

Cabinet Material

die casting aluminum

Ingress Protection(front/rear)

IP65/IP54

Brightness

>6500nits

Viewing Angle(H/V)

140°/140°

Driving Method

1/5 Scan

Frame Refresh

≥ 60Hz

Data Refresh Rate

>1500Hz

Gray Scale

16bit

Power Consumption(avg.)

275w/m²

Input Voltage

AC 110/220±10%,  50~60Hz

Temperature(operating/storage)

-20~50°C / -40~60°C

Humidity(operating/storage)

10%~90%RH / 10%~85%RH

MTBF

≥1000hrs

Life Span

≥100000hrs

Pixel Failure

<0.0003

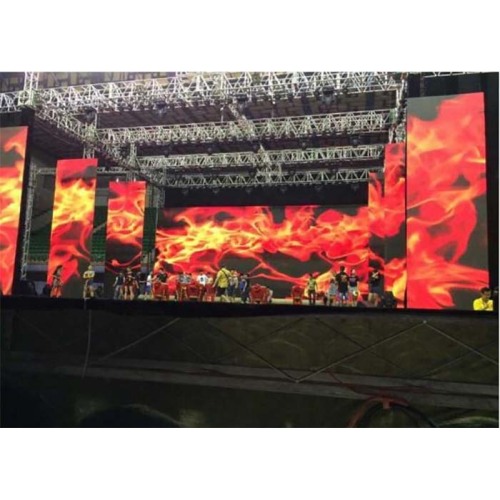

Case picture


high gray scale full color led screen


vivid image rental led video wall




Quality:

  1. Raw material reserves: Spare parts are from well-known manufacturers in the industry.
  2. Full and advanced equipment: The company has a number of the latest imported production equipment, including the latest imported high-speed patch equipment, wave soldering equipment, braiding equipment, outdoor screen high-speed automatic light-inserting equipment, automatic glue filling equipment,etc.; LED display detection equipment, including LED display brightness detection equipment, LED outdoor screen waterproof test equipment, etc.
  3. Strictly quality control: Manufacture strictly according to drawings, Inspection every link,Pre assembled before delivery.



FAQ

Q1. Could I get a sample order of led display?
A: Yes, welcome to your sample order to check the quality.
Q2: Could we print our own logo on led display products?
 A: Of course. Please let us know all the details soon before production.
Q3: Do you offer guarantee for the led display products?
A: Yes, we offer one year warranty for our products.

Q4: Whether to provide technical training (installation training and use training)?

A: Yes, we offer full service, Including pre-sale, sale, after-sales service, you can rest assured to buy.
