IP67 Outdoor LED Mesh Display Video Wall

IP67 Outdoor LED Mesh Display Video Wall

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Square Meter

Min. Order:: 1 Square Meter

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000m²/month
Supply Ability:	6000m²/month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC,FCC,ETL,CE,EMC,RoHS
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

Key benefit: Bako Vision Mesh Curtain LED Display has outstanding features of Lightweight,Super thin,Transparent,Suitable for use both indoors and outdoors,High refresh rate,Easy to set up and tear down.

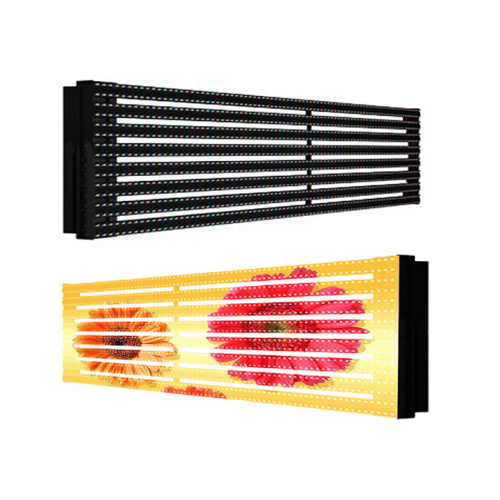

curtain mesh LED display panel wall

Discription:

1.With a design that features excellent lightweight, super thinness and transparency, Bako Vision Mesh Curtain LED Display panels do provide a total solution that can meet the demands of rental business, including concerts, movies, TV sets and outdoor events.

2.This design can save your time in setting up and tearing down, also labor costs and transportation costs. High quality SMDs technology, and unique hardware can provide fantastic video performance.

3.Fully waterproof at the front and rear, these panels are very suitable for both outdoor and indoor use.

4.Mesh Curtain LED Display will become more and more popular in future, and it can be a big help to your business.

Specifications:

	BG-2525	BG-2535	BG-2550	BG-31.25	BG-3150
Physical Pitch	25mm	25mm(H), 35mm(V)	25mm(H), 50mm(V)	31.25mm	31.25mm(H), 50mm(V)
Pixel Configuration	1R1G1B
Pixel Density	1,600pixels/m²	1,120 pixels/m²	800 pixels/m²	1,024 pixels/m²	pixels/m²
Unit Size(W*H)(mm)	≥1500*250
Panel Dimensions(mm)	60*10	60*7	60*5	48*8	48*5
Panel Material	Aluminium
Weight	15kg/m²	10.6kg/m²	8.5kg/m²	15kg/m²	9.6kg/m²
Processing	14-16bit
Colour Number	281 trillion
Contrast Ratio	2000:1
Average Power Consumption	150W/m²	115W/m²	85W/m²	107W/m²	67W/m²
Max. Power Consumption	450W/m²	345W/m²	255W/m²	329W/m²	200W/m²
Operating Temp/Humidity	-30℃-60℃/ 10%-90%
Storage Temp/Humidity	-40℃-85℃/ 10%-95%
Refresh Rate	＞3840Hz
Brightness	＞7500 nits	＞6500 nits	＞5000 nits	＞6500 nits	＞4000 nits
Horizontal Viewing Angle	120°
Vertical Viewing Angle	60°
Expected Lifetime	100,000Hrs
IP Rating	IP67
Servicing	Front/Rear
Certification	CCC,CE,ETL, FCC,TUV

What is Mesh LED Display?

Both outdoor and indoor mesh LED screen versions incorporates the same ease of use, installation, and application. The video mesh PCB is encapsulated in a silicon based gel and the PCB holder and signal integration system is comprised of injection molded plastics to ensure a water repelling property. The outdoor LED video mesh screen is controllable via LED Vision PC Software. With software and control hardware you can control independently multiple outdoor LED Video Mesh Screens with the same or different content simultaneously from one PC.

Mesh led display is a special kind of advertising screens and generally used for building decoration. The screen body is very light; meanwhile, the unit and masks are given special treatment, which ensure easy transportation and installation.

Application of Mesh LED Display

With wide applications, mesh LED display often can be seen in the entertainment places with many people, just like a large TV, and can also be used for companies and private to do any kinds of advertisement.
