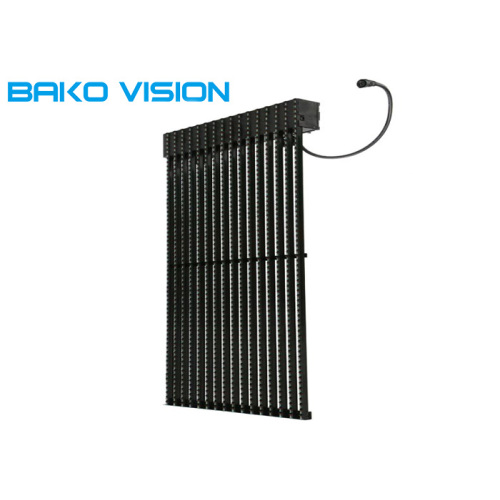

High Transparency Mesh LED Display Panel

High Transparency Mesh LED Display Panel

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Square Meter

Min. Order:: 1 Square Meter

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000m²/month
Supply Ability:	6000m²/month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC,FCC,ETL,CE,EMC,RoHS
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

Mesh Outdoor Curtain LED Display is highly applicable for decorative lighting like building wall, hotel, curtain wall, KTV and night occasions. Can also be used for city's decoration and beautification.Ultra flexible design make it can be curved freely to achieve various creative shapes like arch, cube, circle, wave,etc and customized size available, black or transparent cover in option.It has high permeability does not affect the lighting and does not affect the ventilation.The color of led,pixel pitch, model and size can be customized.16bit gray scale ensure good color saturation.

BOC Series

High Transparency, High Brightness, Outdoor Curtain LED Display

Ultra lightweight and slim

High brightness for outdoor fixed installation High transparency

Lower Power Consumption

Only 50% power consumption comparing to conventional displays

Special LED selected and high efficiency power supply selected

High Protection Level

IP67 for whole screen, complete waterproof for various weather conditions

Screen life time is increased significantly

Exceptionally Lightweight and Slim

10-18 kg/m2 gross weight

Easy to install and save installation space

Fast Installation and Easy Maintenance

Both front and rear accessible for maintenance

Steel frame is canceled during installation

High Transparency and High Brightness

20-80% transparency rate, see through, suitable for glass wall mounting

>6500 nits brightness, for all outdoor environment Vivid colors

mesh led display video wall

Specifications:

	BOC-2535
Pixel Pitch(mm)	25(H),35(V)
Pixel Configuration	1R1G1B
Pixel Density	1120pixels/m²
Unit Size(W*H)(mm)	≥1500*250
Physical Resolution of Unit ( H * V)	65*7
Panel Material	Aluminium
Weight	10.6kg/m²
Processing	16bit
Colour Number	281trillion
Contrast Ratio	2000:1
Avg. Power Consumption	115W/m²
Max. Power Consumption	345W/m²
Brightness	≥6500nit
Refresh Rate	＞3840Hz
Horizontal Viewing Angle	160°
Vertical Viewing Angle	140°
Life Span	100,000hours
Maintenance Method	Front/Rear
IP Rating(Front/Rear)	IP67
Temperature(Operating/Storage)	-30~60℃/-40~85℃
