Full Color Indoor LED Display Small Pitch

Full Color Indoor LED Display Small Pitch

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000m²/Month
Supply Ability:	6000m²/Month
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC,FCC,ETL,CE,EMC,RoHS
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

Application:

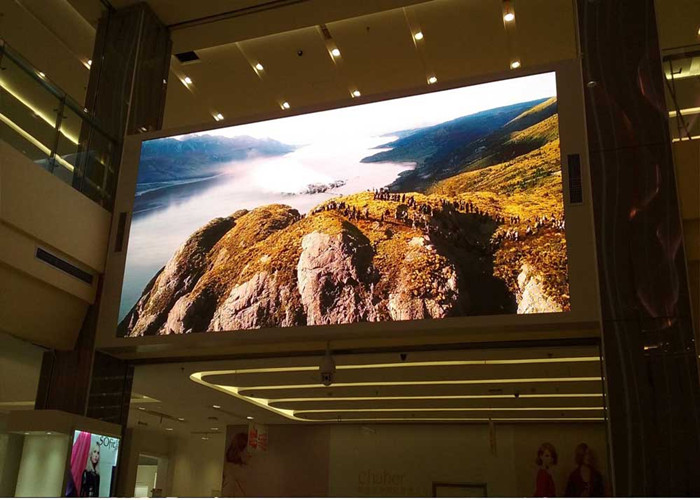

Indoor fixed led display prevails in many Indoor places.

With its brilliant video quality, HD image and low power consumption, it always as main background for various stage shows, meeting room, LED Studio screen, etc.

Indoor Small Pitch Led Screen

Seamless connection: Our special connector design makes it easy to install, reducing gaps between modules..

The latest shockproof technology brings the Indoor Small Pitch Led Screen a more stable cabinet and longer life span.

The designed with aluminium die-casting technology making it possible to adapt all kinds of weather.

Customized design: According to customers` requirements, our product can be designed with different shapes.

Cabinet locking system can connect cabinets quickly and easily, making seamless installation available.

Physical Pitch	1.25mm
Pixel Configuration	SMD 0909
Pixel Density	640,000pixels/m² 96,000pixels/panel
Module Dimensions (W × H) (mm)	200 × 300
Panel Dimensions (mm)	400 × 300
NO .of Modules Per Panel (W × H)	2 × 1
Physical Resolution of Module (W × H)	160 × 240
Physical Resolution of Panel (W × H)	320 × 240
Panel Material	die-casting
Single Cabinet Weight	4.6 kg/pane
Processing	16 bit
Colors	281 trillion
Contrast Ratio	4,000 :1
Average Power Consumption	220 w/m²
Max Power Consumption	800 w/m²
Driving Method	1/30Scan
Brightness	>800 nit
Refresh Rate	≥1,500 Hz
Horizontal Viewing Angle	140°
Vertical Viewing angle	140°
Expected Lifetime	≥50,000Hour
Operating Temp/Humidity	-20°C - 50 °C / 10% - 90
Storage Temp/humidity	-40 °C - 60°C / 10% - 85%
Max Stacking	20 panel
Max Hanging	16 panel
Servicing	Front / Back
IP Rating (Front/Rear)	IP 30
Certification	CCC,FCC,ETL,CE

Q1: How to choose a proper led screen?
A: Three questions you need to think when you choose a led screen by yourself.
1. Will you use it indoor or outdoor?
2. Is it for rental use(need to be moved from one place to another place very often)

or for fixed installation(to be installed in one place forever)?
3. what is the approximate size of the led screen you would like to purchase?

Q2: Which pixel pitch should you choose?
A:There are many different pixel pitch for you to choose.
There is a roughly principle: The screen with small pixel(1.667mm-10mm) usually used for indoor places.

The display with big pixel pitch (10mm-30mm) used for outdoor environment.

Q3: Which control system should I choose?
A:There is both synchronous and asynchronous control system on the market of LED Display. For the big size led screen(usually more than 20sqm),

it is suitable to use synchronous control system.

For those displays which below 20sqm, it's up to you to use synchronous and asynchronous.

But the refresh rate of asynchronous control system is much lower than synchronous control system.
