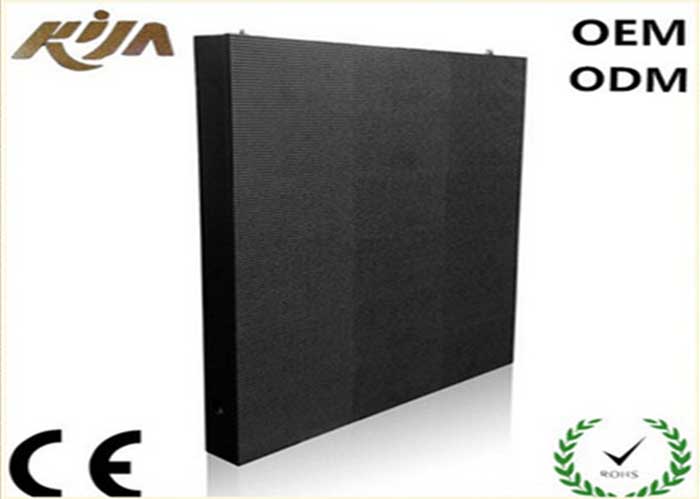

High Grayscale Full Color Wirelss LED Display

High Grayscale Full Color Wirelss LED Display

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000m²/Month
Supply Ability:	6000m²/Month
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC,FCC,ETL,CE,EMC,RoHS
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

Features:

The picture presented by the product is vivid due to the high contrast. It is achieved by using black LED lights.

Adopted NOVA control system to improve the High Grayscale Wireless LED Diaplay refresh rate so that there is no scanning line when shooting.

The quick lock design makes installation and dis-assembly convenient and easy to operate.

The new structure design makes the High Grayscale Wireless LED Diaplay installation flexible, thus meeting various installation requirements.

Light weight and low power consumption greatly reduce labor costs, operating costs and transportation costs.

A good heat dissipation system makes its performance more stable and better protect the product.

The product's noiseless design makes it better served in offices and conference rooms.

Wireless Indoor Fixed Screen

Physical Pitch	1.92mm
Pixel Configuration	SMD1010
Pixel Density	10,000pixels/m² 12,288pixels/panel
Module Dimensions (W × H) (mm)	200 × 300
Panel Dimensions (mm)	400 × 300
NO .of Modules Per Panel (W × H)	2 × 1
Physical Resolution of Module (W × H)	208 × 156
Physical Resolution of Panel (W × H)	208 × 156
Panel Material	die-casting
Single Cabinet Weight	4.6 kg/pane
Processing	16 bit
Colors	281 trillion
Contrast Ratio	4,000 :1
Average Power Consumption	220 w/m²
Max Power Consumption	800 w/m²
Driving Method	1/26Scan
Brightness	>800 nit
Refresh Rate	≥1,500 Hz
Horizontal Viewing Angle	140°
Vertical Viewing angle	140°
Expected Lifetime	≥50,000Hour
Operating Temp/Humidity	-20°C - 50 °C / 10% - 90
Storage Temp/humidity	-40 °C - 60°C / 10% - 85%
Max Stacking	20 panel
Max Hanging	16 panel
Servicing	Front / Back
IP Rating (Front/Rear)	IP 30
Certification	CCC, CE, ETL, FC
