Indoor Rental LED Display Video Wall Screen

Indoor Rental LED Display Video Wall Screen

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000m²/Month
Supply Ability:	6000m²/Month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC FCC ETL CE EMC RoHS
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

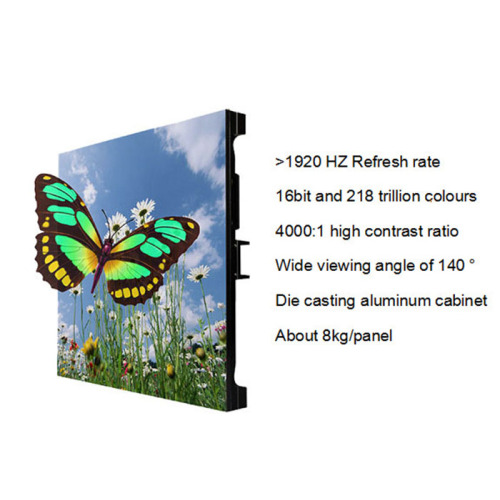

Product Description

Features&Advantages

1. Seamless connection and lightweight cabinet
2. High color saturation, high contrast ratio for high quality image display.
3. High gray scale and high refresh, is exquisite and realistic for the picture.
4. Special design for the mask to realize higher contrast and larger viewing angle.
4. The panel can maintenance in front as well as back,for easier to solve the problem meanwhile replace the power and receiving card.
6. Pretty heat dissipation,low consumption.
7. Option of different cabinet size based on the module size.
8. Support a variety of external signal access with Video processor.

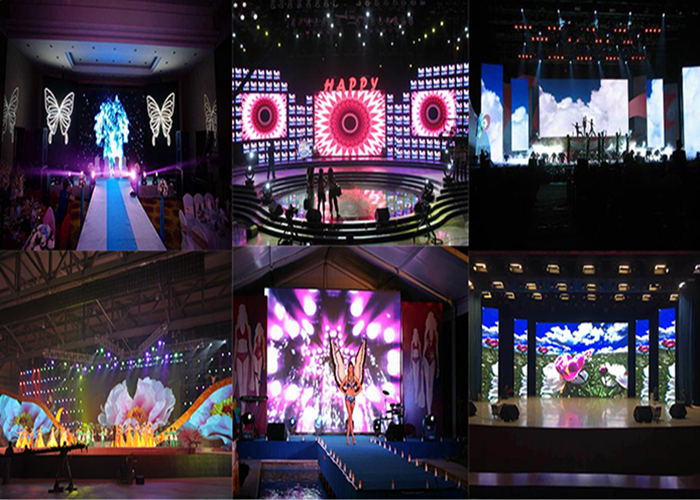

9. Approved for controlling the place(stage,shopping malls,entertainment venue ect), time(all day or just during the activity,live or replay), formats(such as images,text,video and so on) about the LED Display to achieve your desired effect.

Parameter list

Model	BIR - I-2	BIR - I-4
Pixel Pitch	2.97mm	4.81mm
Pixel Density	112,896px/m²	43,264px/m²
LED Type	SMD2121	SMD21020
LED Configuration	1R1G1B	1R1G1B
Module Dimension	250250/250500	250250/ 250500
Cabinet Dimension	500500/5001000	500500/ 5001000
Cabinet Resolution	168168/168336	104104/ 104208
Cabinet Weight	8/14kg/panel	8/14kg/panel
Cabinet Material	die-casting	die-casting
Ingress Protection(front/rear)	IP40/IP21	IP40/IP21
Brightness	900-1200nits	900-1200nits
Contrast ratio	4000:1	4000:1
Processing	14-16bit	14-16bit
Colours	281 trillion	281 trillion
Viewing Angle(H/V)	140°/140°	140°/140°
Power Consumption(avg.)	60/120w/m²	60/120w/m²
Power Consumption(max.)	110/400w/m²	110/400w/m²
Frame Refresh	≥ 60Hz	≥ 60Hz
Data Refresh Rate	≥ 1920Hz	≥ 1920Hz
Power Supply	AC 110/220±10% 50~60Hz	AC 110/220±10% 50~60Hz
Temperature (operating/storage)	-10~60°C -30~60°C	-10~60°C -30~60°C
Humidity(operating/storage)	10%~90%RH 10%~85%RH	10%~90%RH 10%~85%RH
MTBF	≥1000 Hours	≥1000 Hours
Life Span	100,000 Hours	100,000 Hours
Service	Front/Rear	Front/Rear
Certification	CCC,TUV-CE,ETL	CCC,TUV-CE,ETL
