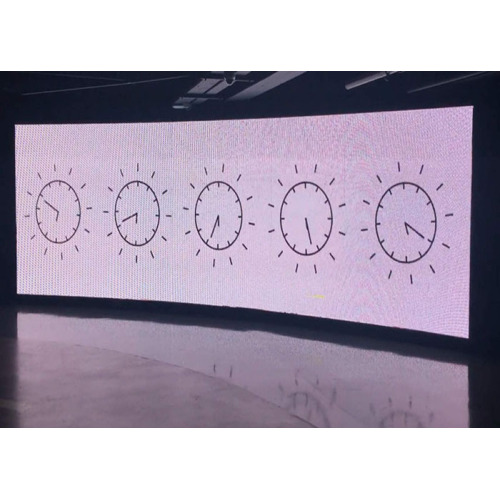

P2.97 High Gray scale Indoor LED Display
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF, FCA, CPT
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land, Air
- Port:
- ShenZhen, GuangZhou
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | CHINA |
---|---|
Productivity: | 6000m²/Month |
Supply Ability: | 6000m²/Month |
Payment Type: | L/C,T/T |
Incoterm: | FOB,CFR,CIF,FCA,CPT |
Certificate: | CCC,FCC,ETL,CE,EMC,ROHS |
HS Code: | 8528591090 |
Transportation: | Ocean,Land,Air |
Port: | ShenZhen,GuangZhou |
In March 2016, BAKO VISION's 6th-generation Stage Rental Display, the [Diamond" series, marked the rise of the LED Display from design to functional design to a new level.
Products Advantages
- Rock-solid, diamond-like, ultra-high precision and rigidity, thousands of square meters are not deformed.
- The module has front and rear maintenance channels to ensure maintenance in just a few seconds in demanding applications.
- The industry's first no-line design, no power line, no cable design between the module and the box, higher anti-interference ability, more flexibility.
- Double backup of signals to ensure that large-scale rental applications are foolproof.
- With detection button, you can quickly check the working status of the display.
- Truly seamless design and multi-angle splicing, so can meet the different request of the customers according the application environment.
- Support various network access .
- High resolution,clear and non-flash screen image.
- High gray scale,so have brighter colors.
- Lower power Consumption,average is 162W/m².
Application field
Widely used in stage rental, singing and dancing events, various conferences, exhibitions, stadiums, theaters, auditoriums, lecture halls, multi-purpose halls, conference rooms, interpretation halls, di bars, nightclubs, high-end entertainment discs, etc.
Technical Parameter
Pixel Pitch/mm |
2.97 |
Led specification |
SMD2121 |
Pixel Density/dots/m² |
112896 |
Module Dimension/mm |
250X250 |
Viewing Angle |
160°(horz.)/ 140° (vert.) |
Brightness/cd/m² |
900 ~1100 |
Refresh rate Hz/S |
≥1920 |
Gray scale/bit |
14~16 |
Max Power Consumption/(w/m²) |
484 |
Avg.Power Consumption/(w/m²) |
162 |
Operating Temperature(℃ ) |
-10~40 |
Protection level |
front:IP40/back:IP21 |
