Fast Installation Indoor Fixed LED Display

Fast Installation Indoor Fixed LED Display

Get Latest Price

Payment Type:: L/C, T/T, D/P

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000m²/month
Supply Ability:	6000m²/month
Payment Type:	L/C,T/T,D/P
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC,CE,ETL,FCC,EMC,Rohs
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

Fine Pitch LED Display delivering true-to-life images and videos with high precision pixel pitches, bringing a great viewing experience to the audience at a close viewing distance. By providing extraordinary image quality with precise colors, Fine Pitch LED Display creates remarkable visual experiences that keep constant over time.

Application

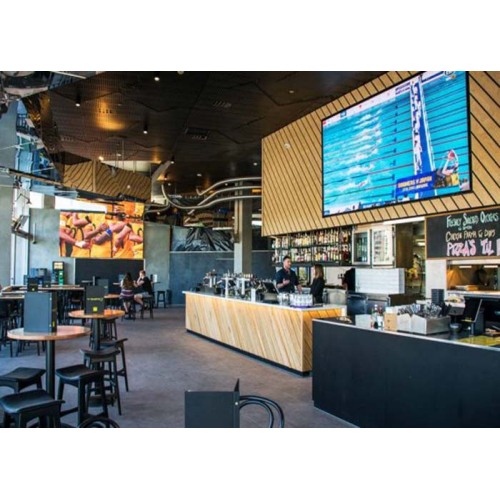

Control Room,Meeting Room,Airport,Fashion Store,TV Studio,Restaurant,Monitor Center,Video Conference,Opera House.

Ultra Fine Pitch,Big Screen

For 16: 9 and 4 : 3 asperct ratio.

Fully access for wall mounting

High color Fidelity and High contrast ratiol

Cable-less connection

slim and light weight

Indoor Fixed LED Display.

Unsurpassed Color Uniformity

Unique color calibration access

Tight bin selection for LED wavelength

Deep black level,contrast ratio 4000 : 1

Indoor Fixed LED Display

Fast Intallation and Easy Mainteance

Slim and light ,easy to install

Wall mounting available

Fully front access

Indoor Fixed LED Display

Parameter

Model	UHD-1.6
Pixel Pitch	1.66 mm
Pixel Density	360,000 pixels/m²
LED Type	SMD1010
LED Configuration	1R1G1B
Cabinet Dimension	400 × 300 mm
Cabinet Resolution	240 × 180
Cabinet Weight	4.6kg
Cabinet Material	die-casting
Ingress Protection (front/rear)	IP40/IP21
Brightness	>800nits
Viewing Angle(H/V)	140°/140°
Driving Method	1/30 Scan
Power Consumption(avg.)	220w/m²
Frame Refresh	≥ 60Hz
Data Refresh Rate	≥ 1500Hz
Gray Scale	16bit
Power Supply	AC 110/220±10% 50~60Hz
Temperature (operating/storage)	-20~50°C -40~60°C
Humidity(operating/storage)	10%~90%RH 10%~85%RH
Life Span	≥50000 Hours
Pixel Failure	<0.0003
Max stacking	20
Max Hanging	20

FAQ

1.What is LED?
LED is sanded for light emitting diode, a kind of semiconductor which is used to give and receive the electronic signal into infrared rays or light, using the characteristics of compound semiconductor. This is used for household appliances, remote controller, electric bulletin board, various kinds of automation appliances.
2. What are pixel pitch, pixel density, LED QTY and pixel configuration?
Pixel pitch is the distance between neighboring pixels.
Pixel density is the quantity of pixels per square meter.
LED qty is the quantity of LED lamps per square.
Pixel configuration is the description of the consistence of a pixel, for instance, we use 1 red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the pixel configuration is 1R1G1B.
3. What are LED type, module size and module resolution?
LED type is the description of LED lamp, for instance, the brand, the shape in physical, the size of the lamp
Module size is the measurement of a module.
Module resolution is the number of pixels per module.
