Seamless Combination Indoor Curved LED Display
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF, FCA, CPT
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Guangzhou
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | China |
---|---|
Productivity: | 6000m²/Month |
Supply Ability: | 6000m² |
Payment Type: | L/C,T/T |
Incoterm: | FOB,CFR,CIF,FCA,CPT |
Certificate: | CCC, FCC, ETL, CE, EMC, ROHS |
HS Code: | 8528591090 |
Transportation: | Ocean,Land,Air |
Port: | Shenzhen,Guangzhou |
Curved Indoor Rental LED Display with Extremely Excellent Thermal Management
Description:
Indoor rental LED display can be widely used for reception hall, fashion store, opera house and other activities.
Feature:
1. The new structure design enables diversified installation to meet the hanging-up and stacking requirements.
2. High contrast rate up to 5000:1 by using SMD2121 black LED.
3. High refresh rate with NOVA control system and high end driver IC,no scanning lines and dots when photographed.
4. Good thermal design, excellent heat dissipation even no fan installation.
5. Magnetic LED module design, speedily and easily mounting, front and rear maintenance are available which is you're your choice.
6. Curve installation compatible . Concave and convex radian design optional , helping your LED display creative and changeable.
Technical Parameter:
Model |
IRD-8 |
IRD-12.5 |
Pixel Pitch |
8mm |
12.5mm |
Pixel Density |
15625 pixels/m² |
6400 pixels/m² |
Cabinet Dimension |
512*769mm |
400*800mm |
Cabinet Resolution |
64*96pixels |
32*64pixels |
Driving Method |
1/8 Scan |
1/4 Scan |
Frame Refresh |
≥60HZ |
≥60HZ |
Data Refresh Rate |
>1500HZ |
>1500HZ |
Gray Scale |
16bit |
16bit |
Power Consumption(avg.) |
300w/m² |
220w/m² |
Input Voltage |
AC 110/220±10%
50-60HZ |
AC 110/220±10%
50-60HZ |
Temperature (operating/storage) |
-20~50℃/-40~60℃ |
-20~50℃/-40~60℃ |
Humidity (operating/storage) |
10%~90%RH/10%~85%RH |
10%~90%RH/10%~85%RH |
Life Span |
≥100000hrs |
≥100000hrs |
Pixel Failure |
<0.0003 |
<0.0003 |
Details:
1. What's the size of your screen?
2. What's your purpose of buying screen?
3. What is the best viewing distance with your project?
4. For fixed installation or rental for stage?
5. What contents do you want to display? words, pictures, or video?
6. How to install? Hanging or wall mounting?
Payment:
1. Before placing your order, please confirm price and other details with us.
2. We accept other payment method. For other payment method, pls contact us.
3. Please make sure you read the entire description and agree to the transaction before buying.
Guarantee:
1. We provide 2 year warranty. If the item is defective, please notify us within 7 days of delivery.
2. All items must be returned in their original condition, in order to qualify for a refund or exchange of goods.
3. The buyer is responsible for all shipping costs incurred.
Thank you for choosing our products! We must try our best to provide you the best quality product as well as the best service for you.
Company Information:

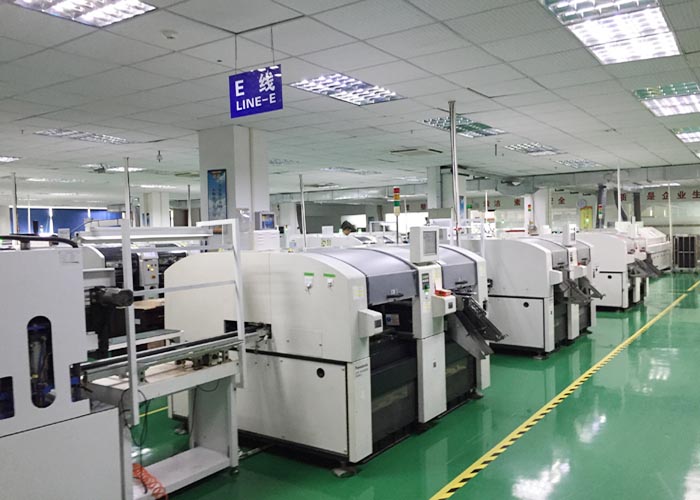

Shenzhen Bako Technology Co.Limited is a full range manufacturer and LED display solutions provider and its ancillary systems worldwide since 2009, headquartered in Shenzhen with a 6,000m2 production state of the art facility to cover international demands. We provide a one-stop shopping in the design, production, and distributions of LED displays and solutions for our customers domestically and globally.
Our products include ranges of indoor, outdoor, fixed, rental and creative LED Solutions for various applications including sports, advertisement, concerts, shopping malls, stadiums, exhibitions or any other indoor and outdoor events that comes to your imagination.
We strictly follows ISO9001:2008 quality management system and passed CE,FCC,UL,ROHS,CCC etc. All of these factors ensure high quality LED products and effective services.
We keep the company culture "Professional, Concentration, Focus" aimed at LED. With the development of led technology and the perfervid competition in the LED field.
