Unsurpassed Color Uniformity Indoor Curved LED Display
  • Unsurpassed Color Uniformity Indoor Curved LED Display
  • Unsurpassed Color Uniformity Indoor Curved LED Display
  • Unsurpassed Color Uniformity Indoor Curved LED Display
  • Unsurpassed Color Uniformity Indoor Curved LED Display
Unsurpassed Color Uniformity Indoor Curved LED Display
Unsurpassed Color Uniformity Indoor Curved LED Display
Unsurpassed Color Uniformity Indoor Curved LED Display
Unsurpassed Color Uniformity Indoor Curved LED Display

Unsurpassed Color Uniformity Indoor Curved LED Display

Payment Type:
L/C, T/T
Incoterm:
FOB, CFR, CIF, FCA, CPT
Min. Order:
1 Bag/Bags
Min. Order:
1 Bag/Bags
Delivery Time:
30 Days
Transportation:
Ocean, Land, Air
Port:
Shenzhen, Guangzhou
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 6000m²/Month
Supply Ability: 6000m²
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,FCA,CPT
Certificate: CCC, FCC, ETL, CE, EMC, ROHS
HS Code: 8528591090
Transportation: Ocean,Land,Air
Port: Shenzhen,Guangzhou
Product Description
Product Description

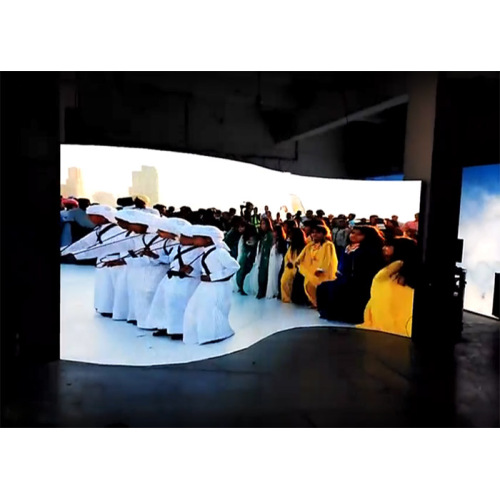

High Contrast Ratio Indoor Curved LED Display


Feature:

1. With power and signal connectors, Neutrik or Seetronic brand, very easy to install and dismantle

2. High contrast rate up to 4000:1 by using black LED

3. The new structure design enables diversified installation to meet the hanging-up and stacking requirements.

4. Due to the light weight and low power consumption, it can reduces the labor cost,operating cost and transportation cost.

5. Good thermal design, excellent heat dissipation even no fan installation.

6. The same cabinet size can be compatible with different pixel pitches such as P3, P4, P5, and P6. If you want to update the product, you only need to change the module.

7. It is low noise, can be installed in office and meeting room.


Service Concept
We believe in taking the initiative, maintaining honesty and trustworthiness, which means we will respond quickly to customer questions and do everything possible to meet customer demands.

Service Content
1. 24-hour hotline service, including counseling and technical guidance.
2. On-line service.
3. Failure maintenance of LED panels.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service.
7. Engineering technical service.

Warranty Period
Each of our LED display products comes with at least two years warranty and a lifetime maintanance

indoor led screen


indoor curved led screen


Model

IRB-3

Pixel Pitch

3mm

Pixel Density

111110 pixels/m²

LED Type

SMD2121

LED Configuration

1R1G1B

Cabinet Dimension

576*576mm

Cabinet Resolution

192*192pixels

Cabinet Weight

8kg

Cabinet Material

aluminum

Ingress Protection(front/rear)

IP40/IP21

Brightness

>1200nits

Viewing Angle(H/V)

140°/140°

Driving Method

1/16 Scan

Frame Refresh

≥ 60Hz

Data Refresh Rate

>1500Hz

Gray Scale

16bit

Power Consumption(avg.)

300w/m²

Input Voltage

AC 110/220±10%,
50~60Hz

Temperature
(operating/storage)

-20~50°C
/ -40~60°C

Humidity
(operating/storage)

10%~90%RH
/10%~85%RH

MTBF

≥1000hrs

Life Span

≥100000hrs

Pixel Failure

<0.0003


led display





Company Information:

Shenzhen Bako Technology Co.Limited is a full range manufacturer and LED display solutions provider and its ancillary systems worldwide since 2009, headquartered in Shenzhen with a 6,000m2 production state of the art facility to cover international demands. We provide a one-stop shopping in the design, production, and distributions of LED displays and solutions for our customers domestically and globally.

Our products include ranges of indoor, outdoor, fixed, rental and creative LED Solutions for various applications including sports, advertisement, concerts, shopping malls, stadiums, exhibitions or any other indoor and outdoor events that comes to your imagination.

We strictly follows ISO9001:2008 quality management system and passed CE,FCC,UL,ROHS,CCC etc. All of these factors ensure high quality LED products and effective services.

We keep the company culture "Professional, Concentration, Focus" aimed at LED. With the development of led technology and the perfervid competition in the LED field.
