Indoor Curved LED Panel
  • Indoor Curved LED Panel
  • Indoor Curved LED Panel
  • Indoor Curved LED Panel
Indoor Curved LED Panel
Indoor Curved LED Panel
Indoor Curved LED Panel

Indoor Curved LED Panel

Payment Type:
L/C, T/T
Incoterm:
FOB, CFR, CIF, FCA, CPT
Min. Order:
1 Bag/Bags
Min. Order:
1 Bag/Bags
Delivery Time:
30 Days
Transportation:
Ocean, Land, Air
Port:
Shenzhen, Guangzhou
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 6000m²/Month
Supply Ability: 6000m²
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,FCA,CPT
Certificate: CCC, FCC, ETL, CE, EMC, ROHS
HS Code: 8528591090
Transportation: Ocean,Land,Air
Port: Shenzhen,Guangzhou
Product Description
Product Description

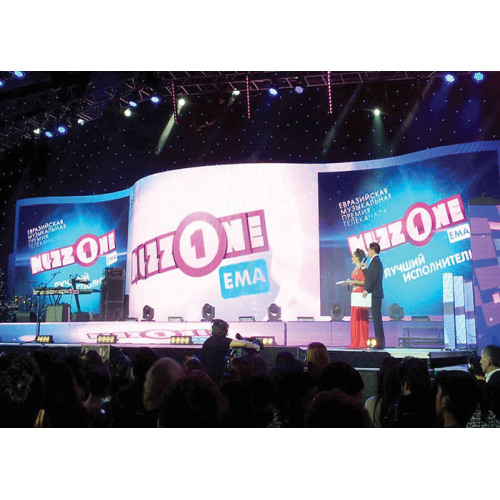

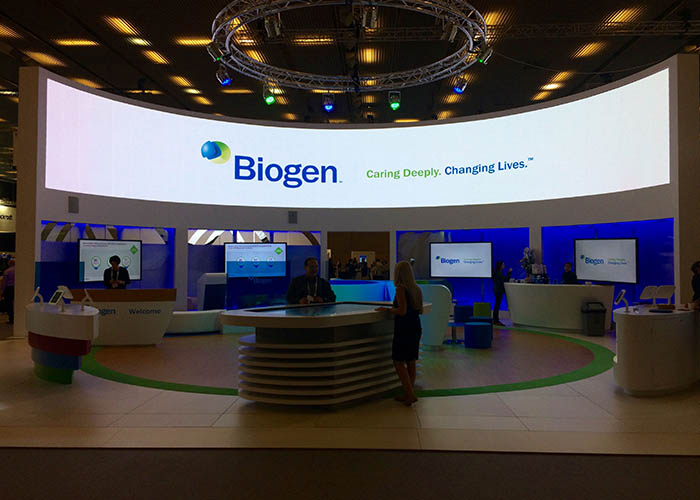

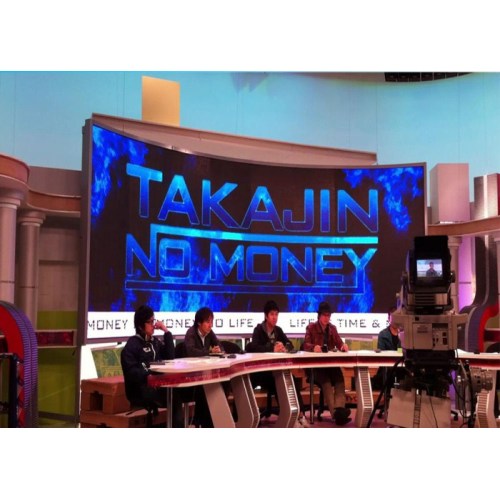

Indoor Curved LED Display can be used in a lot of places where local people often stay.



Available range: school, shopping mall,stadium, commercial centers, government public announcement, commercial streets, and railway stations etc


Product Features


1.Optional of convex shaped,concave shaped and wave shaped screens

2.Both front and back service,easy to installation and maintenance.

3.High brightness:The products adopt super-high brightness LED, so that people can see clearly from a long distance.

4.Wide viewing angle up to140° (Horizontal and Vertical)

5.16bit(highest possible) color processing technology

6.Standard cabinet with seamless joint.

7.The cabinet can be operate in all-weather for its slim design and waterproofing that with a protection level of class IP65 in front and IP54 in back.

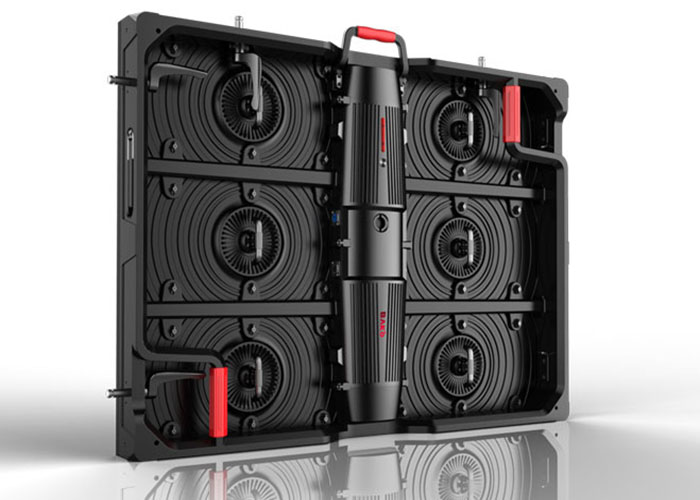

Panel of BOF Series



Indoor Curved LED Panel





Accessory of LED Display

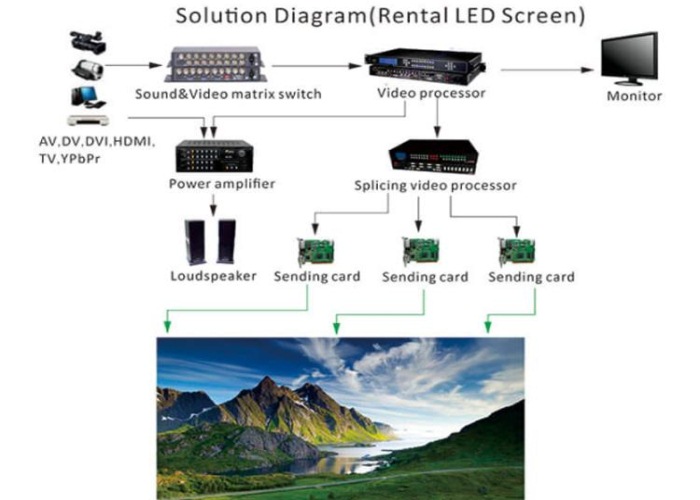

Solution


Indoor Curved LED Display


Parameter


model

IRB-3

Pixel Pitch

3mm

Pixel Density

111110 pixels/m²

LED Type

SMD2121

LED Configuration

1R1G1B

Cabinet Dimension

576*576mm

Cabinet Resolution

192*192pixels

Cabinet Weight

8kg

Cabinet Material

aluminum

Ingress Protection(front/rear)

IP40/IP21

Brightness

>1200nits

Viewing Angle(H/V)

140°/140°

Driving Method

1/16 Scan

Frame Refresh

≥ 60Hz

Data Refresh Rate

>1500Hz

Gray Scale

16bit

Power Consumption(avg.)

300w/m²

Input Voltage

AC 110/220±10%,
50~60Hz

Temperature
(operating/storage)

-20~50°C
/ -40~60°C

Humidity
(operating/storage)

10%~90%RH
/10%~85%RH

MTBF

≥1000hrs

Life Span

≥100000hrs

Pixel Failure

<0.0003
