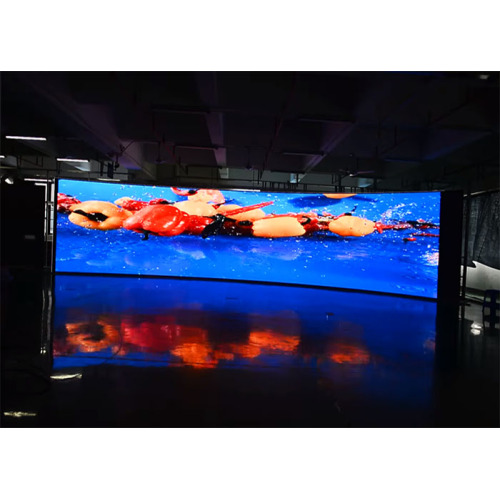

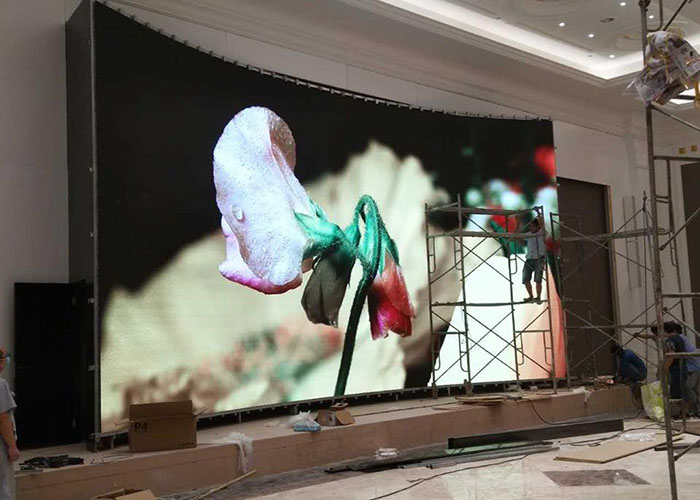

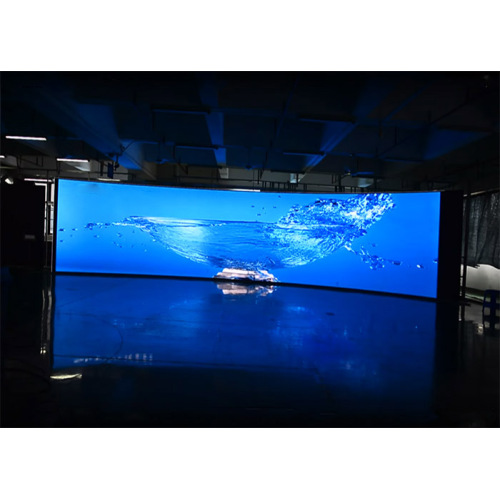

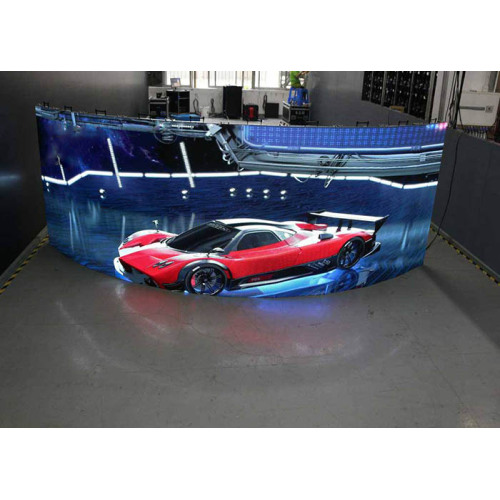

Wide Viewing Angle Indoor Curved LED Display

Wide Viewing Angle Indoor Curved LED Display

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Bag/Bags

Min. Order:: 1 Bag/Bags

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000m²/Month
Supply Ability:	6000m²
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC, FCC, ETL, CE, EMC, ROHS
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

Description:
P5 indoor rental LED display have unique die casting aluminum cabinet structure. Stable, durable and light weight cabinet also make the installation easier.

Feature:
1 Integrated design: power and receiver card integrated in the control panel, no signal cable between the module and the power line, greatly improving the stability and reliability;

2 Stable circuit control technology, simple operation, easy maintenance;

3 Unique die-cast aluminum box structure, stable, durable, lightweight;

4 very "light, thin, dense" feature, in order to provide a greater realization of creative space;

5 Accurate, fast and flexible installation location, can effectively respond to different application areas;

6 Deep gray scale processing technology, high-quality screen refresh, and create fantastic stage effects;

7 Easy maintenance: with power and signal work status self-check function, real-time display each product's power and signal work status, when a product does not display screen, to help you quickly determine the problem quickly and make the appropriate repair measures.

Technical Parameter:

Model	IRB-5
Pixel Pitch	5mm
Pixel Density	40000 pixels/m²
LED Type	SMD2121
LED Configuration	1R1G1B
Cabinet Dimension	480*480mm
Cabinet Resolution	96*96pixels
Cabinet Weight	7kg
Cabinet Material	aluminum
Ingress Protection(front/rear)	IP40/IP21
Brightness	>1200nits
Viewing Angle(H/V)	140°/140°
Driving Method	1/12 Scan
Frame Refresh	≥ 60Hz
Data Refresh Rate	>1500Hz
Gray Scale	16bit
Power Consumption(avg.)	240w/m²
Input Voltage	AC 110/220±10% 50~60Hz
Temperature (operating/storage)	-20~50°C / -40~60°C
Humidity (operating/storage)	10%~90%RH /10%~85%RH
MTBF	≥1000hrs
Life Span	≥100000hrs
Pixel Failure	<0.0003

FAQ:
1, What is the warranty of your led display?
A: We offer 2 years warranty and more than 100000 hours screen life span

2, what is your payment term? How long it takes to delivery?
A: We usually accapt the T/T or L/C. Both of them will at least 30% deposit in advance,and the rest of 70% will paid before delivery. The lead time is usually 20 day.

3, How can you ensure the led display product quality?
A: Before shipment, all the screens have aging test. And then we also have waterproof test and shake test, to ensure transportation safety and normal use of our products.

4, What is your pre-sale and post-sale service?
A: For pre-sale service, we have professional sales team and technical team,who are willing to answer your question within 24 hours.
For post-sale service, we will instruct you how to install, how to use, how to change the broken modules, and we can also send the technicians to your country, in general, our led display will not have a big problem, you can rest assured to buy.

Shipment:

Delivery Method: Flight case: 4-8 unit display Panels are packaged in one case.

Delivery Time: 20-25 Working Days.

Payment Item: T/T, L/C, West Union.

LED DISPLAY FACTORY (1)

Company Information:

Shenzhen Bako Technology Co.Limited is a full range manufacturer and LED display solutions provider and its ancillary systems worldwide since 2009, headquartered in Shenzhen with a 6,000m2 production state of the art facility to cover international demands. We provide a one-stop shopping in the design, production, and distributions of LED displays and solutions for our customers domestically and globally.

Our products include ranges of indoor, outdoor, fixed, rental and creative LED Solutions for various applications including sports, advertisement, concerts, shopping malls, stadiums, exhibitions or any other indoor and outdoor events that comes to your imagination.

We strictly follows ISO9001:2008 quality management system and passed CE,FCC,UL,ROHS,CCC etc. All of these factors ensure high quality LED products and effective services.

We keep the company culture ``Professional, Concentration, Focus`` aimed at LED. With the development of led technology and the perfervid competition in the LED field.
