High Refresh Rate Indoor Curved LED Display
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF, FCA, CPT
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Guangzhou
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | China |
---|---|
Productivity: | 6000m²/Month |
Supply Ability: | 6000m² |
Payment Type: | L/C,T/T |
Incoterm: | FOB,CFR,CIF,FCA,CPT |
Certificate: | CCC, FCC, ETL, CE, EMC, ROHS |
HS Code: | 8528591090 |
Transportation: | Ocean,Land,Air |
Port: | Shenzhen,Guangzhou |
Indoor Curved LED Display also called Full Color LED Display, LED Display Panel. We can provide you high quality Indoor Curved LED Display Screen.
Application:

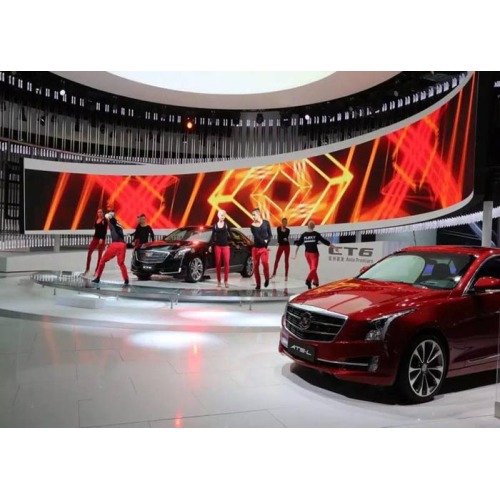

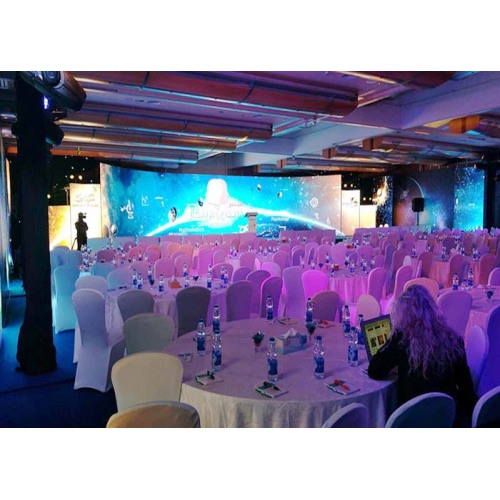

1.stage performance, bar entertainment, ceremonial wedding, conference, exhibition, musical theater and other event rental application
2.TV studio, Monitor room, Control room, Dispatch center, Conference room, Show room etc
Feature:
Die-casting aluminum cabinet, light weight
High refresh rate: over 1500HZ, high gray scale
Professional drive circuit, low voltage, save 15% electricity
High contrast, real image
Fast lock system, seamless connection
Fanless, noiseless
Advantage:
1) It is extremely easy to calculate the area of LED screen.
2) 16 bit color, 111110 gray scale, refresh rate over 1500HZ/S, so the video or images on the LED screen are very vivid and fresh. People who see it will get shocked by this amazing viewing experience.
3) The appearance is very elegant, it looks very high end. Quality is very stable.
4) It is die-casting aluminum cabinet, very strong and precision is very high, tolerance can be controlled in 0.1mm so the surface is very smooth, almost no gap between cabinets.
5) The side locks is spring locks, this is unique among all die-casting aluminum cabinets, especially popular in European market and North American market.
Technical Parameter:
Model |
IRB-3 |
Pixel Pitch |
3mm |
Pixel Density |
111110 pixels/m² |
LED Type |
SMD2121 |
LED Configuration |
1R1G1B |
Cabinet Dimension |
576*576mm |
Cabinet Resolution |
192*192pixels |
Cabinet Weight |
8kg |
Cabinet Material |
aluminum |
Ingress Protection(front/rear) |
IP40/IP21 |
Brightness |
>1200nits |
Viewing Angle(H/V) |
140°/140° |
Driving Method |
1/16 Scan |
Frame Refresh |
≥ 60Hz |
Data Refresh Rate |
>1500Hz |
Gray Scale |
16bit |
Power Consumption(avg.) |
300w/m² |
Input Voltage |
AC 110/220±10%, |
Temperature |
-20~50°C |
Humidity |
10%~90%RH |
MTBF |
≥1000hrs |
Life Span |
≥100000hrs |
Pixel Failure |
<0.0003 |
Services:
1. Your inquiry related to our products or price will be replied in 12hrs.
2. OEM&ODM,any your customized lightings we can help you to design and put into product.
3. Distributoership are offered for your unique design and some our current models.
4. Protection of your sales area,ideas of design and all your private information.
5. Best cost performance and perfect service before and after sales.
Shipment:
Delivery Method: Flight case: 4-8 unit display Panels are packaged in one case.
Delivery Time: 20-25 Working Days.
Payment Item: T/T, L/C, West Union.
Company Information:
Shenzhen Bako Technology Co.Limited is a full range manufacturer and LED display solutions provider and its ancillary systems worldwide since 2009, headquartered in Shenzhen with a 6,000m2 production state of the art facility to cover international demands. We provide a one-stop shopping in the design, production, and distributions of LED displays and solutions for our customers domestically and globally.
Our products include ranges of indoor, outdoor, fixed, rental and creative LED Solutions for various applications including sports, advertisement, concerts, shopping malls, stadiums, exhibitions or any other indoor and outdoor events that comes to your imagination.
We strictly follows ISO9001:2008 quality management system and passed CE,FCC,UL,ROHS,CCC etc. All of these factors ensure high quality LED products and effective services.
We keep the company culture ``Professional, Concentration, Focus`` aimed at LED. With the development of led technology and the perfervid competition in the LED field.
