70% Transparency High Brightness Curtain LED Display

70% Transparency High Brightness Curtain LED Display

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Square Meter

Min. Order:: 1 Square Meter

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000m²/month
Supply Ability:	6000m²/month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC,FCC,ETL,CE,EMC,RoHS
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

Description:

With the development of city construction and commercial economy, the outdoor advertising market increasingly large scale, as the LED display outdoor dynamic advertising carrier, is becoming more and more popular on the market, but the traditional box type LED display due to its defects for manufacturers and customers bring a lot of trouble, and the hollow type Curtain LED Display launch and almost perfectly solve these people's problems.

The weight of the LED screen has become a top priority since it is installed on the exterior walls of the building. Box type structure of the traditional LED display and bearing steel, greatly increase the load-bearing wall, and the Curtain LED Display frame without auxiliary installation, weight is only 40% of the box, and the hollow structure can reduce wind load, reduce the strong winds to the security risks brought at the height of the display screen, very suitable for application large glass wall area project.

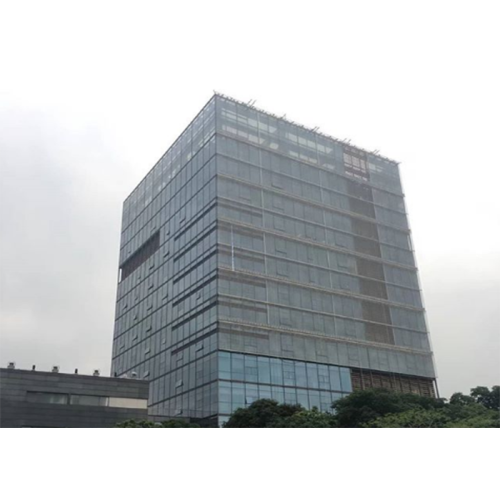

transparent digital curtain screen

Features of the Transparent Mesh Outdoor Curtain LED Display:

1. Fixed Installation and Activity:

Transparent design allows the LED Curtain Display to be mounted on the wall. The Curtain LED Display with IP30 rating has high brightness of 6500nits, thus being suitable for variousn environments

2. Lightweight Structure:

The Curtain LED Display`s cabinet adopts simple and thin aluminium structure with thickness of 90mm. It can meet the requirement in the design of lifting beam.

3. On-site Quick Installation:

By adoption of special link structure, the transparent Curtain LED Display can be assembled and disassembled faster than before.Also it is installed easily and safely.

4. Effective Cost Control:

High-quality display effect enables users to save after-sales cost and time. Unique modular design allows the flexible Curtain Mesh LED Screen to be installed and disassembled fast and conveniently. As an Full Color Advertising LED Screen, it helps save lots of manpower and material resources. The shape of the fixed installation screen is designed in accordance with wall background. The management system for this Outdoor Curtain Mesh LED Display is equipped with backup application program.

Specifications:

	BG-3.75-6.67	BG-3.75-8	BG-5-6.67	BG-5-8
Physical Pitch	3.75*6.67mm	3.75*8mm	5*6.67mm	5*8mm
Pixel Configuration	SMD1921	SMD1921	SMD3528	SMD3528
Pixel Density	39,900 pixels/m²	33,250 pixels/m²	30,000 pixels/m²	25,000 pixels/m²
Module Dimensions(W*H)(mm)	480*320	480*320	480*320	480*320
Panel Dimensions(mm)	1920*640	1920*640	1920*640	1920*640
NO. Of Modules Per Panel(W*H)	4*2	4*2	4*2	4*2
Physical Resolution of Module(W*H)	128*48	128*40	96*48	96*40
Physical Resolution of Panel(W*H)	512*96	512*80	384*96	384*80
Panel Material	Aluminium	Aluminium	Aluminium	Aluminium
Single Cabinet Weight	11kg/m²	10.2kg/m²	10kg/m²	9.5kg/m²
Processing	14-16bit	14-16bit	14-16bit	14-16bit
Colour Number	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	2000:1	2000:1	2000:1	2000:1
Average Power Consumption	207W/m²	201W/m²	209W/m²	203W/m²
Max. Power Consumption	690W/m²	670W/m²	696W/m²	670W/m²
Operating Temp/Humidity	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%
Storage Temp/Humidity	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%
Refresh Rate	＞1920Hz	＞1920Hz	＞1920Hz	＞1920Hz
Brightness	＞5500 nits	＞5500 nits	＞5500 nits	＞5500 nits
Horizontal Viewing Angle	160°	160°	160°	160°
Vertical Viewing Angle	140°	140°	140°	140°
Expected Lifetime	100,000Hrs	100,000Hrs	100,000Hrs	100,000Hrs
IP Rating	IP30	IP30	IP30	IP30
Servicing	Rear	Rear	Rear	Rear
Certification	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC

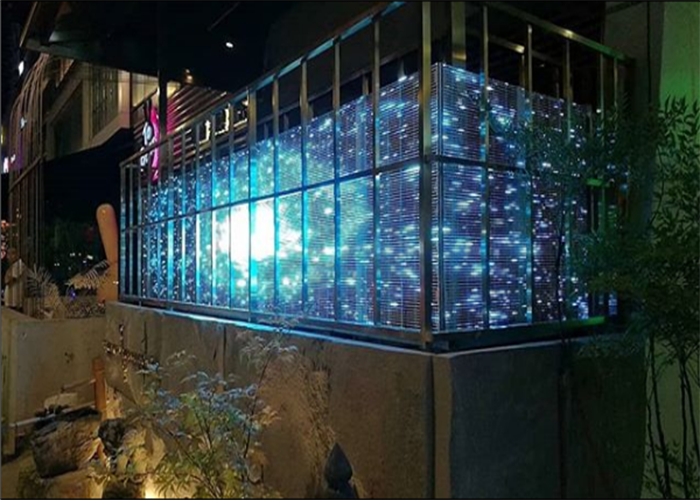

curtain LED display

	BG-7.5-8	BG-10	BG-16	BG-20
Physical Pitch	7.5*8mm	10*10mm	16*16mm	20*20mm
Pixel Configuration	SMD3528	SMD3528	SMD3528	SMD3528
Pixel Density	16,625pixels/m²	10,000 pixels/m²	3,906 pixels/m²	2,500 pixels/m²
Module Dimensions(W*H)(mm)	480*320	480*320	480*320	480*320
Panel Dimensions(mm)	1920*640	1920*640	1920*640	1920*640
NO. Of Modules Per Panel(W*H)	4*2	4*2	4*2	4*2
Physical Resolution of Module(W*H)	64*40	48*32	30*20	24*16
Physical Resolution of Panel(W*H)	256*80	192*64	120*40	96*32
Panel Material	Aluminium	Aluminium	Aluminium	Aluminium
Single Cabinet Weight	9kg/m²	8kg/m²	7.2kg/m²	6.5kg/m²
Processing	14-16bit	14-16bit	14-16bit	14-16bit
Colour Number	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	2000:1	2000:1	2000:1	2000:1
Average Power Consumption	204W/m²	195W/m²	218W/m²	218W/m²
Max. Power Consumption	670W/m²	650W/m²	650W/m²	650W/m²
Operating Temp/Humidity	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%
Storage Temp/Humidity	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%
Refresh Rate	＞1920Hz	＞1920Hz	＞1920Hz	＞1920Hz
Brightness	＞5500 nits	＞5500 nits	＞5500 nits	＞5500 nits
Horizontal Viewing Angle	160°	160°	160°	160°
Vertical Viewing Angle	140°	140°	140°	140°
Expected Lifetime	100,000Hrs	100,000Hrs	100,000Hrs	100,000Hrs
IP Rating	IP30	IP30	IP30	IP30
Servicing	Rear	Rear	Rear	Rear
Certification	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC

According to statistics, in the case of LED display failure, 60% is caused by insufficient heat dissipation, and the LED shutter structure of the light bar screen improves the heat radiation performance and reduces the probability of failure. And, with the box type screen from behind the demolition, often reserve a place in front of the screen to let one person to remove fault light,but if choose Curtain LED Didsplay there is no need to build maintenance channel, maintenance more convenient.

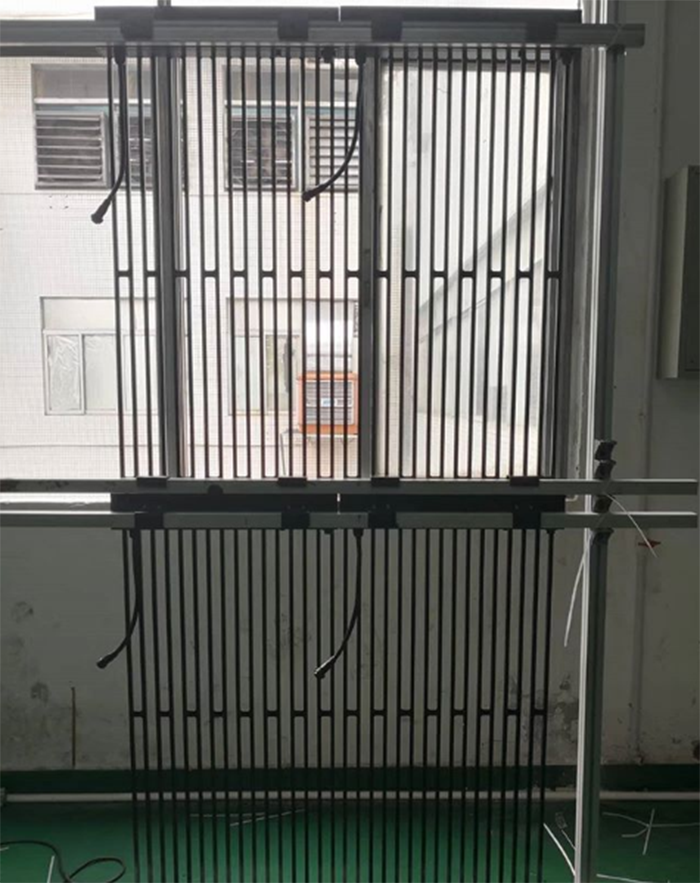

mesh LED video screen
