High Brightness Lightweight Curtain Mesh LED Display

High Brightness Lightweight Curtain Mesh LED Display

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Square Meter

Min. Order:: 1 Square Meter

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000m²/month
Supply Ability:	6000m²/month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC,FCC,ETL,CE,EMC,RoHS
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

Discription:

With a design that features excellent lightweight, super thinness and transparency, Bako Vision Mesh Curtain LED Display panels do provide a total solution that can meet the demands of rental business, including concerts, movies, TV sets and outdoor events.This design can save your time in setting up and tearing down, also labor costs and transportation costs. High quality SMDs technology, and unique hardware can provide fantastic video performance.Fully waterproof at the front and rear, these panels are very suitable for both outdoor and indoor use.Mesh Curtain LED Display will become more and more popular in future, and it can be a big help to your business.

LED mesh video panel

Feature of Mesh Curtain LED display

1. Easy setup and tear-down-----Modular design facilitates quick installation and disassemble. Every module includes interlocks, external signal and power sockets. Fully serviceable from front to back;

2. High reliability with the data hot backup, to avoid any communication risk during the show;

3. High refresh rate------Refresh rate up to 3000Hz, completely flickering-free for live video;

4. Super brightness and color uniformity------Brightness variance within +/-2.5%, outstanding color uniformity and reproduction;

5. Wide viewing angle------Both indoor and outdoor is horizontally 160°and vertically 140°

6. Lighter and thinner cabinet, save transportation cost;

7. Real-time synchronous dynamic information;

8. Intelligent environment controller can adjust screen brightness according to environment brightness;

9. Bako vision LED display solution provide remote control and management, A monitoring center can achieve control of multiple LED advertising display screen.

Specifications:

	BG-7.5-8	BG-10	BG-16	BG-20
Physical Pitch	7.5*8mm	10*10mm	16*16mm	20*20mm
Pixel Configuration	SMD3528	SMD3528	SMD3528	SMD3528
Pixel Density	16,625pixels/m²	10,000 pixels/m²	3,906 pixels/m²	2,500 pixels/m²
Module Dimensions(W*H)(mm)	480*320	480*320	480*320	480*320
Panel Dimensions(mm)	1920*640	1920*640	1920*640	1920*640
NO. Of Modules Per Panel(W*H)	4*2	4*2	4*2	4*2
Physical Resolution of Module(W*H)	64*40	48*32	30*20	24*16
Physical Resolution of Panel(W*H)	256*80	192*64	120*40	96*32
Panel Material	Aluminium	Aluminium	Aluminium	Aluminium
Single Cabinet Weight	9kg/m²	8kg/m²	7.2kg/m²	6.5kg/m²
Processing	14-16bit	14-16bit	14-16bit	14-16bit
Colour Number	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	2000:1	2000:1	2000:1	2000:1
Average Power Consumption	204W/m²	195W/m²	218W/m²	218W/m²
Max. Power Consumption	670W/m²	650W/m²	650W/m²	650W/m²
Operating Temp/Humidity	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%
Storage Temp/Humidity	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%
Refresh Rate	＞1920Hz	＞1920Hz	＞1920Hz	＞1920Hz
Brightness	＞5500 nits	＞5500 nits	＞5500 nits	＞5500 nits
Horizontal Viewing Angle	160°	160°	160°	160°
Vertical Viewing Angle	140°	140°	140°	140°
Expected Lifetime	100,000Hrs	100,000Hrs	100,000Hrs	100,000Hrs
IP Rating	IP30	IP30	IP30	IP30
Servicing	Rear	Rear	Rear	Rear
Certification	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC

LED mesh transparent

	BG-3.75-6.67	BG-3.75-8	BG-5-6.67	BG-5-8
Physical Pitch	3.75*6.67mm	3.75*8mm	5*6.67mm	5*8mm
Pixel Configuration	SMD1921	SMD1921	SMD3528	SMD3528
Pixel Density	39,900 pixels/m²	33,250 pixels/m²	30,000 pixels/m²	25,000 pixels/m²
Module Dimensions(W*H)(mm)	480*320	480*320	480*320	480*320
Panel Dimensions(mm)	1920*640	1920*640	1920*640	1920*640
NO. Of Modules Per Panel(W*H)	4*2	4*2	4*2	4*2
Physical Resolution of Module(W*H)	128*48	128*40	96*48	96*40
Physical Resolution of Panel(W*H)	512*96	512*80	384*96	384*80
Panel Material	Aluminium	Aluminium	Aluminium	Aluminium
Single Cabinet Weight	11kg/m²	10.2kg/m²	10kg/m²	9.5kg/m²
Processing	14-16bit	14-16bit	14-16bit	14-16bit
Colour Number	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	2000:1	2000:1	2000:1	2000:1
Average Power Consumption	207W/m²	201W/m²	209W/m²	203W/m²
Max. Power Consumption	690W/m²	670W/m²	696W/m²	670W/m²
Operating Temp/Humidity	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%
Storage Temp/Humidity	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%
Refresh Rate	＞1920Hz	＞1920Hz	＞1920Hz	＞1920Hz
Brightness	＞5500 nits	＞5500 nits	＞5500 nits	＞5500 nits
Horizontal Viewing Angle	160°	160°	160°	160°
Vertical Viewing Angle	140°	140°	140°	140°
Expected Lifetime	100,000Hrs	100,000Hrs	100,000Hrs	100,000Hrs
IP Rating	IP30	IP30	IP30	IP30
Servicing	Rear	Rear	Rear	Rear
Certification	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC

Application of Mesh LED Display

With wide applications, mesh LED display often can be seen in the entertainment places with many people, just like a large TV, and can also be used for companies and private to do any kinds of advertisement.

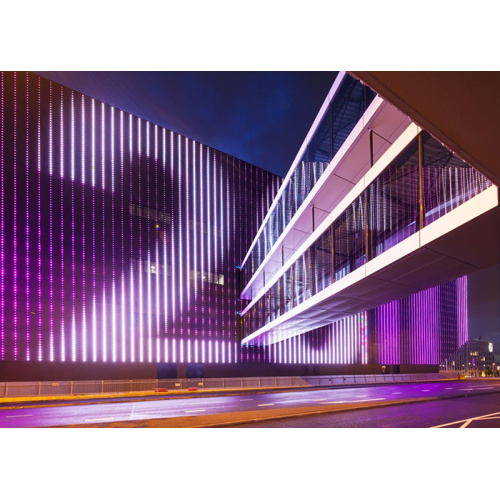

LED mesh screen wall
