Wall Facade Mesh LED Screen Display

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Square Meter

Min. Order:: 1 Square Meter

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000m²/month
Supply Ability:	6000m²/month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC,FCC,ETL,CE,EMC,RoHS
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

The LED technology is becoming more and more mature and the cost declines significantly, which greatly promotes the application of the LED display undoubtedly. As the biggest application area, the LED full color display in present advertisement media industry open the upgrade prelude of traditional print ads. Bako Vision LED display screen with the mesh unit design can be tailor-made at any size. With the advantages of impressive versatility, user-friendly and extraordinary performance, Curtain LED Screen series is ideal for pubs, discos, stages, shopping centers or other applications where comparatively abstract image is required.

curtain led screen

Slim, Light Weight and Quiet

35mm-45mm thickness, 14kg per square meter
Available to attach onto glass wall directly

High Transparency and Concise
60-80% transparency rate among different pitches
Variable brightness options for day and night environment
Hidden cable design looks clean and concise

Special Emitting Angle
Lighting from tube side emitting
Brightness and color are penetrated via the glass effect
Embedded-In SMD technology, avoid to be knocked off during transportation and installation

Specifications:

	BG-3.75-6.67	BG-3.75-8	BG-5-6.67	BG-5-8
Physical Pitch	3.75*6.67mm	3.75*8mm	5*6.67mm	5*8mm
Pixel Configuration	SMD1921	SMD1921	SMD3528	SMD3528
Pixel Density	39,900 pixels/m²	33,250 pixels/m²	30,000 pixels/m²	25,000 pixels/m²
Module Dimensions(W*H)(mm)	480*320	480*320	480*320	480*320
Panel Dimensions(mm)	1920*640	1920*640	1920*640	1920*640
NO. Of Modules Per Panel(W*H)	4*2	4*2	4*2	4*2
Physical Resolution of Module(W*H)	128*48	128*40	96*48	96*40
Physical Resolution of Panel(W*H)	512*96	512*80	384*96	384*80
Panel Material	Aluminium	Aluminium	Aluminium	Aluminium
Single Cabinet Weight	11kg/m²	10.2kg/m²	10kg/m²	9.5kg/m²
Processing	14-16bit	14-16bit	14-16bit	14-16bit
Colour Number	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	2000:1	2000:1	2000:1	2000:1
Average Power Consumption	207W/m²	201W/m²	209W/m²	203W/m²
Max. Power Consumption	690W/m²	670W/m²	696W/m²	670W/m²
Operating Temp/Humidity	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%
Storage Temp/Humidity	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%
Refresh Rate	＞1920Hz	＞1920Hz	＞1920Hz	＞1920Hz
Brightness	＞5500 nits	＞5500 nits	＞5500 nits	＞5500 nits
Horizontal Viewing Angle	160°	160°	160°	160°
Vertical Viewing Angle	140°	140°	140°	140°
Expected Lifetime	100,000Hrs	100,000Hrs	100,000Hrs	100,000Hrs
IP Rating	IP30	IP30	IP30	IP30
Servicing	Rear	Rear	Rear	Rear
Certification	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC

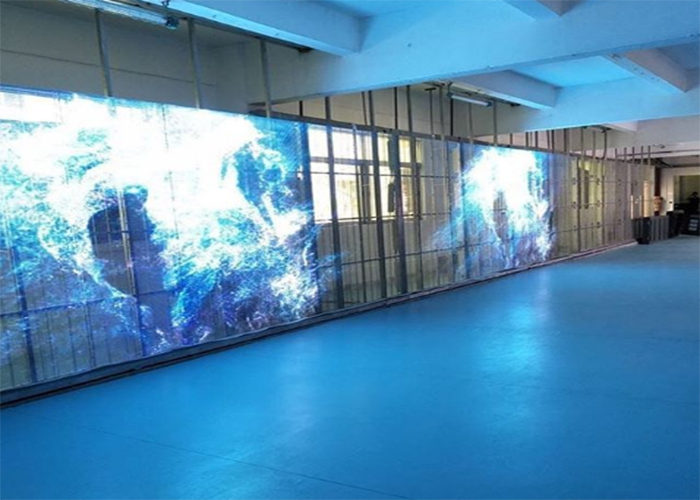

mesh LED panel

What is Curtain LED Display?

Both outdoor and indoor mesh LED screen versions incorporates the same ease of use, installation, and application. The video curtain PCB is encapsulated in a silicon based gel and the PCB holder and signal integration system is comprised of injection molded plastics to ensure a water repelling property. The outdoor LED video curtain screen is controllable via LED Vision PC Software. With software and control hardware you can control independently multiple outdoor LED Video curtain Screens with the same or different content simultaneously from one PC.

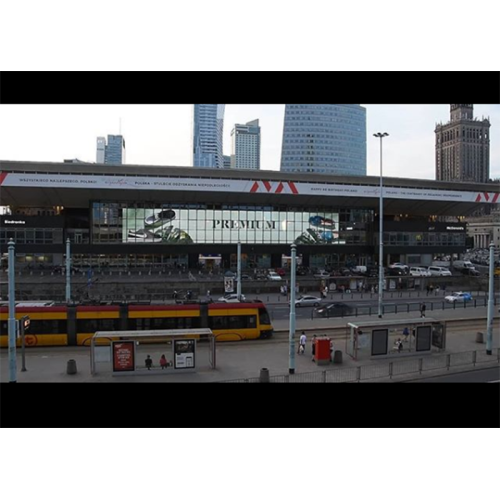

Curtain led display is a special kind of advertising screens and generally used for building decoration. The screen body is very light; meanwhile, the unit and masks are given special treatment, which ensure easy transportation and installation.

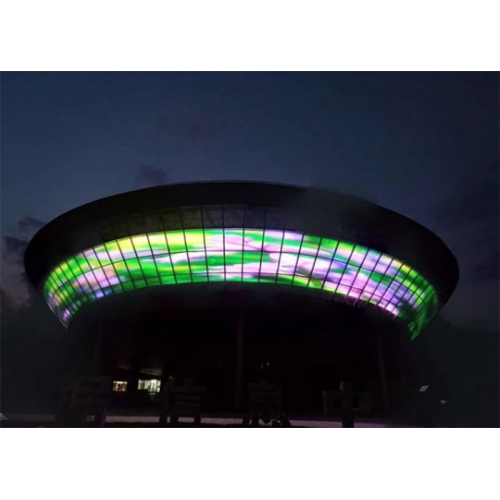

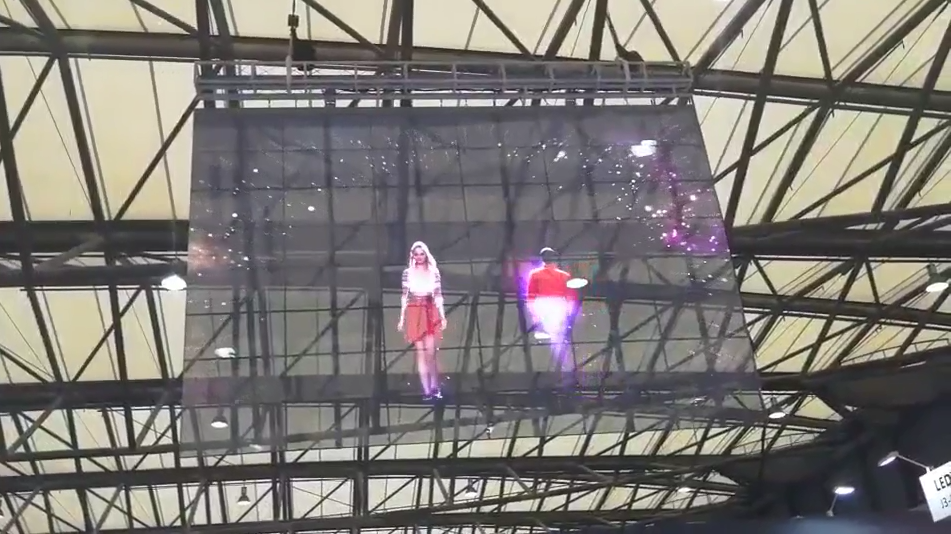

Application of Curtain LED Display

With wide applications, Curtain LED Display often can be seen in the entertainment places with many people, just like a large TV, and can also be used for companies and private to do any kinds of advertisement.
