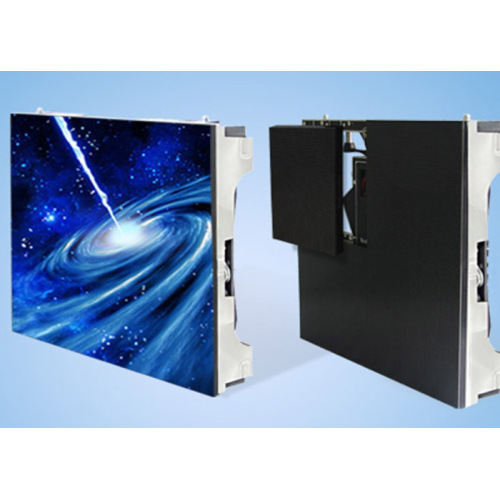

Concert Front Service Rental Outdoor LED Display

Bako Vision closely follows the LED rental market demand and the LED die-cast aluminum cabinets are rolled out. It is not only a simple upgrade of the traditional die-cast aluminum cabinet, but also has a comprehensive optimization and update in terms of structure and performance. This Outdoor Front Service LED Display is a compact rental display made of patented die-cast aluminum cabinet. The cabinet has high precision of assembly and easy to disassemble and maintain from front side.

Description:

High accuracy achieves high quality:
New high strength die - casting aluminum material, CNC finish machining make the cabinet flatness reaches 0.01mm level, guaranteed seamless splicing effect.

Front service and disassembly:

Power supply, hub card, receive card and module all front assemble or disassemble. A repair aisle reserving is unnecessary. Built-in installation method can help to save space.

Also front maintenance is available.

16:9 HD excellent fidelity:

Easy to implement HD/4K/8K image seamless splicing.  Pixel to pixel display mode matching with 16:9 video source. Image segmentation can be carried out, achieving the input source resolution equal to LED display screen resolution, restoring images to the maximum extent possible, meanwhile avoiding distortion and blurring caused by zooming in or out.

Unique module design:

Separation design. PCBA and bottom case are not integrated structure, this can make the cabinet lighter weight and better heat dissipation.

Precise localization:

Each module has 2pcs fixed axes for connection, one to one correspondence with the positioning holes on the cabinet frame, quick installation.

Front service available, saving maintenance cost and time consumption.

Wire hidden design:

Cabinet uses the wire hidden design. There are wire holes in the side of each cabinet . Cabinet back visual wireless after assemble. Much neat and beautiful.

Handle internally installed & Module magnetically mounted:

2pcs handles and 3pcs magnetic sheets within the cabinet. Easy to fix the modules.

High gray scale, ultra HD:

Cabinets configure brand IC, gray scale reach to 16bit, data refresh rate reach 3840Hz, the display screen is soft, delicate and realistic.

Lightweight and slim thickness:

Cabinet lightweight design, using die-cast aluminum designed and manufactured. One single cabinet only 6kg weight and 60mm thickness.

High precision quick lock assemble and disassemble:

The sides of the cabinet can be quick lock and quick disassemble, convenient operation. Save time as well as manpower.Apply users a better sense of operation experience, only need 10 seconds to install a cabinet.

Specifications:

Factory Profile:
