High Gray Scale P1.25 HD LED Display

Get Latest Price

Payment Type:: L/C

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000m²/Month
Supply Ability:	6000m²/Month
Payment Type:	L/C
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC FCC ETL CE EMC RoHS
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

Specification

1.Application:Suitable for indoor, commercial applications, banking, financial securities, post office, ferry, shopping malls, railway stations, telecommunications,

government, offices, monitoring, schools, restaurants, hotels, entertainment, enterprises and other various indoor places.

2.Rich play forms:Event videos, text, message, replays, animations are a part of the giant LED screen installed in indoor or outdoor place. You can choose the different forms.

3.Modular: The modules could be spliced into different sizes of cabinets and screens. It is very convenient for installation and maintenance,too.At the same time,seamless is not a problem.

4.Low consumption:By using high-quality materials and advanced technical equipment to reduce indoor LED Display functional consumption to achieve environmental protection and energy saving.

Details

Model	IU-1.2
Pixel Pitch	1.25mm
Pixel Density	640,000px/m²
LED Type	SMD0909
LED Configuration	1R1G1B
Cabinet Dimension	400*300
Cabinet Resolution	320*240
Cabinet Weight	4.6kg/panel
Cabinet Material	die-casting
Ingress Protection(front/rear)	IP430
Brightness	>800nits
Contrast ratio	4000:1
Colours	281 trillion

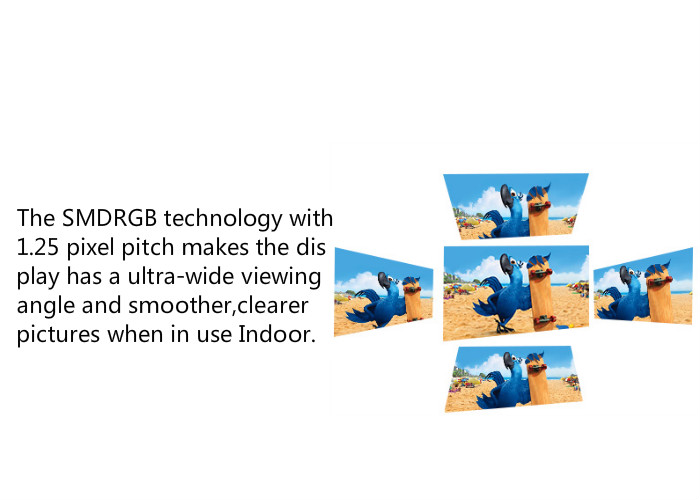

Viewing Angle(H/V)	140°/140°
Driving Method	1/30 Scan
Power Consumption(avg.)	220w/m²
Power Consumption(max.)	800w/m²
Frame Refresh	≥ 60Hz
Data Refresh Rate	≥ 1500Hz

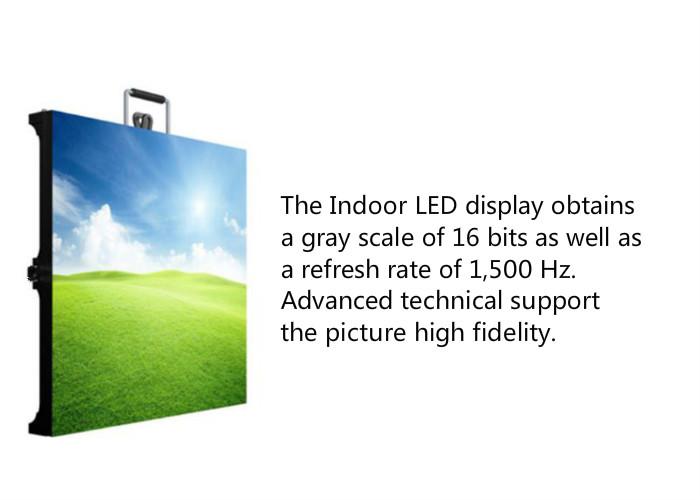

Gray Scale	16bit
Power Supply	AC 110/220±10% 50~60Hz
Temperature(operating/storage)	-20~50°C/-40~60°C
Humidity(operating/storage)	10%~90%RH 10%~85%RH
MTBF	≥1000 Hours
Life Span	≥50000 Hours
Service	Front/Rear
Certification	CCC,TUV-CE,ETL

FAQ
Q1: When is the delivery time?

A1: we will ship the products within 30days after receiving the deposit.

Q2: What is the payment method?

A2: We support a variety of payment methods of T/T,L/C,O/A,and so on.

Q3: What's the pixel pitch for Indoor LED Display Screen?

A3:Indoor(P1.25mm/P1.56mm/P1.66mm/P1.92mm)

Q4: Where is it used for?

A4: Indoor & Fixed use. It is widely used for indoor conference halls,meeting room,LED Studio screen,control center and so on.

Q5: Could it play HD video?

A5: Yes, it can realize HD video function with Novastar/Linsn controlling system.

Q6: What's the controlling system?

A6: Our standard controlling system for this model is Our standard controlling system for this model is Novastar/Linsn/Colorlight.
