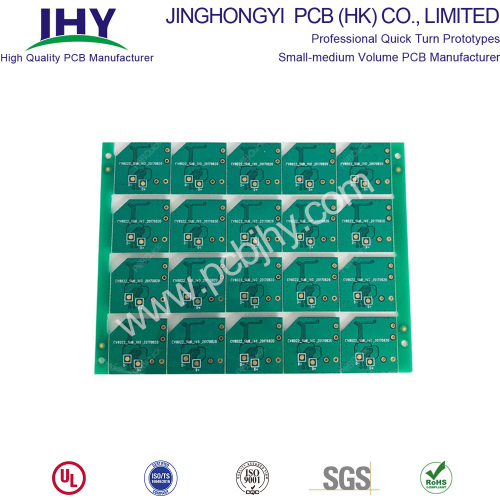

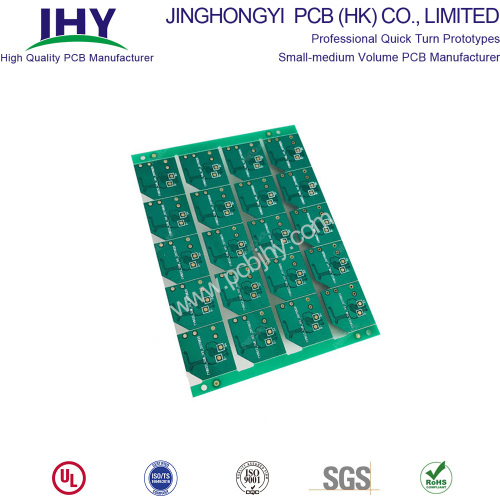

Quick Turn Immersion Gold PCB Prototypes Fabrication

Quick Turn Immersion Gold PCB Prototypes Fabrication

Get Latest Price

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB, CFR, CIF, EXW, FCA, CPT, CIP

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,EXW,FCA,CPT,CIP
Certificate:	ISO9001
Transportation:	Ocean,Air

Product Description

Why do you need quick turn PCB?

Lead time is critical when prototyping a new printed circuit board design. It is a competitive advantage for your business to test out your designs at a faster rate than your competitors.

Quick turn PCB requires fast production and fast delivery. Of course, fast delivery must also ensure the quality of circuit board. If the quality is not good, rework will not only increase waste. It also delays delivery time.

Quick turn PCB how to ship in 24 hours

1. Speed up the production cycle of each order, so that the urgent order change is no longer special.

For customers with urgent needs, urgent service is like a good news. Facing the accelerated fees of major manufacturers, many purchasers have reduced their intention to place orders.

4 layer PCB within 24 hours of shipment, Jinghongyi PCB from the Gerber file review, materials, production sequence, and other links have done a very good process combing, to maximize the customer's real enjoyment of light-speed emergency services. This also makes us win the vast market.

2. Intelligent production process

Quick turn PCB prototyping process is very cumbersome, only to achieve efficient production process, in order to ensure that each link is in a state of progress. Intelligent production process is also the goal of Jinghongyi PCB. Only through strict process management in the production process, can the production efficiency be greatly improved and delivery speed be guaranteed.

3. Choosing Faster Logistics Services

Quick turn PCB fabrication factories that can deliver goods within 24 hours, if they choose faster logistics, they will promote faster delivery of each order to customers.

To a certain extent, it reflects the comprehensive strength of PCB manufacturers to be able to produce quickly, deliver goods quickly and deliver in a short period.

Jinghongyi PCB is a professional PCB manufacturer and supplier. We guarantee that our fastest delivery time is 24 hours to meet your schedule.

We offer Quick turn PCB due date as follows:

2 layer quick turn PCB --1 day
4-6 layer quick turn PCB --2 days
8-10 layer quick turn PCB --3 days
12-16 layer quick turn PCB --4 days
16-20 layer quick turn PCB -- 5 days
22-30 layer quick turn PCB --6 days

These delivery dates only include our production time and do not include transportation time.

Manufacturing Capability

Item	Manufacturing Capability
PCB Layers	1~30 layer
Quality Grade	IPC Class 2 ,IPC Class 3
Laminate	FR-4,S1141,S1000-2,IT180A,Isola-FR408HR,FR406,Isola 370 HR,Rogers,Taconic,Arlon,Halogen Free,etc.
Brand of Laminate	Kingboard,ITEQ,Shengyi,Nanya,Isola,Rogers,etc.
Max Board Size	533.4 * 762 mm
Board Thickness	0.1~8.0mm
Board Thickness Tolerance	±0.1mm / ±10%
Copper Thickness	Outer layer:1/3oz~10oz,Inner layer:1/2oz~6oz
Min Mechanical Drilling Hole Size	6mil(0.15mm)
Min Laser Drilling Hole Size	3mil(0.075mm)
Min Line Width/Line Space	2/2mil(Outer layer:1/3oz,Inner layer:1/2oz)
Surface Finishes	OSP, HASL, HASL Lead-Free (HASL LF), Immersion Silver, Immersion Tin, Plated Gold,Immersion Gold(ENIG), ENEPIG,Golden Finger+HASL,ENIG+OSP,ENIG+Golden Finger,OSP+Golden Finger,etc.
Surface Finishes
Solder Mask Colors	Green, Red, White, Black, Blue,Yellow, Orange, Purple, Gray,Transparent .etc.
Solder Mask Colors	Matte: Green, Blue, Black.etc.
Silkscreen Colors	Black, White, Yellow.etc.
Electrical Testing	Fixture / Flying Probe
Other Testing	AOI, X-Ray(AU&NI), Two-dimension Measurement, Hole Copper Instrument, Controlled Impedance Test(Coupon test&Third Party Report), Metalloscope, Peeling Strength Tester, Solderability Test, Logic Contamination Test
Special Capabilities	Thick Copper, Thick Gold(5U"), Gold Finger, Blind and Buried Hole, Countersink Hole, Semi-hole, Peelable Mask, Carbon Ink, Counter sink hole, Plated board edge, Press fit hole, Control depth hole, VIA in PAD, Non-conductive resin plug hole, Plating plug hole, Coil PCB, Super Mini PCB, Peelable Mask, Carbon Ink, Controlled Impedance PCB, etc.
