2 Layer Quick Turn Rigid PCB Prototyping Manufacturing

What data are needed for 2 Layer Quick Turn PCB production?

It is best to provide data in Gerber 274-X format. In addition, Cam350, CAD, Protel 99se, PADS, DXP and Eagle can also be processed.

Notices in Quick Turn PCB Production

Board thickness: 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm are commonly used specifications. If there is no special requirement, choose 1.6 mm board thickness.

Copper foil thickness: 0.5, 1.0, 2.0 is a common specification, if the power of the board is not particularly, do not choose, manufacturers will generally use 0.5 oz board to do, if the power of about is 100W power board, it will use more than 1.0 oz.

solder mask color: green, black, red, white are commonly used, there is no requirement to use green, if it is used in their own experiments, it should use green, Because the circuit in the circuit board of this color can be seen most clearly.

Solder pad treatment: rosin, antioxidant, tin spraying (divided into lead and lead-free two kinds), generally using the latter two can be, tin spraying storage time will be longer.

Silk screen printing color: white, black is the commonly used color, if it is green, generally choose white words, this is mainly to see clearly, the color contrast of the choosing heel plate is large, if it is white solder resistance, it is necessary to choose black words.

Plate selection: HB, 94V-0, FR-4 are commonly used, HB is rarely used, it is not fire-proof board, generally single sided PCB use 94V-0, double sided PCB use FR-4.

Product&Service

• Quick Turn PCB
• Rigid PCB
• Flexible PCB
• Rigid-flex PCB
• Aluminum PCB
• PCB Stencil
• Multilayer PCB


Factory Tour

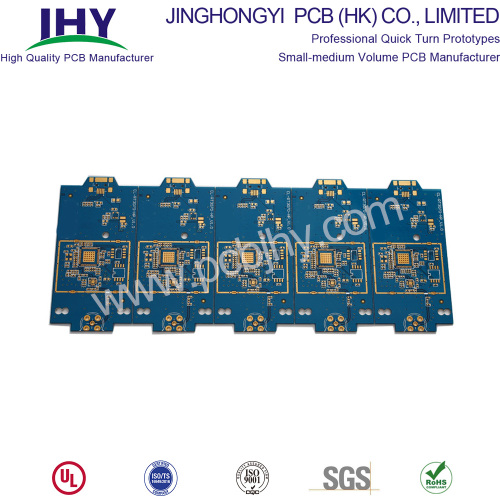

Detailed parameters of the PCB we have manufactured

Type: Quick Turn PCB
Layers: 2L
Base Material: FR4
Board Thickness: 1.6mm±10%
Copper Weight: 1oz
Surface Finish: ENIG 1U"
Solder Mask Color: Blue
Silkscreen Color: White
Controlled impedance: Yes
Flame Retardant Properties: 94 V-0

Why choose us

Certification(UL:E466618, TS16949,  ISO9001.RoHS)

PCB Shipment

JHY PCB offers flexible shipping methods for our customers, you may choose from one of the methods below.

Shipping Process
After production and testing, your PCB orders will be sent to our shipping department. As the quick turn PCB manufacturer, JHY PCB shipping department will ship your PCB quickly without any pending.
JHY PCB 's Packing Way

• Use one professional PCB vacuum bag, with desiccant inside. Vacuum compressed totally.
• Paste label and RoHs mark. Use second vacuum bag to protect boards again, vacuum compressed, make sure no exception.
• Microsection report and Tin testing board are put together with PCB in cartons.COC (Certificate of Conformity)  will be sent to customer by email in PDF.
• Several layers of thick EPE(Expand aple poly ephylene) are filled fully in gaps between PCBs and cartons. The thickness of 1 layer EPE is 10mm.
• Neutral Packing is adopted if no special requirements. Strong and thick cartons(Thickness:10mm,7 layers). Different sizes of cartons are designed to meet the demand of different PCB size. All package are within weight limit of cartons. For mass production order, no exceed 21kg per carton normally.
• All cartons sealed with strong adhesive tape should be sealed twice so as to make them more durable.
• Solid PP/PET strapping is used outside of cartons.
• Shipping mark, fragile mark and postcode label are all pasted clearly.

• Firstly, JHY PCB shipping department will print order address and invoice.
• Secondly, JHY PCB will set the shipment information on the Logistics company website.
• Thirdly, the Logistics company staff will collect the package from JHY PCB and ship it to you.

JHY PCB is experienced in exporting. For PCB Prototype and small-medium volume PCB order, we have a stable and long-term good relationship with the forwarder, such as international express company DHL, FedEx, TNT, UPS. For mass production order, we have a famous and reliable shipping company for support.
