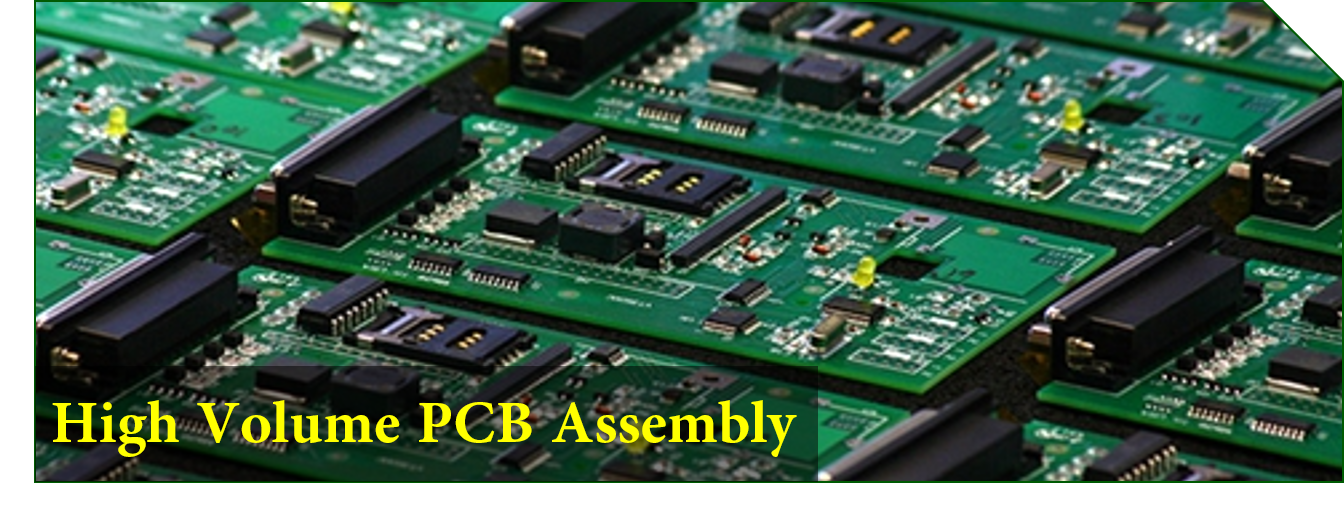

High Volume PCB Assembly

JHYPCB offers highly-qualified High Volume PCB Assembly

• We have the capability to manufacture, or assemble PCBs with Surface Mount Technology (SMT).
• We can also offer through hole selective soldering as a part of our printed circuit board assembly capability.
• The jet solder paste printing, or screen solder paste printing allows us to provide PCB assemblies in short lead times.
• We also have the capability to assemble PCBs with hand solder, as well as machine solder.
• We have full functional test capabilities, which helps us uphold our commitment to quality.
• We provide an end-to-end assessment, as well as conversion service for the RoHS Bill of Material (BOM).
• Determine whether every component of the assembly is RoHS compliant
• Identifying a substitute that complies with RoHS
• Procuring components and providing material and chemical safety data sheets.
• You can avail printed circuit board assemblies in prototype, as well as large volumes.
• The printed circuit boards assembled at our facility are lead-free, and conform to the RoHS compliance.
• Separate areas for prototyping and mechanical assembly
• PTH, SMT, & mixed technology assembly
• Single and double-sided assembly
• Cable & harness assembly
• Component placement to 7-mil pitch
• High layer & ultra-dense component counts
• BGA, U-BGA, ultra-fine pitch QFP, QFN, CSP, FCP & 0201 placement & repair

• We Guarantee Good Quality: Before beginning with the assembly, we perform the design for manufacturability (DFM) check on the designs. The required changes are made prior to the assembly. We ensure that our PCBs meet all application and industry requirements, in terms of speed, performance, and regulations.

• Stringent Quality Checks: The printed circuit board assemblies (PCBAs) that we produce are passed through stringent quality checks. We implement testing and inspection methods, including X-ray, Automatic Optical Inspection (AOI), In-circuit testing (ICT), functional testing, and more.

• Cost-effective PCB Assembly Solutions: We maintain a good balance between the quality and costs of the PCB Assembly. So, if you are looking for good quality PCB Assemblies in high volume at affordable prices, then we have you covered.

• Assemblies Comply with Industry Standards: We have a vast list of certifications, and the circuit boards that we assemble comply with the industry standards. Some of our certifications include ISO 13485, ISO 9001:2015+ AS9100D, IPC-WHMA-A-620, IPC-CC-830B, J-STD-001 in house Certified Trainer, and more. This helps us maintain our reputation for providing high-quality PCB assembly services.

• Prototype to final assembly: We design our prototypes with the same level of quality as the final assemblies. This ensure that the final PCBs delivered to customers will be performance driven and durable.

• Meet design and production requirements.: We ensure that all the PCBs meet exact design and production requirements. This provides assurance in terms of accuracy and consistency.

We provide PCB Assembly manufacture services as follow:

• Prototype PCB Assembly Services

• Quick Turn PCB Assembly

• Low Volume & Small Batch PCB Assembly

• Low Cost PCB Assembly

• Turnkey PCB Assembly Service

• Online Quote: Real-time contact and communication with our sales and engineers through our online customer service system

• Offline Quote: Buyers sometimes prefer this method of quoting. Browse the list of products and services on our website, select the products and services you need, and then tell us through the online order system.

• Email: You can also get a quote by emailing us. Please attach all your files.

• Call us: Or you can call us directly
