High Quality USB Circuit Board USB Drive PCB

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

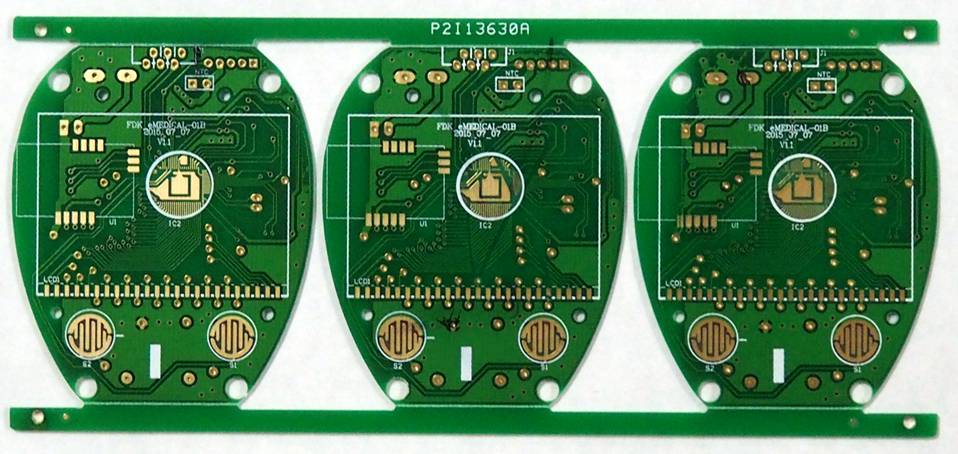

USB Circuit Board Manufacturer

Jinghongyi PCB, a professional USB circuit board manufacturer and supplier, located in China.

You can complete your USB circuit board manufacturing tasks through us. We provide USB circuit board prototype manufacturing services, small and medium batch manufacturing and USB circuit board assembly services.

USB circuit board products are most popular in North America, Western Europe, and Domestic Market.

Usb Circuit Board | JYB PCB

Development of USB circuit board

With the rapid development of computer hardware and the increasing number of peripheral devices, power bank, DVD, mp3 player, phone, bluetooth, USB flash drive, keyboard, mouse, modem, printer and scanner are well known. Digital cameras and MP3 Walkman come in succession.

So many devices, how to access the personal computer? USB is based on this purpose. USB is an interface that standardizes and simplifies the connection of peripheral devices.

Its specifications are jointly formulated by Intel, NEC, Compaq, DEC, IBM, Microsoft and Northern Telecom.

The development of USB devices demands more and more USB circuit boards.

USB - How it words

USB Connector | USB Circuit Board Connetor

INSIDE-USB

All computers have USB ports.

The easiest way to connect computer peripherals is through a Universal Serial Bus. The USB is a plug-and-play interface between the PC and the peripherals.

The main advantage of USB is that the device can be plugged in or plugged out without the need of restarting the PC.

USB is the short form of Universal Serial Bus, a standard port that helps to connect computer peripherals like scanner, printer, digital camera, flash drive and more to the Computer.

USB Connections, USB Circuit Board Connector

Each USB device uses the standard A type connector to the USB host or Hub through A type receptacle. The other end of the cable has series B connector which is used to plug into the B type receptacle.

A connector is used for the upstream connection towards the host and B connector for the downward stream to the USB device. When the device is connected to the PC, it activates the host to recognize it. The PC detects the device and manages a control flow between the device and computer.

PC also manages the data transfer between the device and PC. Once detected, the PC sends data to the USB system software to recognize it which then identify the device and assign an address. This address is used to detect the particular USB device. The software controls the input and output data between the PC and device. If the software fails to assign the address, PC will not detect the device.

USB HUB Circuit Board

USB-HUB | USB HUB Circuit Board

The USB Hub is used to connect many devices to the PC using a single USB connector. The hub can detect the attachment or detachment of devices in each port of the Hub. It also distributes power to all the devices connected to it and also detects low speed and full speed devices.

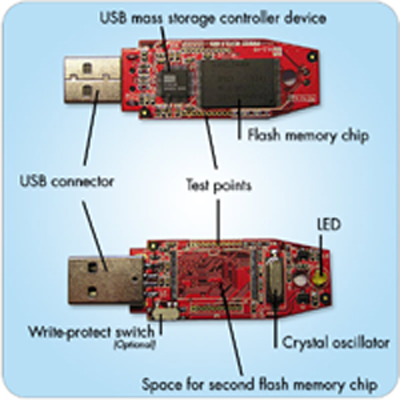

USB Flash Drive Circuit Board

The most commonly used USB device is the Flash drive the commonly called Pen drive. It is a mass storage device capable of functioning like a hard disk of computer.

the USB connector is actually the PCB itself. This saves on cost, looks great, and it keeps the card thin.

Jinghongyi PCB provide USB Flash Drive Circuit Board prototype manufacturing services.

Is It Hard To Develop A USB Circuit?

it is hard if you want to make it from scratch.

However, if you hand over the USB circuit board to a professional PCB manufacturer, your problem will not be a problem.

Professional PCB manufacturers, such as Jinghongyi PCB, have been specializing in PCB manufacturing and PCB assembly for nine years.

We have very advanced production equipment, advanced management concepts, experienced engineers and skilled technicians. Over the years, we have accumulated very rich production experience.

How To Make a USB Circuit Board?

How to produce high quality USB circuit boards is no longer your problem. You can just leave the task of production and manufacture to us. We provide preferential prices to ensure product quality and high quality after-sales service and timely delivery.

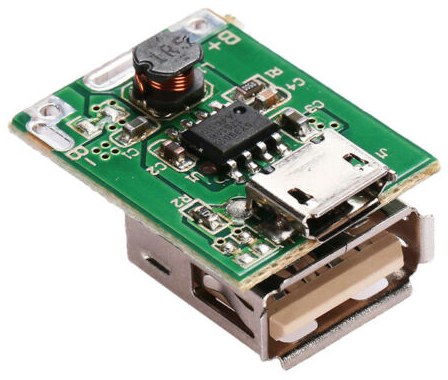

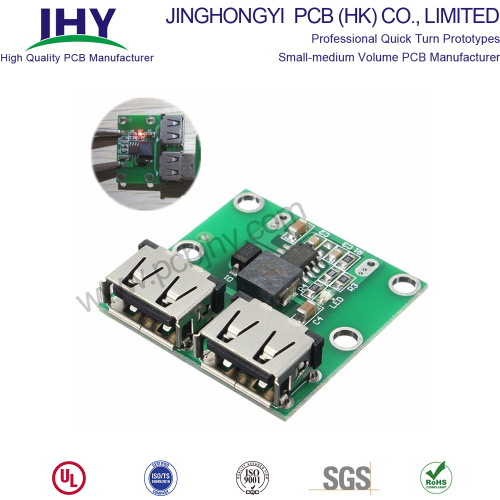

USB Charging Circuit Board, USB charger circuit board

DC Converter Buck Module 6V - 24V USB Charging Circuit Board

USB Charging Circuit Board, USB Charger Circuit Board

USB Charging Circuit Board Specifications:

Input Voltage:	DC 6V - 24V
Output:	DC 5V 3A (5A max.)
Conversion Efficiency:	98%
Switching frequency:	1.5MHz (highest) typically 1MHz
Operating Temperature:	-40 Degree to +85 Degree
Feature(s):	1. Short circuit protection
Dimension:	35mm (L) x 12mm (W) x 10mm (H)
Weight:	5g
Package Content:	1 x USB Charging Circuit Board

USB speakers circuit board

USB speakers circuit board is widely used in our daily life, such as MP3 player, car speaker, Bluetooth speaker, TV speaker and so on.

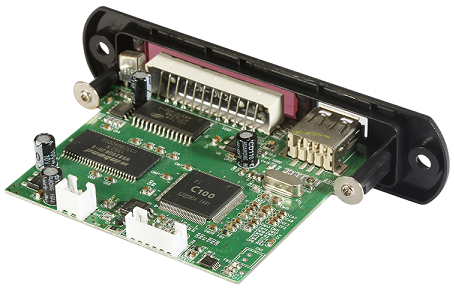

USB MP3 Player Circuit Board

Jinghongyi PCB is a manufacturer and supplier of USB MP3 circuit board in China, providing high quality and cheap USB MP3 player circuit board.

USB MP3 circuit board is mainly used in USB player, SD card player, FM player and an auxiliary input.

USB Video Player Circuit Board

Buy low price, high quality USB video player board with Jinghongyi PCB.

We provide Portable USB SD Bluetooth MP3 MP4 AVI DVD Video Player Module, Car MP5 Player Record Circuit Decoder Board With Radio FM LCD.

USB Keyboard Circuit Board

Jinghongyi PCB provide USB keyboard circuit board and others USB circuit board.

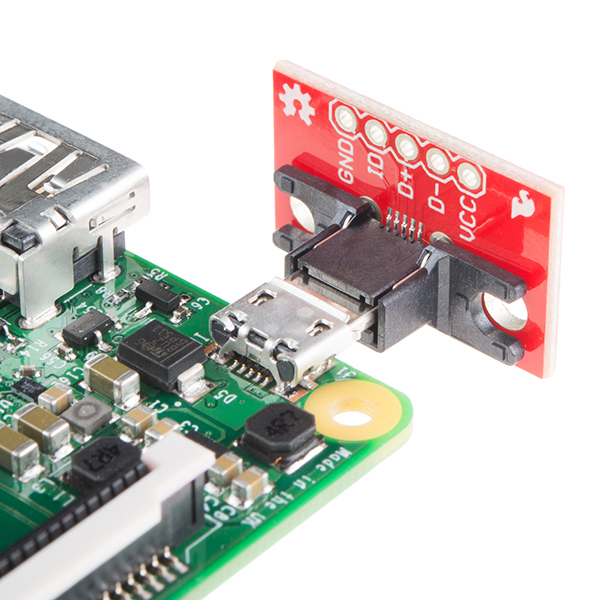

Micro USB Circuit Board, Mini USB Circuit Board

USB Flash Drive Circuit Board

USB Bluetooth Circuit Board

Bluetooth speaker circuit board, bluetooth circuit board for speakers for sale.

Buy low price, high quality bluetooth circuit board with worldwide shipping on Jinghongyi PCB website.

A Bluetooth circuit is the central part of a Bluetooth and contains components such as the integrated circuit, capacitors and source of power. The course supports wired-in audio, wireless stereo, Bluetooth module and many more.

USB Bluetooth Circuit Board, Bluetooth Circuit Board For Speakers

Some typical applications of Bluetooth circuit board.

Wireless headphones and headphones
Wireless keyboard and mouse
Bluetooth Speaker
Multimedia transmission
Automatic Synchronization

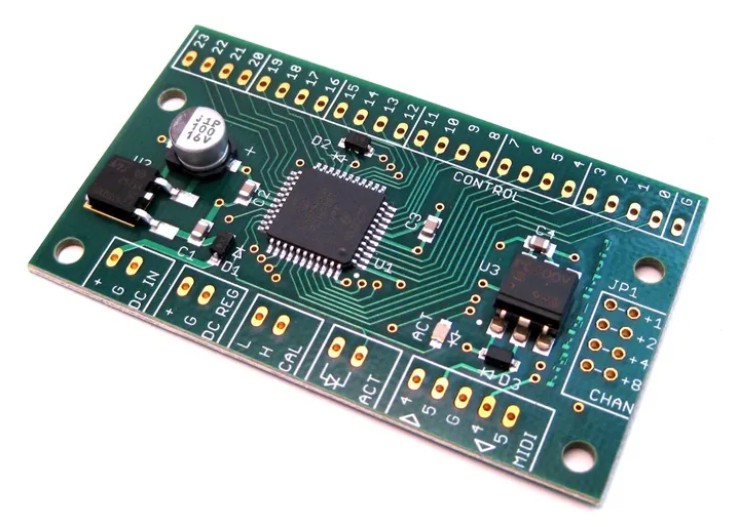

USB Midi Circuit Board

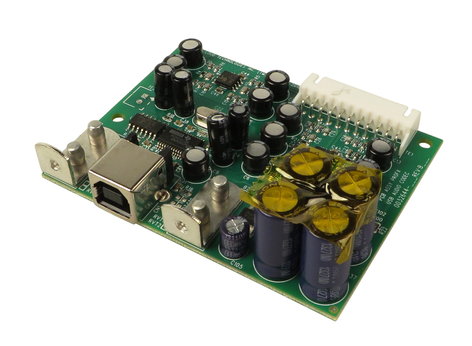

USB Audio Circuit Board

Our range of products include USB Player Audio Circuit Board, Audio Circuit Board For Car USB System, Audio Circuit Board Of 2. 1 Home Theater, Home Theater Board, Audio Amplifier Boards and Circuit Board.

USB Audio Circuit Board
