Aluminum Core PCB LED PCB

Aluminum PCB Characteristic

Among all Metal core PCBs, Aluminum Core PCB is the most common type - the base material consists of aluminum core with standard FR4. It features a thermal clad layer that dissipates heat in a highly efficient manner, while cooling components and increasing the overall performance of the products. Currently, Aluminum Backed PCBs is regarded as the solution to high power and tight tolerance applications.

Aluminum PCB product details

• Layer:1 Layer
• Material: Aluminum
• Finished board thickness: 1.6mm
• White solder mask
• Black silkscreen
• 1oz finished copper thickness
• Surface Finish is HASL LF
• Thermal Conductivity: 1.0W
• Application: LED lighting

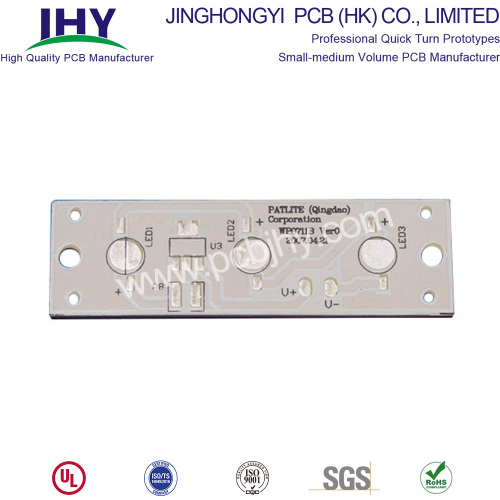

Image for Aluminum Core PCB

JHYPCB: An Experienced Aluminum Core PCB Manufacturer

JHYPCB's been manufacturing Aluminum Core PCBs for 9+ years. Our full feature aluminum circuit boards making capabilities and Free DFM Check allow you to get high-quality Aluminum Core PCBs done within budget. Our printed Aluminum PCBs are widely used for LED lighting, power equipment and automotive systems.

You May Ask:

What is fr4 TG?
High-TG PCBs High Temperature PCB fr4 Material. The Glass Transition Temperature (Tg) is one of the most important properties of any epoxy and is the temperature region where the polymer transitions from a hard, glassy material to a soft, rubbery material. ... FR4 is a code name for grade of Epoxy Glass material.

What is Mcpcb?
A Metal Core Printed Circuit Board (MCPCB) is a type of printed circuit board that contains a base metal material. The core is designed to redirect heat away from components which produce a substantial amount of heat. ... The metal core is composed of a metal plate with an appropriate thickness to dissipate heat.

What is metal core PCB?
Metal core PCB and standard FR-4 are commonly used circuit board materials in conjunction with Power LEDs. Henkel's Thermal Clad dielectric is a thin, thermally conductive layer bonded to an aluminum or copper substrate for heat dissipation.

Product&Service

• Quick Turn PCB
• Rigid PCB
• Flexible PCB
• Rigid-flex PCB
• Aluminum PCB
• PCB Stencil
• Multilayer PCB


Aluminum Core PCB manufacturing

Why choose us?

• Save money&time! Achieve peace of mind!
• A professional and trustworthy PCB prototype manufacturer.
• Fastest PCB Prototype.
• One stop solution for various PCB&SMT Stencil.
• Low cost for simple PCB.
• Affordable price for high-tech PCB.
• Minimum orders 1pcs.
• 24-hour online customer service.
• Professional PCB engineer for one-to-one service.
• Shipment on time.
• Guarantee good service and quality from PCB quotation to delivery.


Service features

• Custom PCB service.
• You get what you pay for!
• 7*24 hours Online service.
• Professional Technical support.
• Fast turnarounds.
• Fast delivery.

Certification(UL:E466618, TS16949,  ISO9001.RoHS)

PCB Shipment

JHY PCB offers flexible shipping methods for our customers, you may choose from one of the methods below.

Shipping Process
After production and testing, your PCB orders will be sent to our shipping department. As the quick turn PCB manufacturer, JHY PCB shipping department will ship your PCB quickly without any pending.

JHY PCB 's Packing Way

• Use one professional PCB vacuum bag, with desiccant inside. Vacuum compressed totally.
• Paste label and RoHs mark. Use second vacuum bag to protect boards again, vacuum compressed, make sure no exception.
• Microsection report and Tin testing board are put together with PCB in cartons.COC (Certificate of Conformity)  will be sent to customer by email in PDF.
• Several layers of thick EPE(Expand aple poly ephylene) are filled fully in gaps between PCBs and cartons. Thickness of 1 layer EPE is 10mm.
• Neutral Packing is adopted if no special requirements. Strong and thick cartons(Thickness:10mm,7 layers). Different sizes of cartons are designed to meet demand of different PCB size. All package are within weight limit of cartons. For mass production order, no exceed 21kg per carton normally.
• All cartons sealed with strong adhesive tape should be sealed twice so as to make them more durable.
• Solid PP/PET strapping is used outside of cartons.
• Shipping mark, fragile mark and postcode label are all pasted clearly.

How to ship your PCB?

• Firstly, JHY PCB shipping department will print order address and invoice.
• Secondly, JHY PCB will set the shipment information on the Logistics company website.
• Thirdly, the Logistics company staff will collect the package from JHY PCB and ship it to you.

Shipment Term

With the purpose of better customer service and meeting the customer demand, JHY PCB provides following shipping methods.
JHY PCB is experienced in exporting. For PCB Prototype and small-medium volume PCB order, we have stable and long-term good relationship with forwarder, such as international express company DHL, FedEx, TNT, UPS. For mass production order, we have famous and reliable shipping company for support.

FAQ
Q1: What is your minimum order quantity?
A: Our MOQ is 1 PCS.
Q2: Do you accept  PCB design with different boards on one panel?
A: Of course, we can do different boards on the same panel.
Q3. Are my Gerber Files safe?
A: We protect the intellectual property for customers in the whole process. All documents from customers are never shared with any third parties.
Q4: What is needed for quotation?
A: Quantity, PCB Gerber file, Technical requirements(material, board thickness, surface finish, copper thickness, solder mask color, silkscreen color, ...)
Q5. How to quote shipping cost?
A: The shipping cost is determined by the shipment way(forwarder name, delivery days), destination, weight&dimension of packages. If you use your own forwarder, please inform us.
