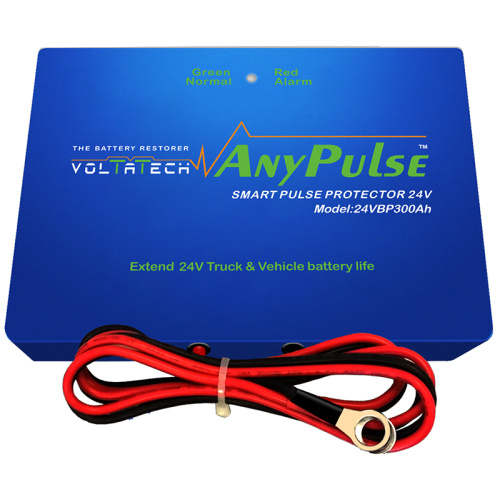

24V Trucks Battery Protector

It's used in 24V36Ah~300Ah lead-acid battery. 24V Trucks Battery Protector is special for start-up battery of vehicle or watercraft, as well as in solar energy storage battery and UPS back up power. It's rugged design is perfectly suited to withstand heavy duty job with free maintenance:

• Has over-voltage and under-voltage alarm for  long-term, sustainable jobs 8~10 years
• Dust-proof, waterproof, shockproof
• Insulated, thermostable, flame retardant

• Keep the start-up battery in"like-new"condition
• Provide faster starts up your car or truck.
• Extend battery life up to 1~2 times as before, if you install to your new battery
• Reduce you battery recharge time
• Maintain aged battery capacity to ensure you to drive on the road without downtime
• Increase your customer satisfaction because of your timely delivery without truck's roadside breakdown

The start-up battery is the soul of your vehicle.  It starts the Engine, and generates the energy necessary for the operation of all other vehicle's electric aspects. But did you know that it only has two years of life approximately because the battery's negative plate is sulphated fast. Reducing the functional capacity of the battery until its complete inoperative. Nothing could be done about this because the unpredictability inherent with common use of the battery within any vehicle's given environment was in control. But in 1998, a pulse desulphation technology product named Start-Up Battery Protector was developed by our R&D team and patented that I believe revolutionized Starter Battery Repair methods to lengthen the battery lifespan.

That's why we present the 24V Trucks Battery Protector. We offer you a fully automatic Truck Smart Battery Plus which is kind of Start Up Battery Saver system, it works 24hrs a day. It is not a battery charger. It is a patented electronic sulphation Cleaner which will eliminate the battery sulphation that is the main cause of early failures in lead acid start-up batteries.

This revolutionary Battery Protector saves time, money and effort by reducing battery-related downtime, maintenance and replacement. Congratulations, you now finding out the most effective method available for ensuring battery reliability--the stat-up BP-24 Pro special for vehicle starter batteries as well as lead Acid batteries of Bus, Truck, Car, Boat, Solar Energy, etc.

APPLICATION:
It's used in 24V36Ah~300Ah lead-acid battery.

SPECIFICATION:

• Operation Temperature:   -20℃~70℃
• Operation Current: 25~45mA
• Peak Pulse Voltage:    ≥1,5V
• Impulse Frequency: 8,4KHz±10%
• Over voltage alarm value:   29,8V ± 0,2V
• Under voltage alarm value: 23,6V ± 0,2V

EASY INSTALLATION:

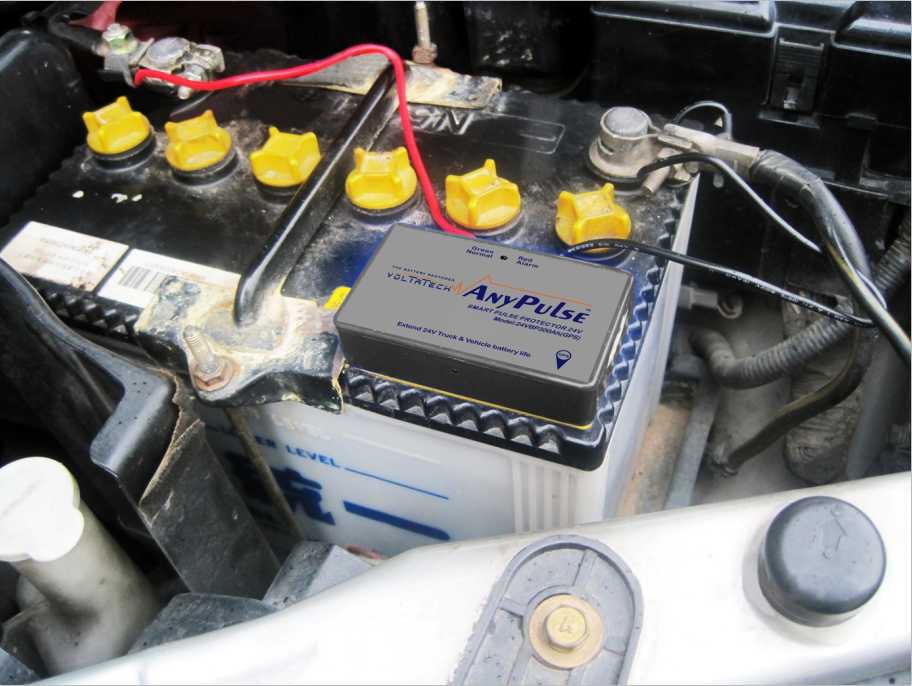

Choose a battery smooth surface with no heat, no overflow acid and not sealed, wipe out the dust and water vapor; tear off the double-sided adhesive protective film at the bottom of the battery smart pulse protector, press to the installation position,( suggest to prepare glass-rubber or AB glue to make the protector bottom firmly adhesive). Loosen the fixed screw on battery pole, connect the black wire of protector to the negative(-) terminal of the battery, the red wire to the positive(+) (refer to the drawing below), and then tighten the screws of battery.

The protector automatically detects the working state of the battery after proper polarity connection. If everything is normal, the indicator light is green, there is no alarm sound. If the battery is in abnormal condition, issue the alarm tone as our instruction manual.

WARRANTY:
The BP-24 Pro identified herein is covered by a 2-YEAR warranty valid from the date of purchase. This warranty covers defects caused by faulty components or workmanship, including the labour required for repair in our authorized workshops.This warranty does not cover defects caused by incorrect installation, improper use or abuse. The existence of such causes shall be determined by our workshops technical services.
