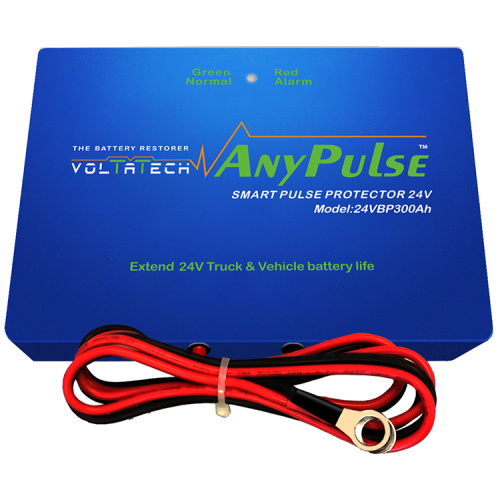

24V Truck Startup Battery Desulfator

The 24V Truck Startup Battery Desulfator is a kind of Truck Startup Battery Life Saver, can automatically detect the working state of the battery after proper polarity connection. If everything is normal, the indicator light is green, there is no alarm sound. If the battery is in abnormal condition, issue the following alarm tone:

• A) When the battery voltage is below than23,6V, the protector indicator turns red and green alternately, which means the battery is extremely low capacity or circuit leakage, it is recommended to troubleshoot or replace in time.
• B) When the charging voltage of the car is too high (greater than 29,8V), the indicator light is red. It is indicated that the battery charging circuit is out of order, and the charging circuit should be repaired in time to avoid damage to the battery.
• C) If the LED indicator is OFF, which means the battery is out of order to be 0 capacity or the protector itself is damaged. It is recommended to check the battery capacity status, and troubleshoot or replace it in time. Otherwise your protector unit is fair to operate and you can choose to purchase another one or according to the warrant policy to return the defective unit with proof of purchase to your distributor for full refund or new replacement unit at your option

The start-up battery is the soul of your vehicle.  It starts the Engine, and generates the energy necessary for the operation of all other vehicle's electric aspects. But did you know that it only has two years of life approximately because the battery's negative plate is sulphated fast. Reducing the functional capacity of the battery until its complete inoperative. Nothing could be done about this because the unpredictability inherent with common use of the battery within any vehicle's given environment was in control. But in 1998, a pulse desulphation technology product named Start-Up Battery Protector was developed by our R&D team and patented that I believe revolutionized Startup Battery Desulfation methods to lengthen the startup battery lifespan.

That's why we present the 24V Trucks Start-up and Stationary Battery Protector. We offer you a fully automatic Battery Pulse Desulfator and Stationary Battery Repair system, it works 24hrs a day. It is not a battery charger. It is a patented electronic sulfation Cleaner which will eliminate the battery sulphation that is the main cause of early failures in lead acid start-up batteries. 24V Truck Startup Battery Desulfator can:

• Keep the start-up battery in"like-new"condition
• Provide faster starts up your car or truck.
• Extend battery life up to 1~2 times as before if you install to your new battery
• Reduce you battery recharge time
• Increase aged battery capacity to ensure you to drive on the road without downtime
• Increase your customer satisfaction because of your timely delivery without truck's roadside breakdown

This revolutionary Battery Protector saves time, money and effort by reducing battery-related downtime, maintenance and replacement.

Congratulations, you now finding out the most effective method available for ensuring battery reliability--the stat-up Battery Protector and Battery Saver special for vehicle starter batteries as well as lead Acid batteries of Bus, Truck, Car, Boat, Solar Energy, etc.

APPLICATION:
It's used in 24V36Ah~300Ah lead-acid battery. It is special for start-up battery of vehicle or watercraft, as well as in solar energy storage battery and UPS back up power.

SPECIFICATION:

• Operation Temperature:   -20℃~70℃
• Operation Current: 25~45mA
• Peak Pulse Voltage:    ≥1,5V
• Impulse Frequency: 8,4KHz±10%
• Over voltage alarm value:   29,8V ± 0,2V
• Under voltage alarm value: 23,6V ± 0,2V

EASY INSTALLATION:

Choose a battery smooth surface with no heat, no overflow acid and not sealed, wipe out the dust and water vapor; tear off the double-sided adhesive protective film at the bottom of the battery smart pulse protector, press to the installation position,( suggest to prepare glass-rubber or AB glue to make the protector bottom firmly adhesive). Loosen the fixed screw on battery pole, connect the black wire of protector to the negative(-) terminal of the battery, the red wire to the positive(+) (refer to the drawing below), and then tighten the screws of battery.

The protector automatically detects the working state of the battery after proper polarity connection. If everything is normal, the indicator light is green, there is no alarm sound. If the battery is in abnormal condition, issue the alarm tone as our instruction manual.

WARRANTY:
The BP-24 Plus battery protector identified herein is covered by a 2-YEAR warranty valid from the date of purchase. This warranty covers defects caused by faulty components or workmanship, including the labour required for repair in our authorized workshops.This warranty does not cover defects caused by incorrect installation, improper use or abuse. The existence of such causes shall be determined by our workshops technical services.
