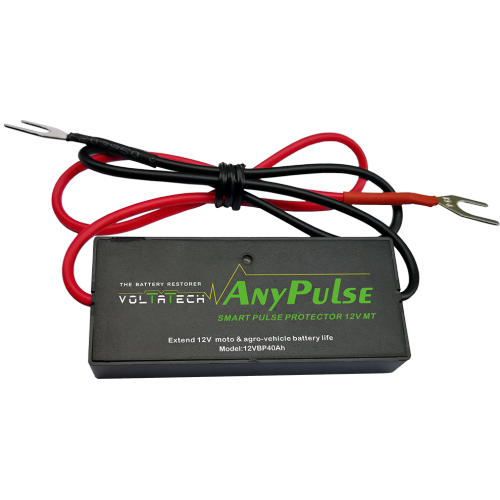

12V Motor Start-up Battery Protector

Along with all of the benefits that the invention of the start-up battery has brought to the motoring public, comes the problems as well. Batteries are installed and used until thought to be [dead". Nothing could be done about this because the unpredictability of your battery early failure suddenly for sulphation. If motorcycles fail to start up on the road, that will cause great difficulties for us to travel. But our 12V Motor Battery Smart Pulse Protector,  also we call it as the  name of Motor Battery Life Saver with unique smart  pulse can help you to avoid that kind  of unpleasant incidents. Because it has the function of extending battery life and early warning battery capacity shortage as a Motor Battery Care device.

Our team developed and patented a smart pulse desulphation technology that I believe revolutionized battery maintenance and recovery methods. As you will read, the application of this technology is kind of just as [doctors treat patients in hospital" to keep it healthy again or recover it as new battery for a longer time. Wide validation was approved by experts in various fields more than 20 years, by helping keep plates clean, the battery works harder than ever thought possible. It maintains a greater reserve capacity, will recharge faster and release more of its stored energy.

With more available energy, the 12V motor Battery protector and Battery Saver:

• Keep the start-up battery in"like-new"condition to better your driving travel
• Provide faster starts up your motor and other vehicle.
• Extend battery lifespan up to 1~2 times as before,  if you install to your new battery as soon as possible
• Increase aged battery capacity  or maintain your new battery SOH to ensure you driving on the road without downtime
• Remind you in advance about battery SOH by the  LED indicator

This revolutionary unit saves time, money and effort by reducing battery-related downtime, maintenance and replacement.

Congratulations, you now finding out the most effective method available for ensuring battery reliability--the Motor Battery Protector and Saver special for vehicle starter batteries as well as lead acid batteries of street and road lamp batteries, electric agricultural spraying batteries, etc.

Also, it's rugged design is perfectly suited to withstand heavy duty job with free maintenance:

• Has over-voltage and under-voltage alarm for  long-term, sustainable working 8~10 years
• Dust-proof, waterproof, shockproof
• Insulated, thermostable, flame retardant

That's why we present the 12V Motor Start-up Battery Protector. We offer you a fully automatic battery pulse regenerator and protection system, it works 24hrs a day. 12V Motor Battery Desulfator is not a battery charger. It is a patented electronic sulphated crystals desulfator which will eliminate the battery sulphation that is the main cause of early failures in lead acid start-up batteries.

APPLICATION:
It's used in 12V5Ah~36Ah motor lead-acid battery. It is special for start-up battery of vehicle or street and road lamp batteries, electric agricultural spraying batteries, etc.

SPECIFICATION:

• Operation Temperature: -20°C ~ 70°C
• Operation Current: 10 ~ 20 mA
• Peak Pulse Voltage: ≥1,0 V
• Impulse Frequency: 8,4KHz ±10%
• Over voltage alarm value: 15,00V ± 0,2 V
• Under voltage alarm value: 12,10V ± 0,1 V

EASY INSTALLATION:

Choose a battery smooth surface with no heat, no overflow acid and not sealed, wipe out the dust and water vapor; tear off the double-sided adhesive protective film at the bottom of the battery smart pulse protector, press to the installation position, (suggest to prepare glass-rubber or AB glue to make the protector bottom firmly adhesive). Loosen the fixed screw on battery pole, connect the black wire of protector to the negative(-) terminal of the battery, the red wire to the positive(+) (refer to the drawing below), and then tighten the screws of battery.

The protector automatically detects the working state of the battery after proper polarity connection. If everything is normal, the indicator light is green, there is no alarm sound. If the battery is in abnormal condition, issue the alarm tone as our instruction manual.

WARRANTY:
The 12V Motor Start-up Battery Protector identified herein is covered by a 2-YEAR warranty valid from the date of purchase. This warranty covers defects caused by faulty components or workmanship, including the labour required for repair in our authorized workshops.This warranty does not cover defects caused by incorrect installation, improper use or abuse. The existence of such causes shall be determined by our workshops technical services.
