48V Electric Bicycle iCharger Maintainer

This 48V iCharger Maintainer is a high-tech products developed specifically for repairing electric bicycle battery when it is charging link in line everyday. Your electric bicycle battery capacity will be gradually restored everyday by use our Electric Bicycle Battery Repairer and duo to under the disturbance of the smart frequency pulse, the sulfated crystallization re-buildup can be prevented effectively and timely, therefore the battery life can be extended to the doubled. It utilizes the power energy from the common charger linked together to generate electronic pulse waveform with controlled width  and strictly controlled rise time, which resonance with the thick sulfate crystals during charging process to continuously dissolved the lead sulfate crystals.

Most of Electric vehicle use lead-acid battery bank(12V/6V/8V cells packed in Series)as the power source, The design lifespan of battery is 2~3 years, but actually the battery is usually failure after 6~12 months used which State-of-Capacity gradually decline and even some scraped. Through analysis by cutting a large number of failure batteries, the cells water loss and sulfation is quite prominent. Such as the phenomenon of battery sulfation and dehydration can be effectively prevented by using our device of Electric Bicycle Battery Saver-- iCharger 48S

We're often asked what makes our products better than other trickle or float chargers on the market. It's easy – our patented 36V/48V/60V/72V battery smart pulse technology! No other EV battery chargers on the market have this technology in the world. This Battery Smart Pulse Charging Restorer device is a new type of Electric Cycle Battery Repair tools, it is:

• A kind of Electric Battery Life Saver with pulse desulfation technology, Smart, Simple and Safe

• Ensure the EV driving mileage is longer

• The connection with charger is simple, safe and convenient. Make your common charger become a Smart Charger with Battery Care function

• Suitable for the popular 36V~72V batteries of electric vehicles, buy a set, multi vehicles benefit in family

• A strict circuit filtering technique, does not affect the charging parameters of the charger, safe and carefree

APPLICATION

It is used for 36V/48V 7-40Ah Electric bicycle and motorcycle lead-acid battery bank.

It is not suitable for these battery banks with cell deformed appearance, positive plate softening and corrosion, active material shedding, short circuit, open circuit.

TECHNICAL SPECIFICATION:

  1) Environmental Conditions

• Working Environment Temperature: -10℃~50℃
• Storage Environment Temperature: -40℃~70℃
• Relative Humidity of Environment: 45% ~90%RH

  2) Electrical Parameters

• Working Current:      36V Battery Mode: ≤65mA    48V Battery Mode: ≤80mA
• Pulse Peak Current:  36V Battery Mode: ≥4,0A      48V Battery Mode: ≥6,0A
• Maximum Voltage:    DC80V
• Frequency Range:    7,5kHz~10kHz

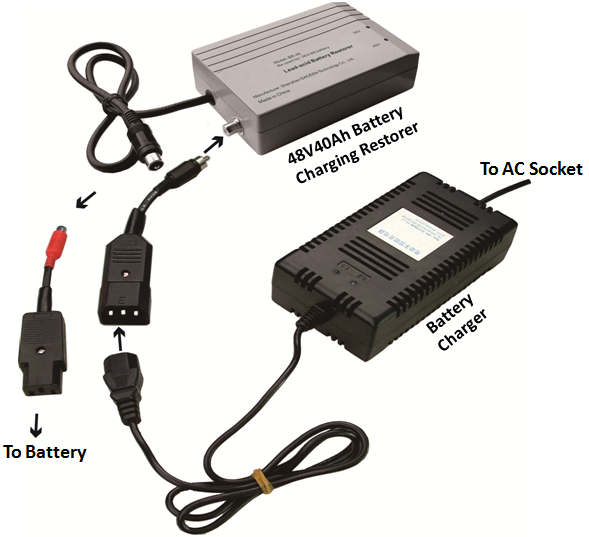

• Step 1: Before used, first check the polarity of the charging port on the battery bank, It should be consistent with the input and output polarity of the bottom of the Battery Charging Restorer device to be used, otherwise it will damage the iCharger 48S pulse charging desulfator device or your charger.
• Step 2: Insert the charger output header into the iCharger 48S Battery Charging Optimizer device input socket
• Step 3: Let the output of the iCharger 48S repair plug into the charging port of the battery bank
• Step 4: The iCharger 48S Battery Smart Pulse Charging Restore Device will automatically measure the battery voltage, if it is 36V battery Banks, "36V" indicator LED light, if it is a 48V battery bank, 48V indicator LED lights. After it is normal, please insert the input plug of the charger into the electrical outlet. The BR-48S restorer device will remove sulfated crystals in the charging process.
