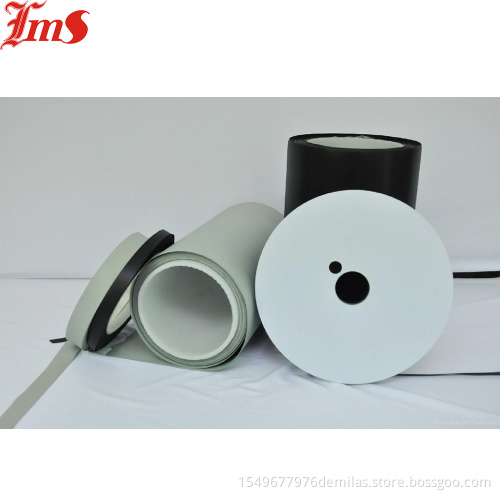

silicone rubber sheet roll Heat Transfer,Silicone Film and heat has super stable characteristics

silicone rubber sheet roll Heat Transfer,Silicone Film and heat has super stable characteristics

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product features:

1.Extremely high heat transfer, heat resistance and buffer.

2. Not to FPC, Glass and other damage.

3. The heat has super stable characteristics and the pressure on the product consistency.

4. High resilience and non-stick.

5. Antistatic, no powder on the surface.

Product specifications:

1,( 55657290,thick: 0.2mm--0.45mm) * (width: 8mm-600mm) * (length: 5-30m).

2, special specifications can be customized according to customer demand, and provide our customers customized various specifications of the iceberg.

3, the products are divided into common type SG (gray) and anti-static SGB (black).

4, the product is commonly used inside diameter 32mm, 38mm, can be customized according to customer demand.

Product application:

COG/FOG hot pressing bonding process for various display screens, ACF conductive film hot pressing, etc..

Product application:

application of various display COG\FOG hot state fixed process, or for transistor, IC and other electronic semiconductor products for insulation material, heat dissipation material use, or application in electric regulator and a temperature sensor, the advance on the bottom surface of the hot pressing head, the conduction temperature more uniform, the isolation is pressing products and head, and can prevent electrostatic isolation protection role.

Specifications:

Thickness:0.2mm~0.45mm

Width:8mm~600mm

Length:5m~30m

PROPERTY	STF20G	STF30G	STG40G	STF20B	STF30B	STF40B	METHOD
Thickness	0.2	0.3	0.4	0.2	0.3	0.4	Micrometer
Specific Gravity(g/cm³)	1.84	1.84	1.84	1.72	1.72	1.72	Hydrometer
Color	Grey	Grey	Grey	Black	Black	Black	Visual
Hardness(Shore A)	80	80	80	75	75	75	Shore Hardness
Surface	Matte	Matte	Matte	Matte	Matte	Matte	Visual
Use Temperature(℃)	-60~320	-60~320	-60~320	-60~320	-60~320	-60~320	High and Low Temperature Test Chamber
Volume Independence(Ω.cm)	10¹²	10¹²	10¹²	10⁸	10⁸	10⁸	High Resistant Meter
Thermal Conductivity(w/mk)	0.61	0.57	0.5	0.73	0.71	0.66	Thermal Conductivity Tester
Elongation(%)	165	172	177	170	176	180	Tensionmeter
Tensile Strength(Mpa)	6.0	6.4	7.0	6.3	6.9	7.3	Tensionmeter
Compression(Max%)	26	31	33	25	27	30	Tensionmeter
