Single Red P10-1r Outdoor LED Display Module
Your message must be between 20 to 2000 characters
Contact Now
Good news! Promotion now! Time waits for no one.
We have discount to clear single color led module inventory now!
--->For more details, please click here---<
|
Product
|
Stock quantity(pcs)
|
Price(EXW RMB/pc)
|
Price(EXW USD/pc)
|
Remark
|
|
Red
|
8544
|
25.5
|
3.86
|
Power cable and signal cable were included
|
|
White
|
4500
|
28.5
|
4.32
|
|
|
Green
|
4920
|
28.5
|
4.32
|

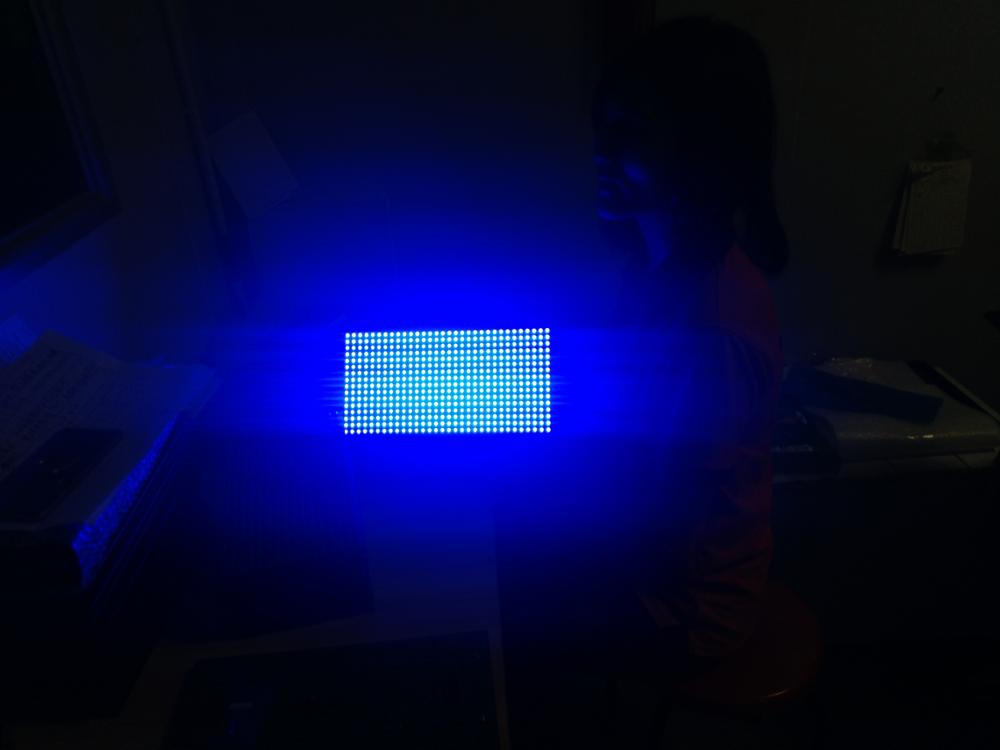

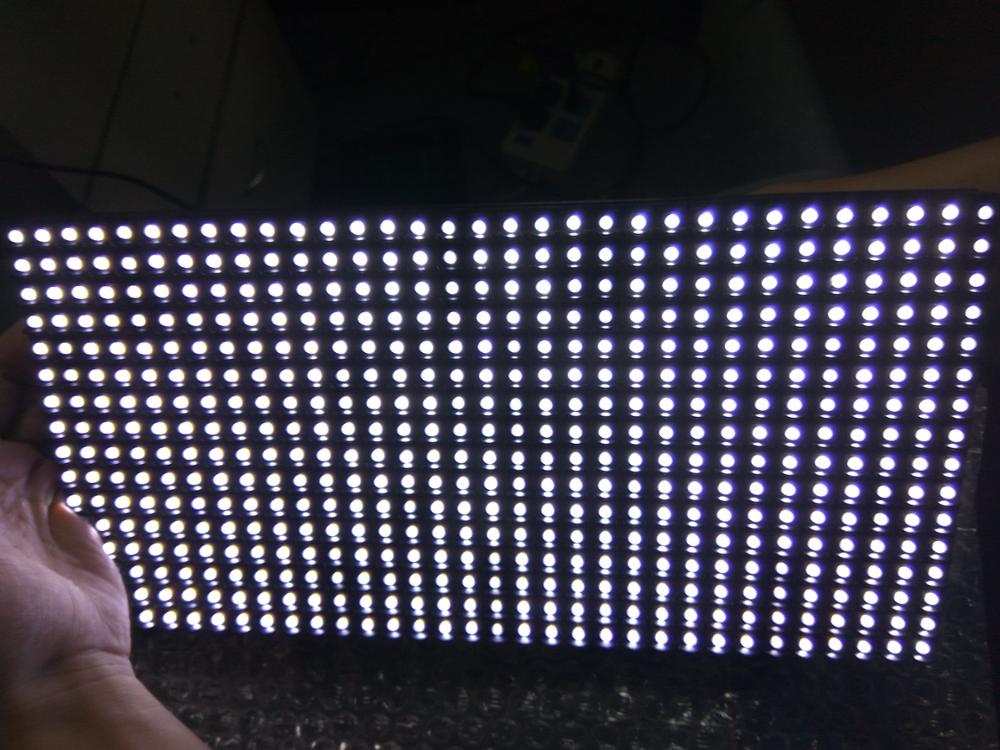

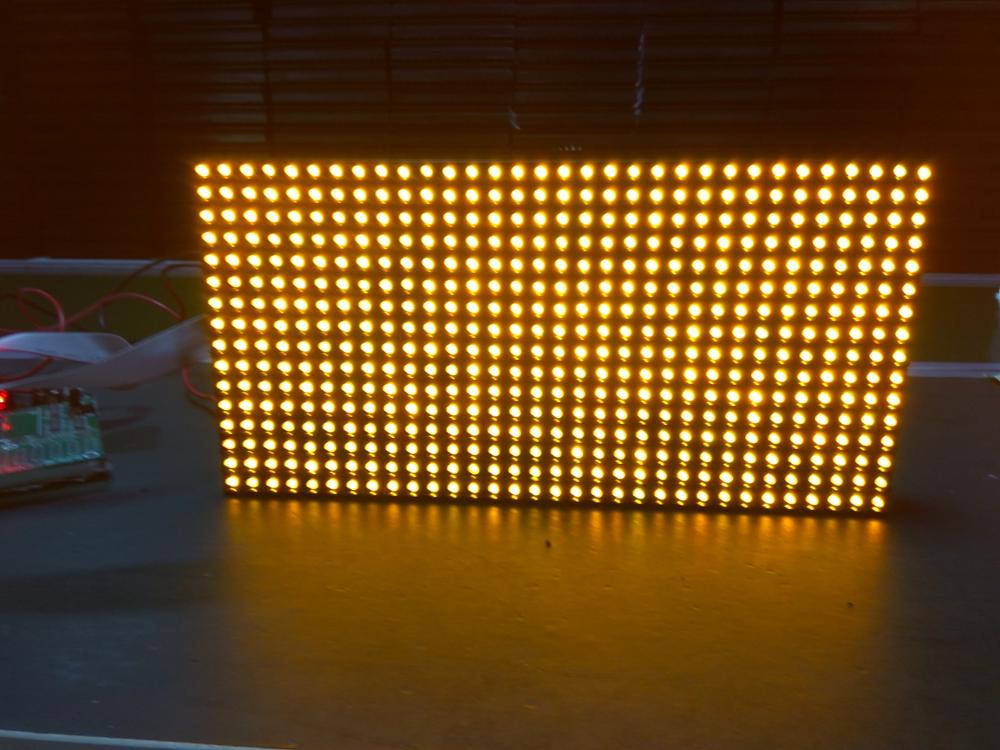

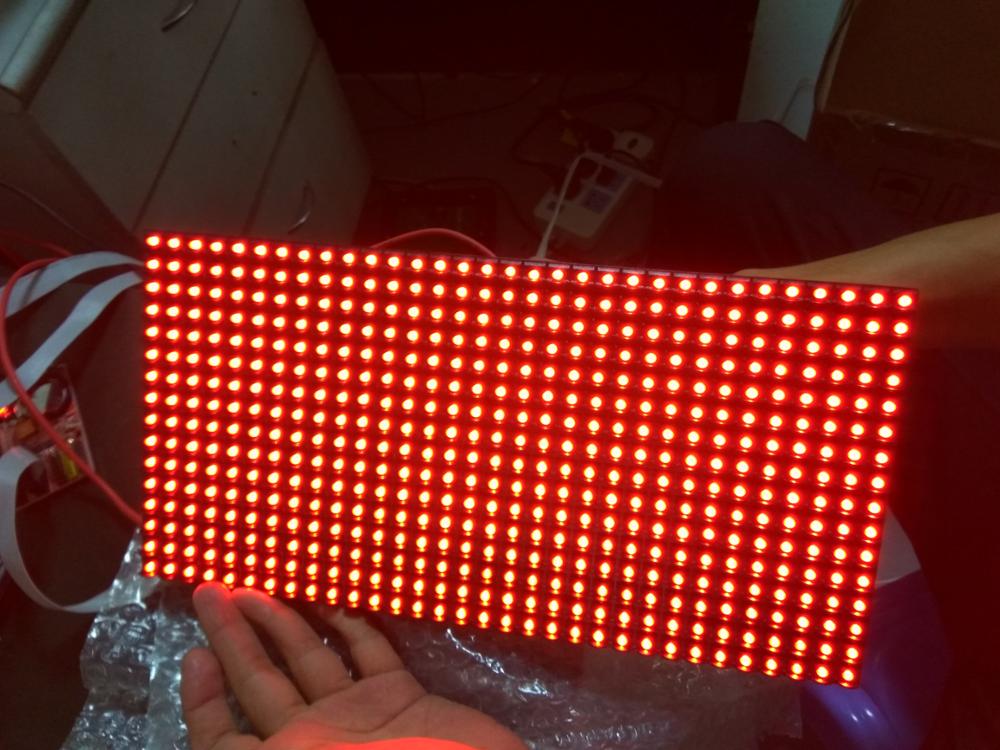

Product pictures
We are the biggest manufacturer of single color LED module in China.
We can say 70% DIP module orders are placed to Joy in China !
No matter you place your orders to which company, they will find Joy in the end !

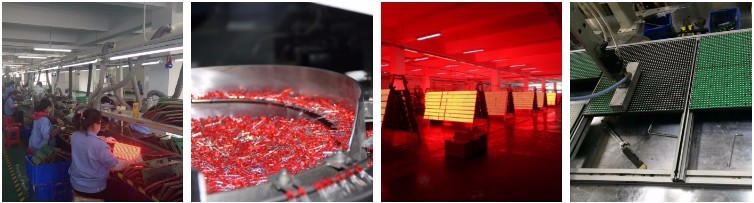

We have our own PCB and encapsulation factories for better quality and cheaper price.

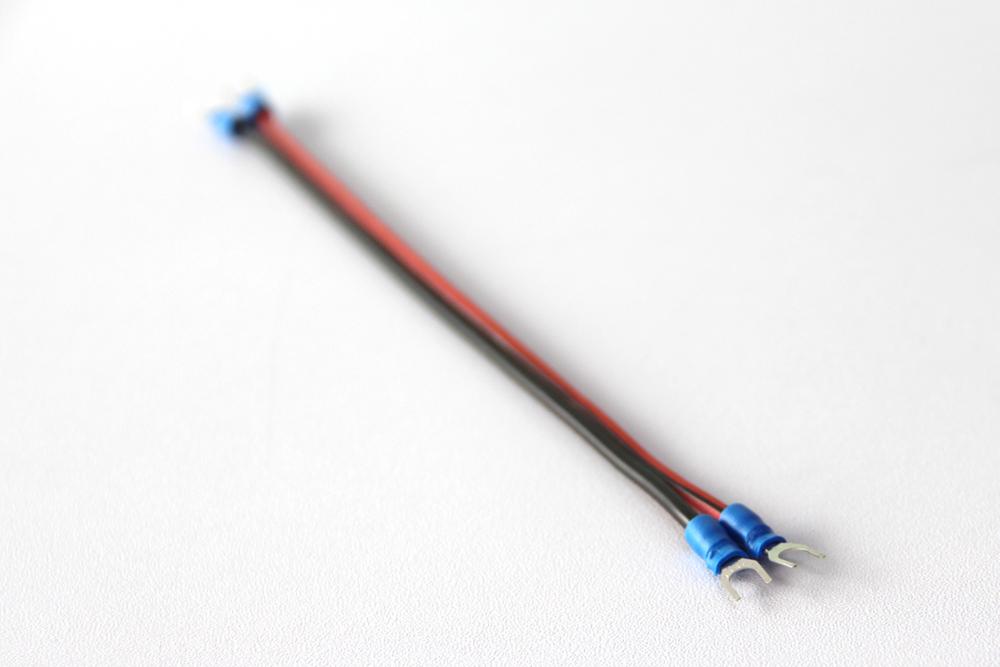

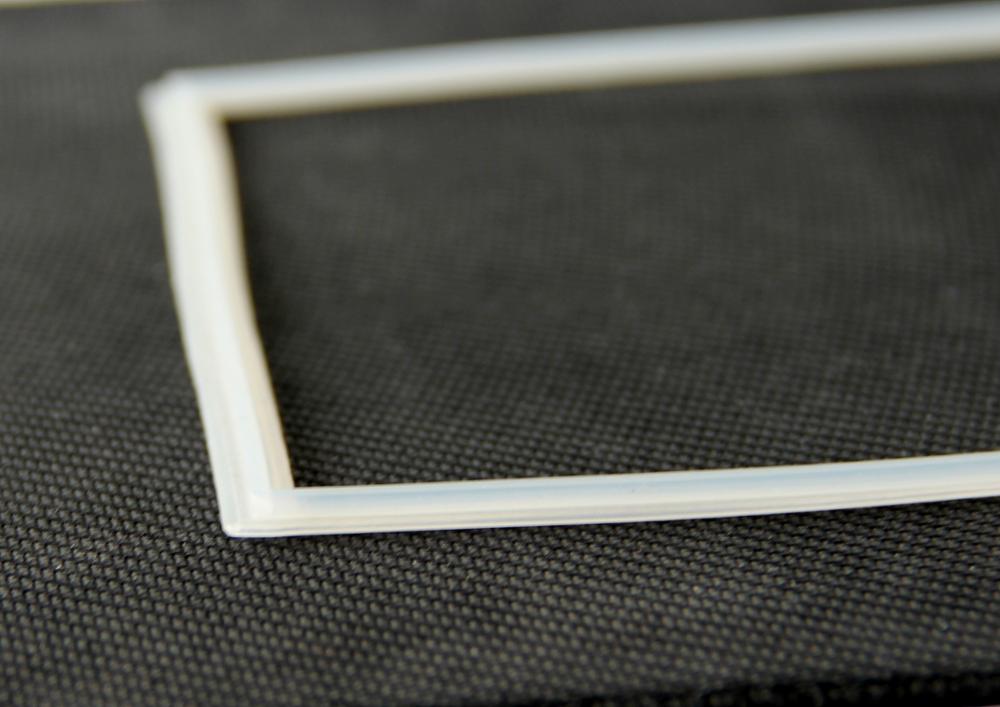

power cable signal cable waterproof seal glue
--->Click here for good price<---

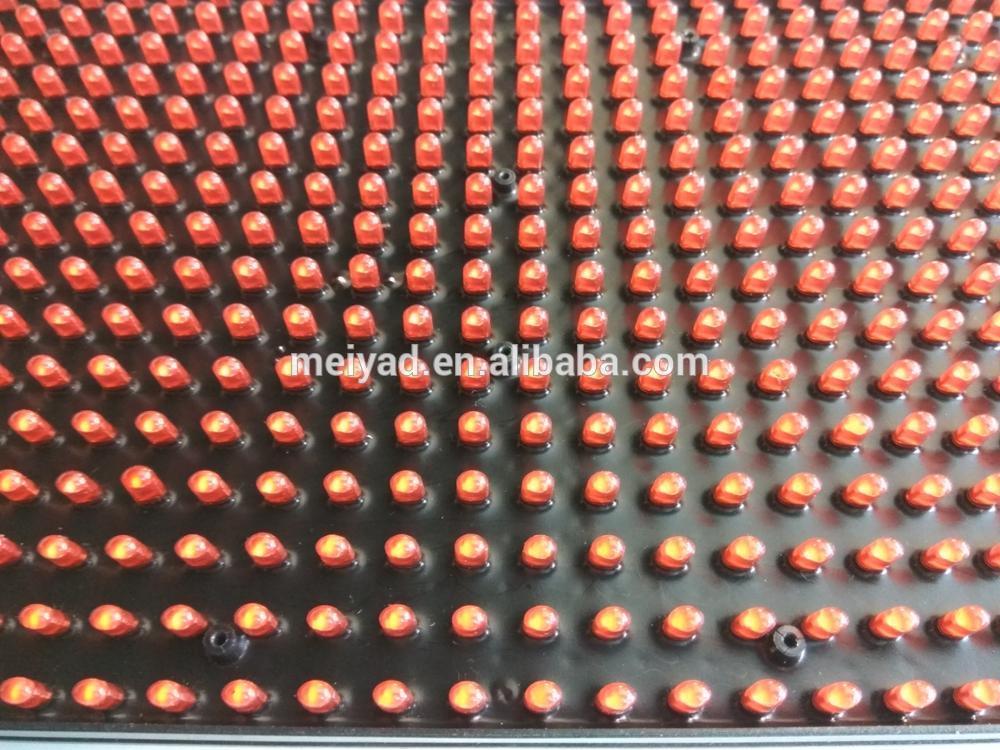

p10-1r outdoor led display module
Specification
|
Pixel Pitch
|
10mm
|
|
Usage
|
Outdoor
|
|
LED type
|
DIP546
|
|
Pixel Resolution
|
10,000dots/m²
|
|
Module resolution
|
(W)32 x (H)16 pixels
|
|
Module Size
|
(W)320mm x (H)160mm
|
|
Module weight
|
Around 500g
|
|
Scan Mode
|
1/4
|
|
Working Voltage
|
DC5V±10%
|
|
Max Module Current
|
5A(typical)①
|
|
Max Power Consumption
|
20W(typical)②
|
|
Power Interface
|
VH4
|
|
Signal Interface
|
HUB12
|
|
Max Brightness
|
red:1800nits, green:4000nits, blue:1500nits, white:8000nits, yellow:1500nits
|
|
Viewing Angle(H/V)
|
110°/55°
|
|
Best Viewing Distance
|
10-100m
|
|
Refresh rate
|
≥960Hz
|
|
Life spam
|
100,000 Hour
|
|
Working temperature
|
-10 ℃ ~ 60℃
|
|
Warranty
|
1 year
|
① ②Different batch different data,only for reference

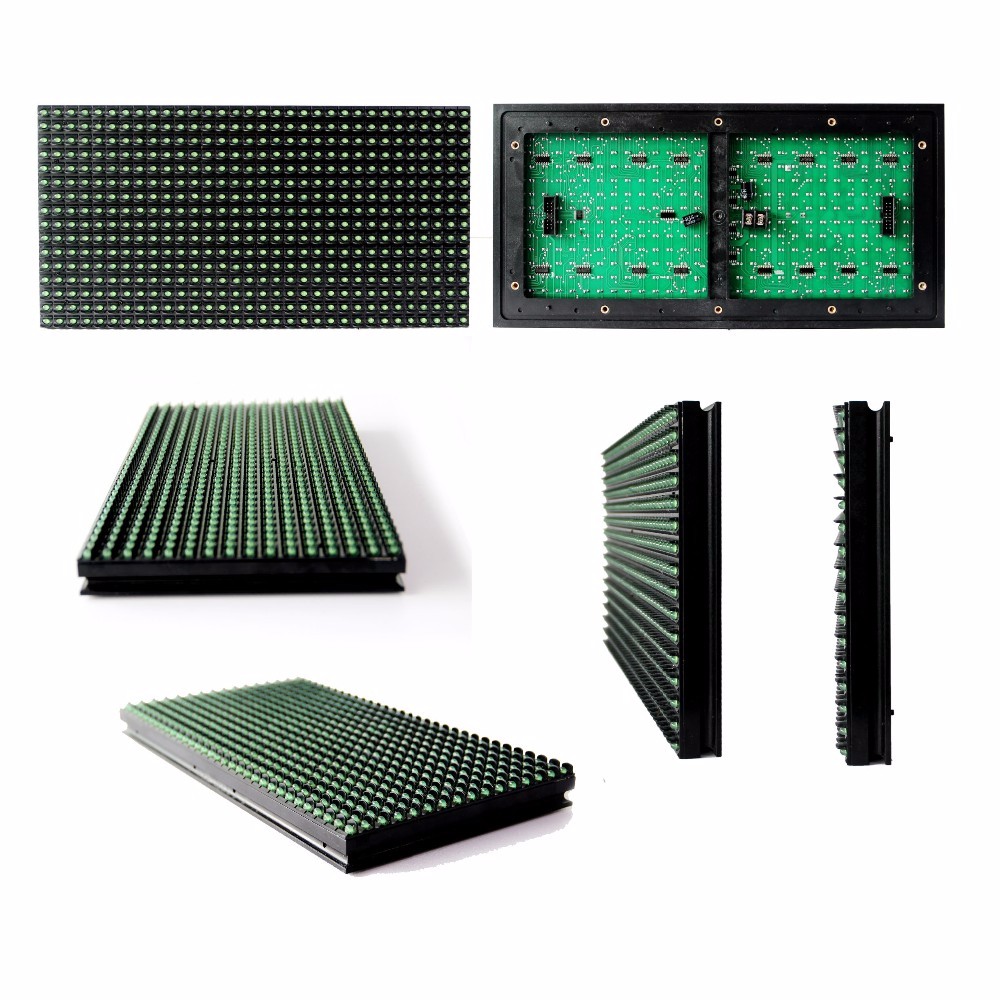

p10-1r outdoor led display module
Shenzhen Joy LED Display Co., Ltd. is a LED electronic display and LED lighting application products. It is invested by three senior LED industry professionals in China. It integrates R&D, production, sales, engineering, and after-sales services. High-tech companies, adhering to the unique advantages in the field of LED display and control, the company has fullyintroduced the ISO9000 series quality management system, the production process in strict accordance with the requirements of RoHS and CE directives pay attention to every job details in the manufacturing process management Lean management, strive for perfection, is a medium-sized enterprise producing high-tech electronic display products.
