SMD High Brightness Rental LED Displays
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Welcome To Joy LED
Product Description
|
Pixel Pitch
|
3.91mm
|
4.81mm
|
5.95mm
|
|
Pixel Resolution
|
65,536dots/m²
|
43,264dots/m²
|
28,224dots/m²
|
|
Module Resolution
|
(W)64 x (H)64pixels
|
(W)52 x (H)52 pixels
|
(W)42 x (H)42 pixels
|
|
Module Size
|
(W)250mm x (H)250mm
|
(W)250mm x (H)250mm
|
(W)250mm x (H)250mm
|
|
Module Weight
|
Around 720g
|
Around 720g
|
Around 720g
|
|
Driver Mode
|
Current Driving
|
Current Driving
|
Current Driving
|
|
Scan Mode
|
1/32S
|
1/13S
|
1/7S
|
|
Operation Voltage
|
DC5V±10%
|
DC5V±10%
|
DC5V±10%
|
|
Max Module Current
|
Around 8A(typical)
|
Around 7.5A(typical)
|
Around 8A(typical)
|
|
Max Power Consumption
|
Around 40W(typical)
|
Around 37.5W(typical)
|
Around 40W(typical)
|
|
Power Interface
|
VH4
|
VH4
|
VH4
|
|
Signal Interface
|
HUB75D (IDC16)
|
HUB75D (IDC16)
|
HUB75D (IDC16)
|
|
Max Brightness
|
6500cd/m²
|
6500cd/m²
|
6500cd/m²
|
|
Color Temperature
|
9500K
|
9500K
|
9500K
|
|
Viewing Angle(H/V)
|
120°/120°
|
120°/120°
|
120°/120°
|
|
Best Viewing Distance
|
4-40m
|
5-50m
|
6-60m
|
|
Grey Level
|
14bits
|
14bits
|
14bits
|
|
Brightness Calibration
|
supported
|
supported
|
supported
|
|
Refresh Rate
|
≥1920Hz
|
≥1920Hz
|
≥1920Hz
|
|
Brightness Adjust Rang
|
0 to 255 adjustable
|
0 to 255 adjustable
|
0 to 255 adjustable
|
|
Life Span
|
50,000 Hour
|
50,000 Hour
|
50,000 Hour
|
|
Operation Temperature
|
-20 ℃ ~ 60 ℃
|
-20 ℃ ~ 60 ℃
|
-20 ℃ ~ 60 ℃
|
|
Operation Humidity
|
10%-90%RH without condensation
|
10%-90%RH without condensation
|
10%-90%RH without condensation
|
|
Stock Temperature
|
-40 ℃ ~ 80 ℃
|
-40 ℃ ~ 80 ℃
|
-40 ℃ ~ 80 ℃
|

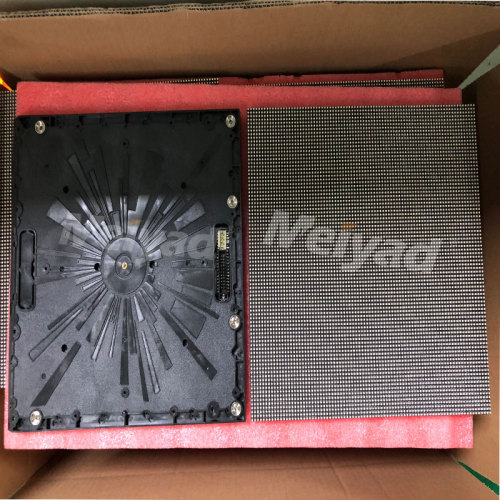

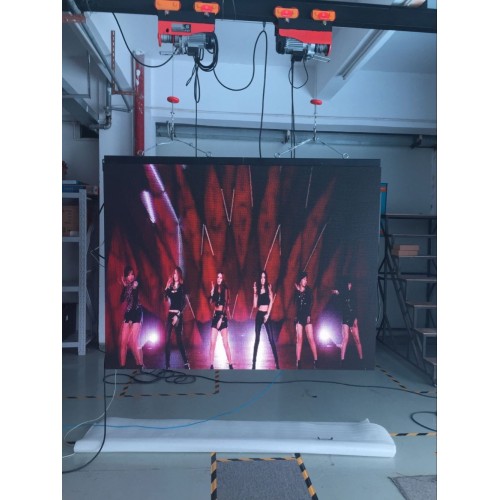

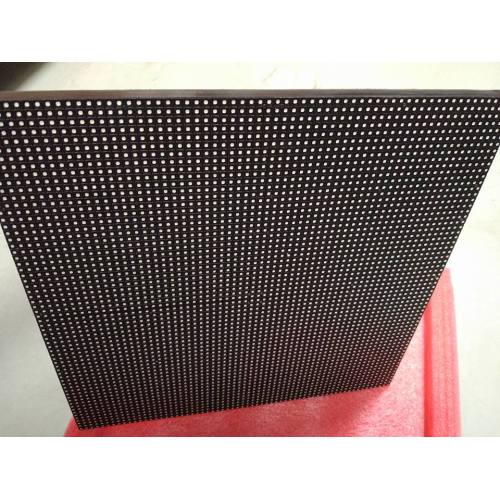

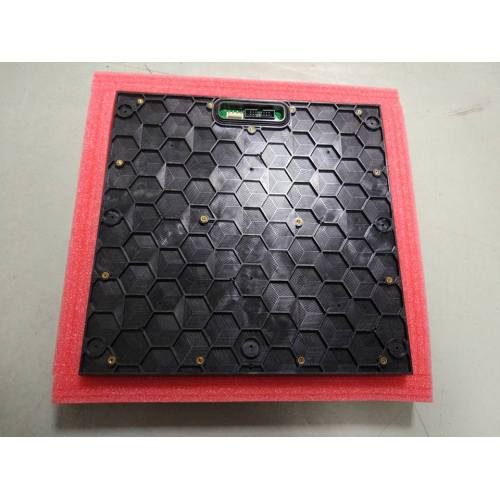

Detailed Images
