Outdoor P6 LED display screen full color module
Your message must be between 20 to 2000 characters

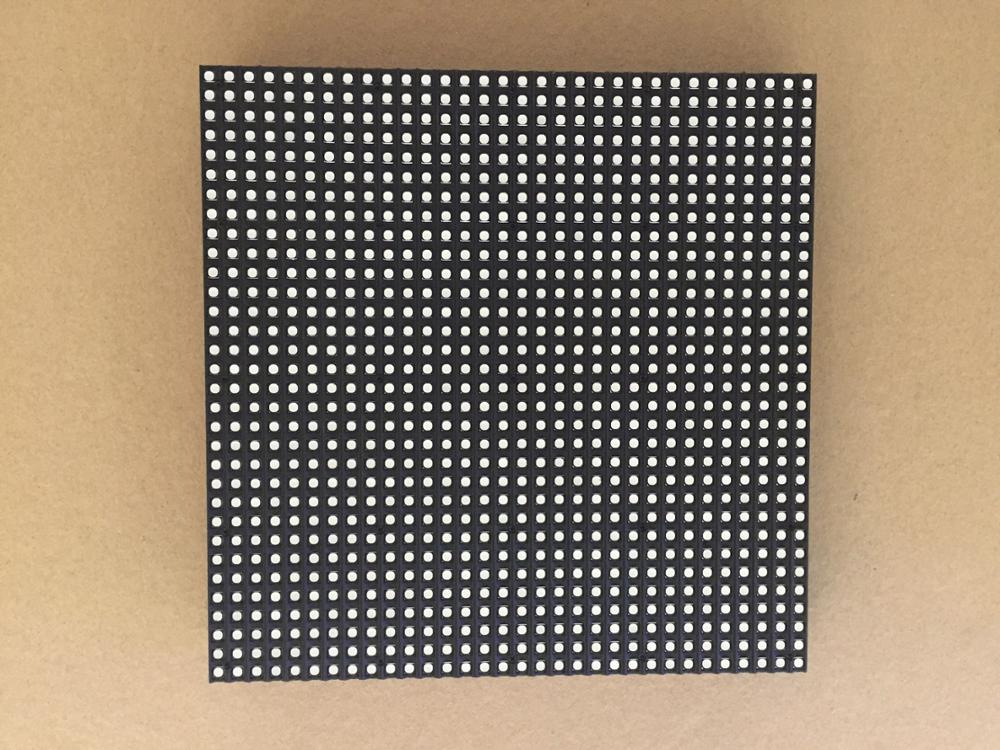

Contact Nowoutdoor P6 full color LED module,192x192mm outdoor smd p6 led display screen
Specification
|
Pixel Pitch
|
6mm
|
|
Pixel Resolution
|
27777dots/m²
|
|
Module resolution
|
(W)32x (H)32 pixels
|
|
Module Size
|
(W)192mm x (H)192mm x(D)12mm
|
|
Module weight
|
Around 230g
|
|
Driver Mode
|
Current Driving
|
|
Scan Mode
|
1/8S
|
|
Working Voltage
|
DC5V±10%
|
|
Max Module Current
|
5A(typical)①
|
|
Max Power Consumption
|
25W(typical)②
|
|
Power Interface
|
VH4
|
|
Signal Interface
|
HUB75D (IDC16)
|
|
Max Brightness
|
≥5500cd/m²
|
|
Color Temperator
|
9500K
|
|
Viewing Angle(H/V)
|
140°/140°
|
|
Best Viewing Distance
|
6-60M
|
|
Refresh rate
|
≥1920Hz
|
|
Life spam
|
50,000 Hour
|
|
Operation temperature
|
-20 ℃ ~ 60 ℃
|
|
Operation humidity
|
10%-90%RH (without condensation)
|
|
Stock temperature
|
-40 ℃ ~ 80 ℃
|
① ②Different batch different data,only for reference
