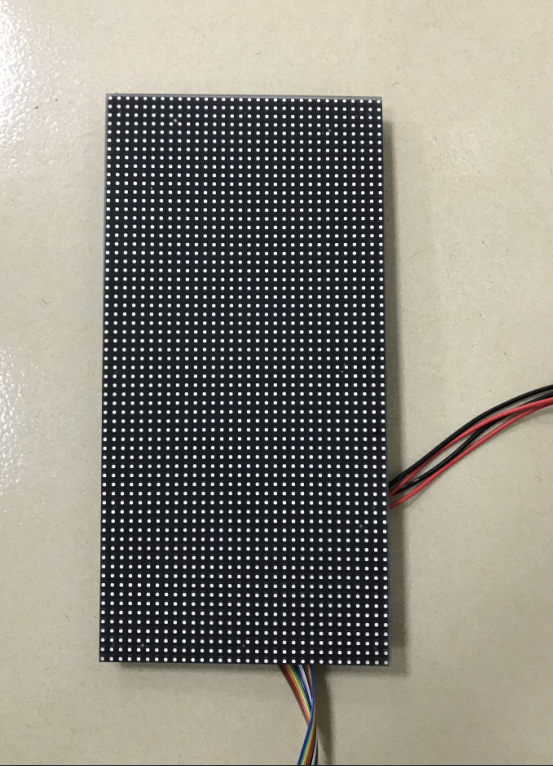

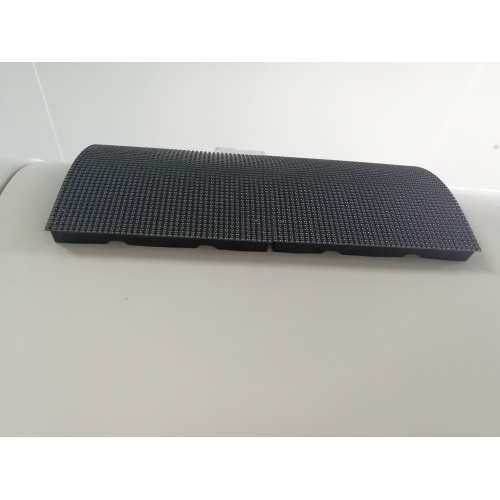

Indoor P3 Full Color Flexible LED Panel Screen

Indoor P3 Full Color Flexible LED Panel Screen

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

JoyLED is specilized in LED Display, which widely in industries of advertisement, pub, airport, station, harbor, gym, banks, school, factory, post office, department store, hospital, revenue office, customer, supervising centre, etc. All the products are exported to America, Russia, Great Britain, France, Austrilia, Greece, Italy, Japan, South Korea, Taiwan, Kazakhstan, etc.

Our company owns a group of high-quality professional and technical personnel and advanced modern sophisticated production equipment. We implement strict quality management, making every LED module,LED display cabinet,Power supply ,Video processor ,LED display into competitive products, etc. From the purchasing of the raw material to manufacturing, assembling, testing, we carry out every step one by one according to the ISO9001:2000 international quality control system strictly to guarantee the quality. And our products have passed the ISO14001:2004 international environment guarantee system certificate and European CE certification.

Product Description

Item	Parameter
Pixel Pitch	3mm
Pixel Resolution	111111dots/㎡
Module Resolution	W80 X H40 pixel

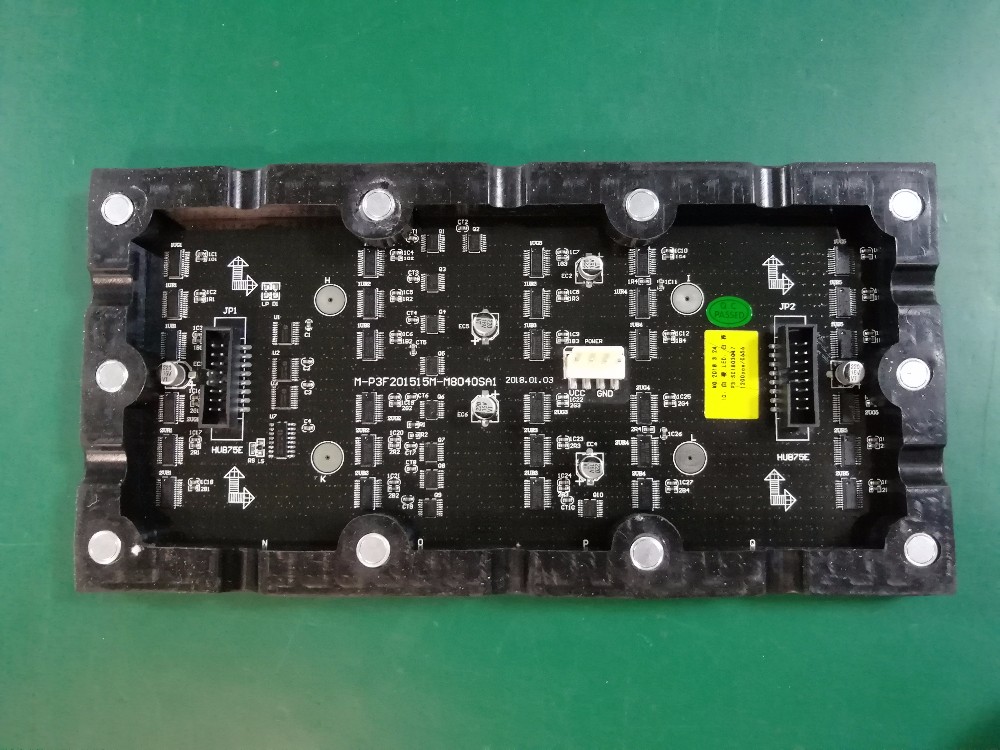

PCB Material	0.6mm flexible PCB
Operation Voltage	DC5V±10%
Max Power Con.	around 25W(typical)
Power Interface	VH4
Signal Interfac	HUB75D(IDC16)
Max Module Current	around 5.1A(typical)
Refresh rate	1920Hz

Features

1-Soft silicone frame with patents.

2-Shenzhen Meiyad is the first factory which make indoor flexible P3 led panel.

3-Higher resolution compared with P4 flexible.

4-Nationstar smd1515 led lamp, Gold line or Copper line.

5-Ultra wide viewing angle: horizontal and vertical viewing angle (both 140°), obtain good display effects at different viewing angle.

Detailed Images

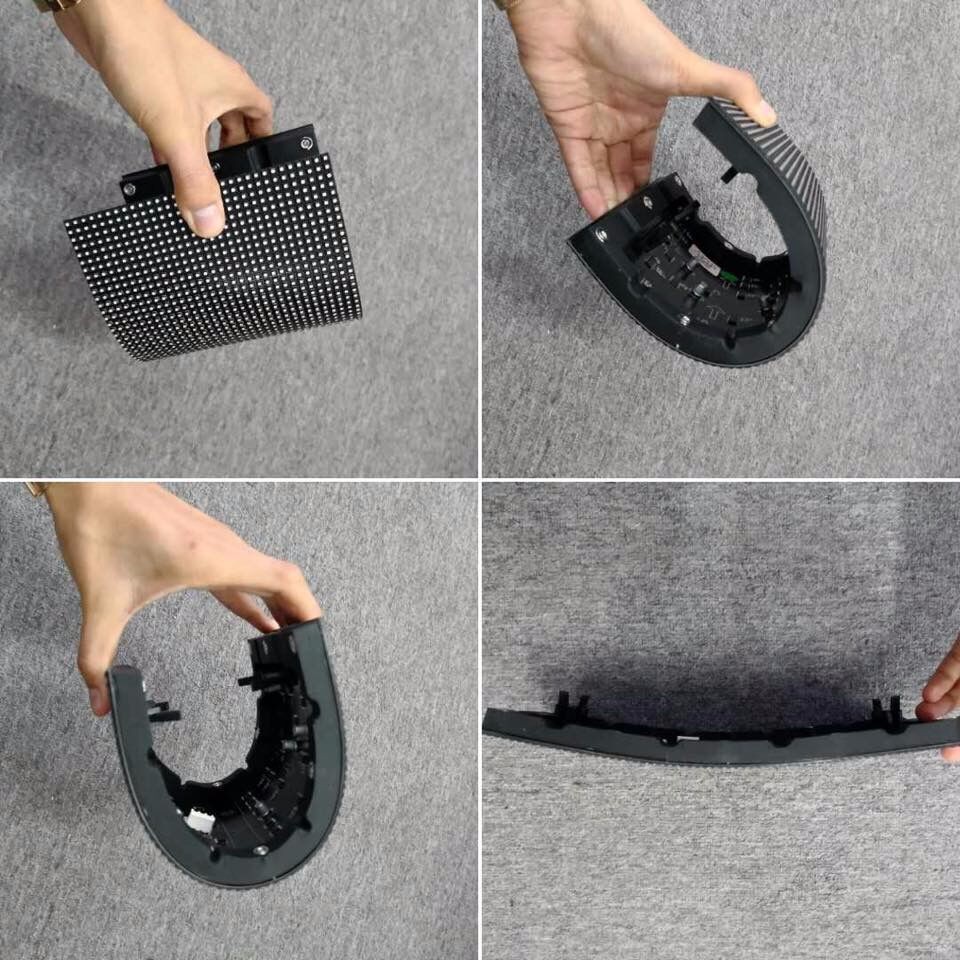

1. Strong cylinder, soft mask (patent)
2. Eliminate the short circuit, and the"caterpillar phenomenon"of LED display
3. Eliminate interference phenomenon of high contrast
4. Support chromaticity and brightness calibration
5. Apply ultra-long-life and power supply, whose efficency is about 90%
6. standard computer interface, easy maintenance, running more stable
7. Built-in air switch, inrush current protector, more security

Design for Bar Lobby.

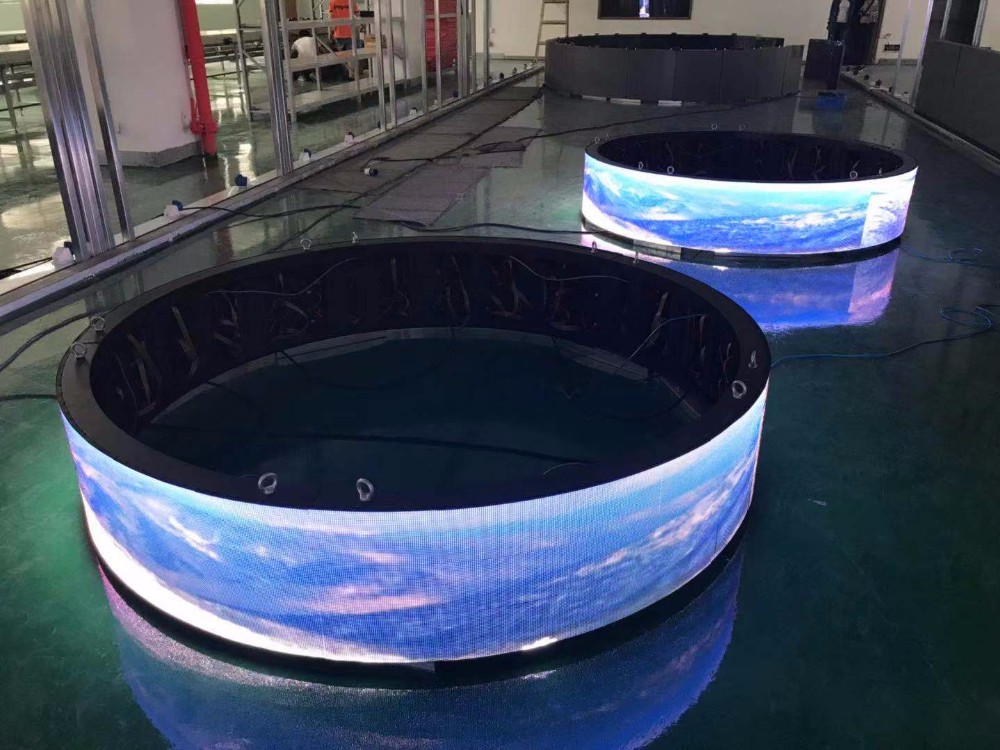

Same steps with cylinder led screen.

Indoor P2.5 led Module

Size: 240120mm

Indoor P4 led Module

Size: 256128mm

Outdoor P4 led module

Size: 256*128mm
