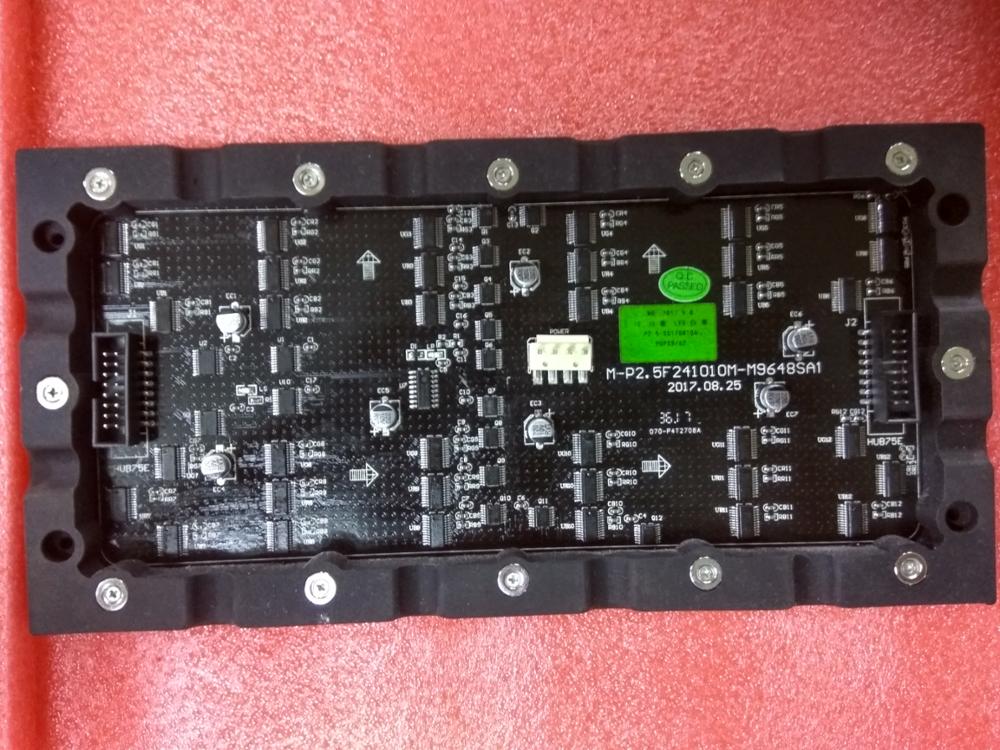

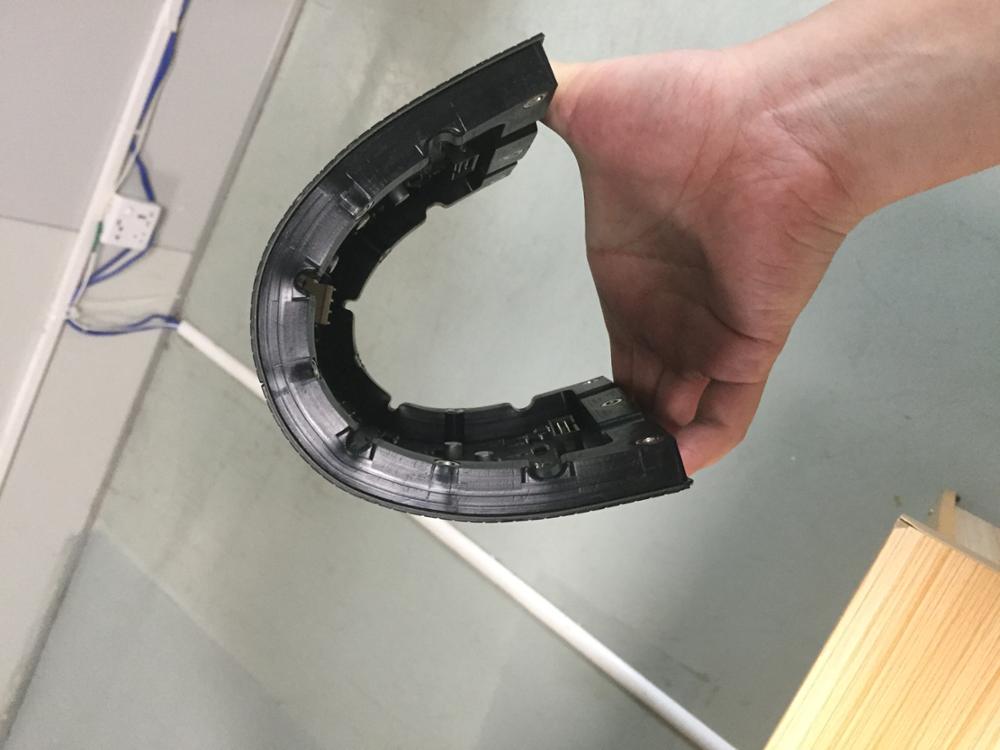

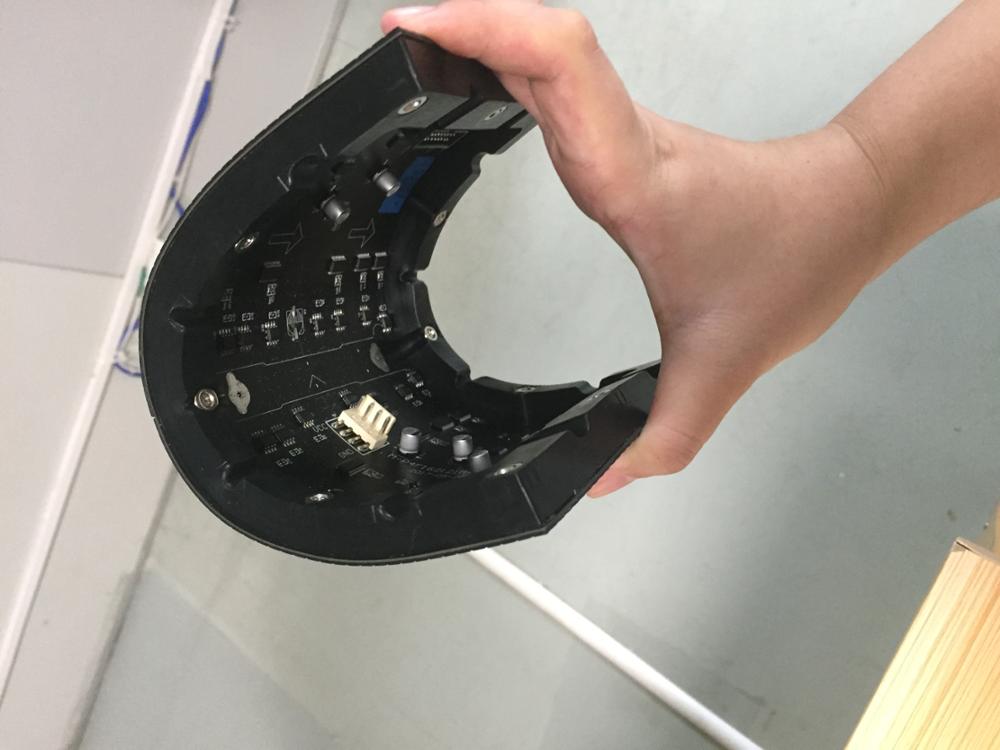

Indoor full color P2.5 flexible LED module, 240x120mm,patent soft mask was launched later flexible led panel
Joy LED indoor full color P2.5 flexible LED display module, flexible led panel
--patent soft mask to protect LED lamp
--silicon frame for better flatness
--12 strong magnets for better flatness
Specification
|
Pixel Pitch
|
2.5mm
|
|
Pixel Resolution
|
160,000dots/m²
|
|
Module resolution
|
(W)96 x (H)48 pixels
|
|
Module Size
|
(W)240mm x (H)120mm x(D)13.4mm (includes silicon frame)
|
|
Module weight
|
Around 0.1Kg
|
|
Driver Mode
|
Current Driving
|
|
Scan Mode
|
1/24
|
|
Working Voltage
|
DC5V±10%
|
|
Max Module Current
|
4.8A(typical)①
|
|
Max Power Consumption
|
24W(typical)②
|
|
Power Interface
|
VH4
|
|
Signal Interface
|
HUB75D (IDC16)
|
|
Max Brightness
|
≥1000cd/m²
|
|
Color Temperator
|
9000±500K
|
|
Viewing Angle(H/V)
|
140°/140°
|
|
Best Viewing Distance
|
2-20m
|
|
Refresh rate
|
≥1920Hz
|
|
Life spam
|
100,000 Hour
|
|
Operation temperature
|
-20 ℃ ~ 60 ℃
|
|
Operation humidity
|
10%-80%RH (without condensation)
|
|
Stock temperature
|
-40 ℃ ~ 80 ℃
|
|
Cabinet input working voltage
|
AC220V±10% 50Hz (AC110V can be chosen)
|
|
Cabinet weight
|
6.25Kg ( includes modules, control system and power supply )
|
① ②Different batch different data,only for reference
--->Click here for good price<---

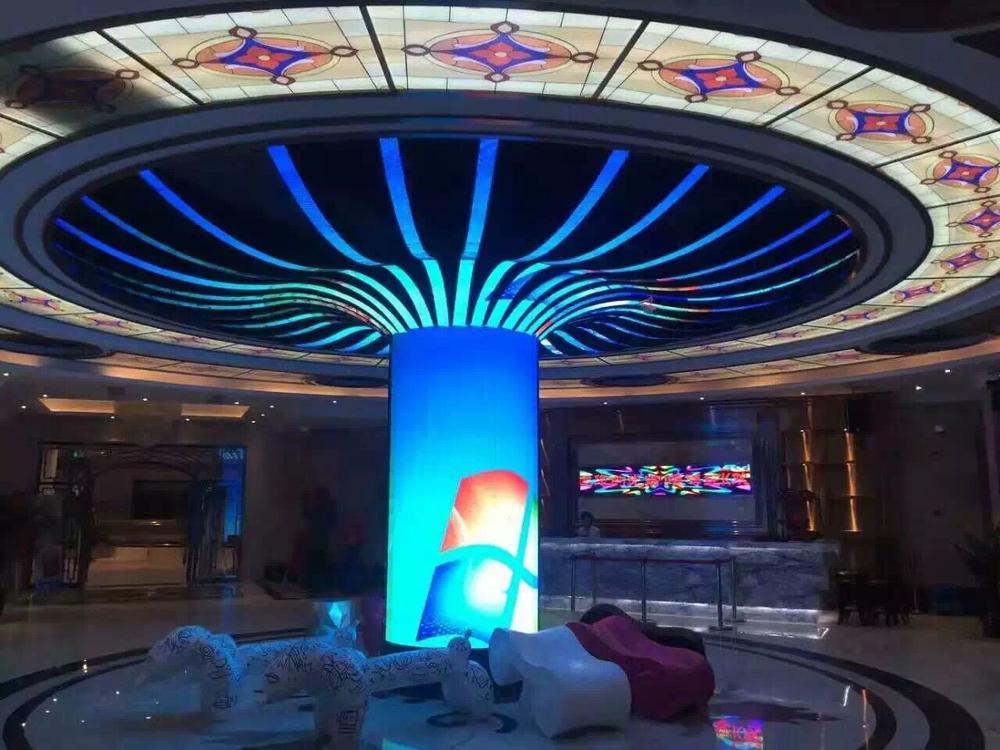

Cases--P2.5 flexible project flexible led panel

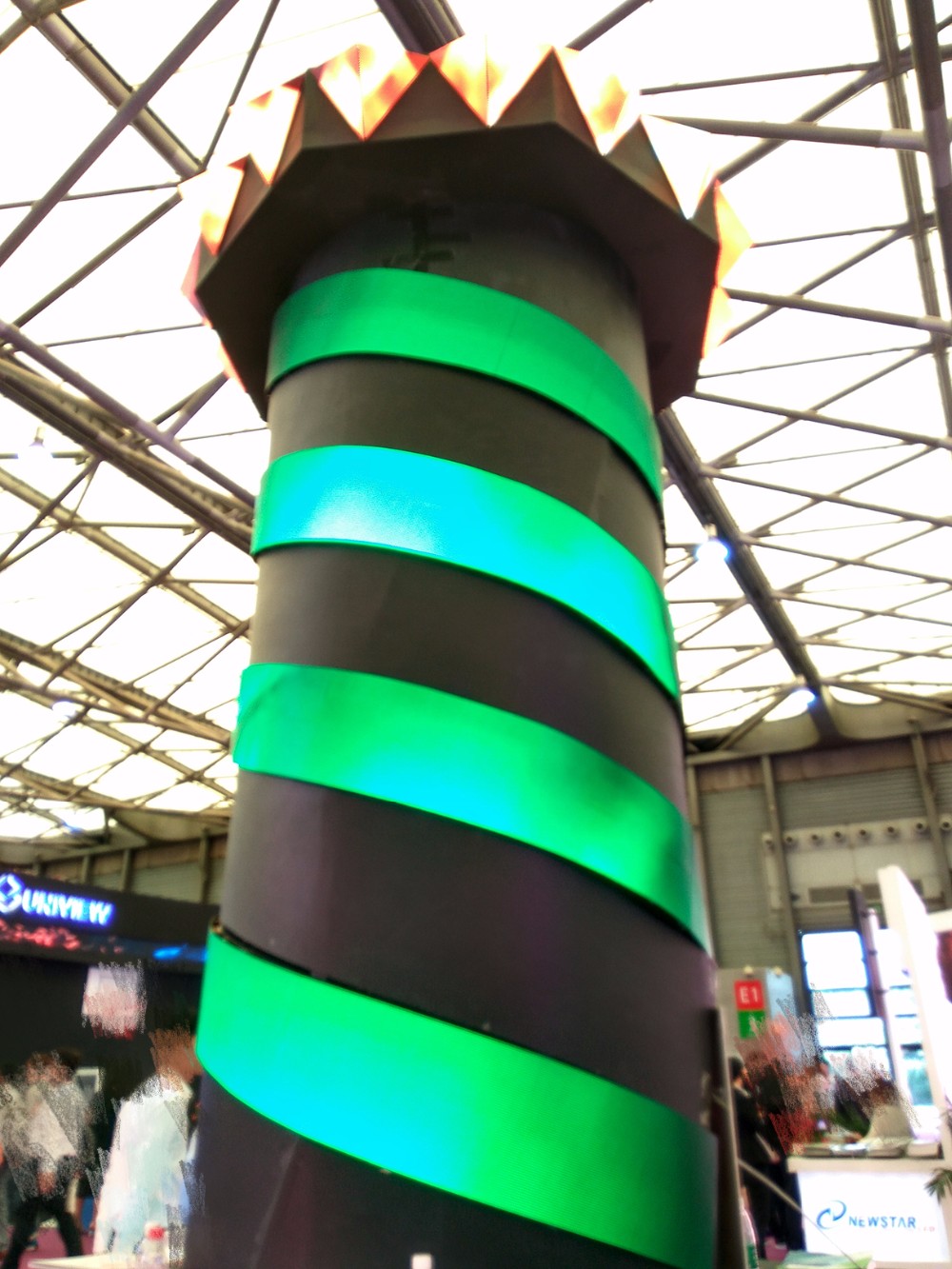

booth in Shanghai exhibition#LED China 2017
flexible led panel

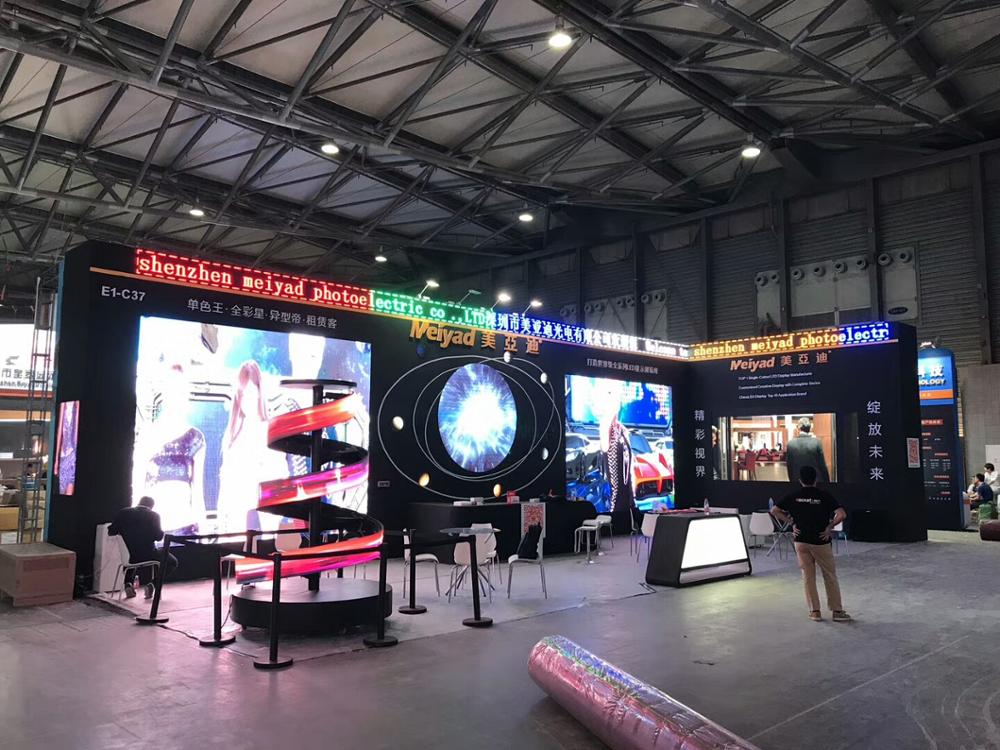

booth in Shanghai exhibition#LED China 2017
flexible led panel

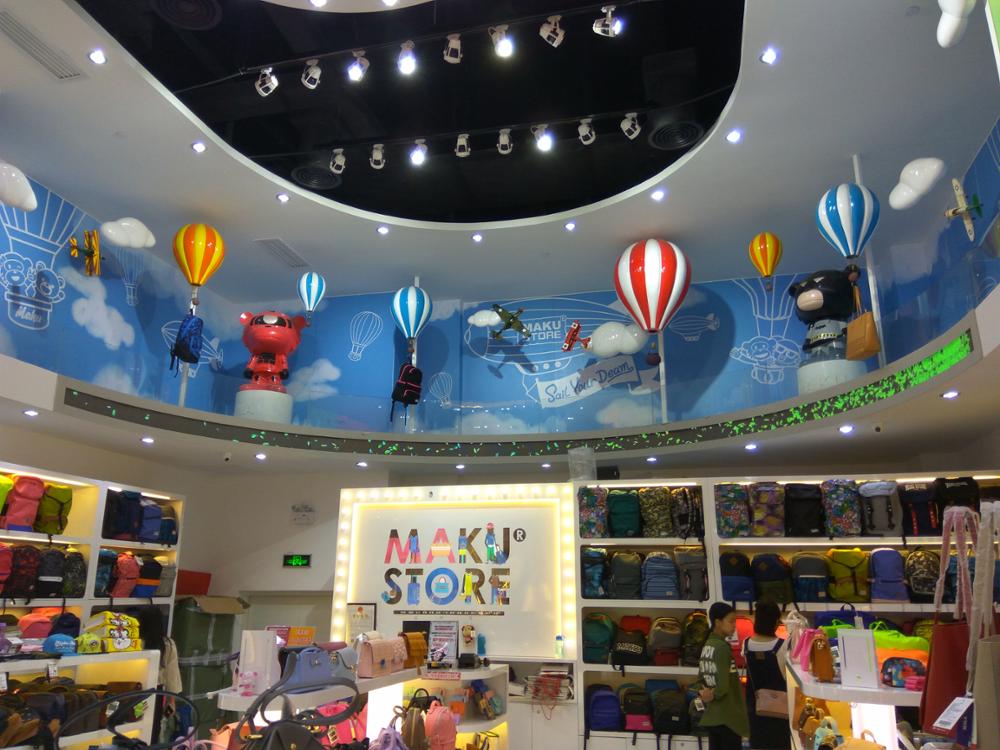

flexible led panel case
flexible led panel case
-

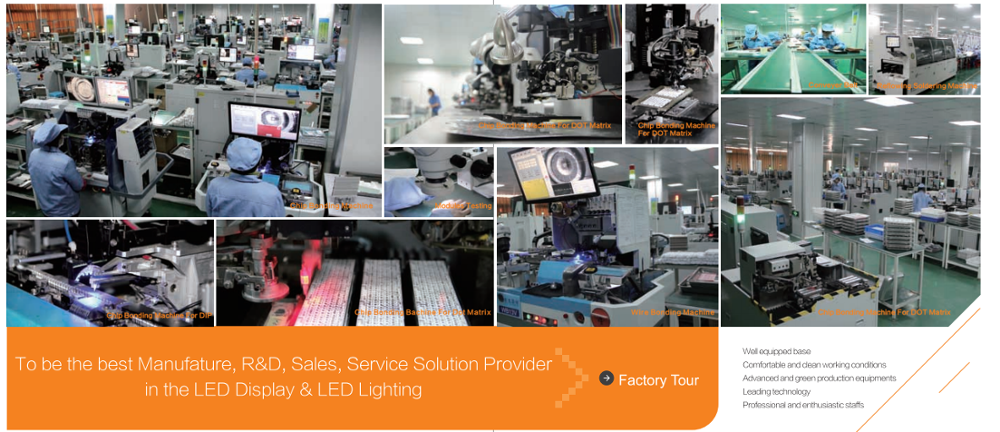

Some more information about our company.
1.Production capacity: 450,000sqm factory base, 2000 skilled workers.
2.Production line: 150 LED encapsulation lines, 200 DIP lines, 30 SMD lines.
3.Lower Price: we have our own PCB and encapsulation factory for lower price.
4.Short Delivery time: we have professional team to produce good products for you in our shortest time.
5.Certificate: our quality meet FCC/ROHS/CE/CCC standard.
6.Good Service: we are technical assistance for all of our products, always available to our clients for any problem.
Packing
1.Carton case
2.Honeycomb case
3.Plywood case
4.Flight case
Delivery
It takes about 5-15 working days after receipt of deposit and signed PI.
If you are interested in P2.5 flexible module/ flexible led panel, please do not hesitate to contact me :)
