Indoor Flexible Soft roll Up LED Display Screens
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Product Description
|
Pixel Pitch
|
2.5mm
|
3mm
|
4mm
|
|
Pixel Resolution
|
160,000dots/m²
|
111,111dots/m²
|
62,500dots/m²
|
|
Module Resolution
|
(W)96 x (H)48 pixels
|
(W)80 x (H)40 pixels
|
(W)64 x (H)32 pixels
|
|
Module Size
|
(W)240mm x (H)120mm
|
(W)240mm x (H)120mm
|
(W)256mm x (H)128mm
|
|
Module Weight
|
Around 235g
|
Around 235g
|
Around 235g
|
|
Driver Mode
|
Current Driving
|
Current Driving
|
Current Driving
|
|
Scan Mode
|
1/24S
|
1/20S
|
1/16S
|
|
Operation Voltage
|
DC5V±10%
|
DC5V±10%
|
DC5V±10%
|
|
Max Module Current
|
Around 6.5A(typical)
|
Around 5A(typical)
|
Around 5A(typical)
|
|
Max Power Consumption
|
Around 32.5W(typical)
|
Around 25W(typical)
|
Around 25W(typical)
|
|
Power Interface
|
VH4
|
VH4
|
VH4
|
|
Signal Interface
|
HUB75D (IDC16)
|
HUB75D (IDC16)
|
HUB75D (IDC16)
|
|
Max Brightness
|
1000cd/m²
|
1000cd/m²
|
1100cd/m²
|
|
Color Temperature
|
9500K
|
9500K
|
9500K
|
|
Viewing Angle(H/V)
|
120°/120°
|
120°/120°
|
120°/120°
|
|
Best Viewing Distance
|
2.5-25m
|
3-30m
|
4-40m
|
|
Grey Level
|
14bits
|
14bits
|
14bits
|
|
Brightness Calibration
|
supported
|
supported
|
supported
|
|
Refresh Rate
|
≥1920Hz
|
≥1920Hz
|
≥1920Hz
|
|
Capacity
|
Width 96pixels Height 240pixel (Max)
|
Width 80pixels Height 240pixel (Max)
|
Width 128pixels Height 256pixel (Max)
|
|
Brightness Adjust Rang
|
0 to 255 adjustable
|
0 to 255 adjustable
|
0 to 255 adjustable
|
|
Life Span
|
50,000 Hour
|
50,000 Hour
|
50,000 Hour
|
|
Operation Temperature
|
-20 ℃ ~ 60 ℃
|
-20 ℃ ~ 60 ℃
|
-20 ℃ ~ 60 ℃
|
|
Operation Humidity
|
10%-90%RH without condensation
|
10%-90%RH without condensation
|
10%-90%RH without condensation
|
|
Stock Temperature
|
-40 ℃ ~ 80 ℃
|
-40 ℃ ~ 80 ℃
|
-40 ℃ ~ 80 ℃
|

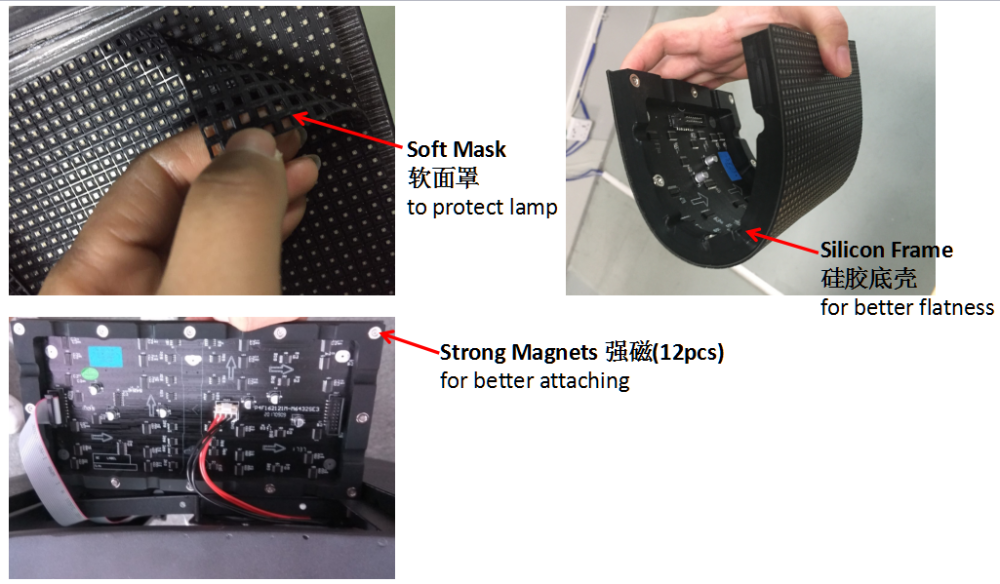

Detailed Images
