PD +PD 40W Type C Fast Charging Adapter

PD +PD 40W Type C Fast Charging Adapter

This Phone charger is a new design which has a rated output power of 40W in total, the difference as traditional 20W PD Charger, it has a double type c port . The dual-port design can satisfy the charging of two devices at the same time, such as teaming up with friends to open the dark, and two people playing games while charging, so there is no need to worry about the lack of power on the mobile phone.

The us plug adopts a foldable design. Such a small detail can not only reduce the carrying area of the charger by 30%, but also effectively avoid the situation of being scratched when it is placed with other items. All its plug is made of copper nickel-plated material, and the body shell is made of high-gloss, environmentally friendly plastic flame-retardant material. Overall, it has excellent high temperature resistance, fire resistance, and scratch resistance, and the safety factor is full.

The PD 40W Mobile Phone Charger can be compatible with PD, Huawei SCP and Xiaomi QC3.0 and other fast charging protocols. In addition to charging mobile phones, it can also fast charge devices such as tablets and notebooks, and also supports data transmission.

The Specifications of the wall charger:

 USB C PD Charger 40W
Input voltage: AC 100-240V 50-60Hz
2. Output:  5V 3A/9V 2.22A/12v 1.66A
3.Port : Type c *2
3. Power: 40W
5. Color: White
6. Plug: EU, US, UK

Work efficiency: 85%

Voltage regulation rate: 5%
Working temperature: 0-50 ℃
Output ripple & noise: 80-120mVp
Output protection: short circuit protection, overvoltage protection, overcharge protection, overheat protection
Storage temperature: -20 ℃ + 80 ℃
Aging: 100% full load aging
Protection function: Overload protection 105% -150% of rated power, can be automatically protected
Insulation resistance: input-output ≥500MΩ input-case ≥500MΩ
Applicable products: smart phones, tablet computers, digital electronics and other equipment.

Pictures:

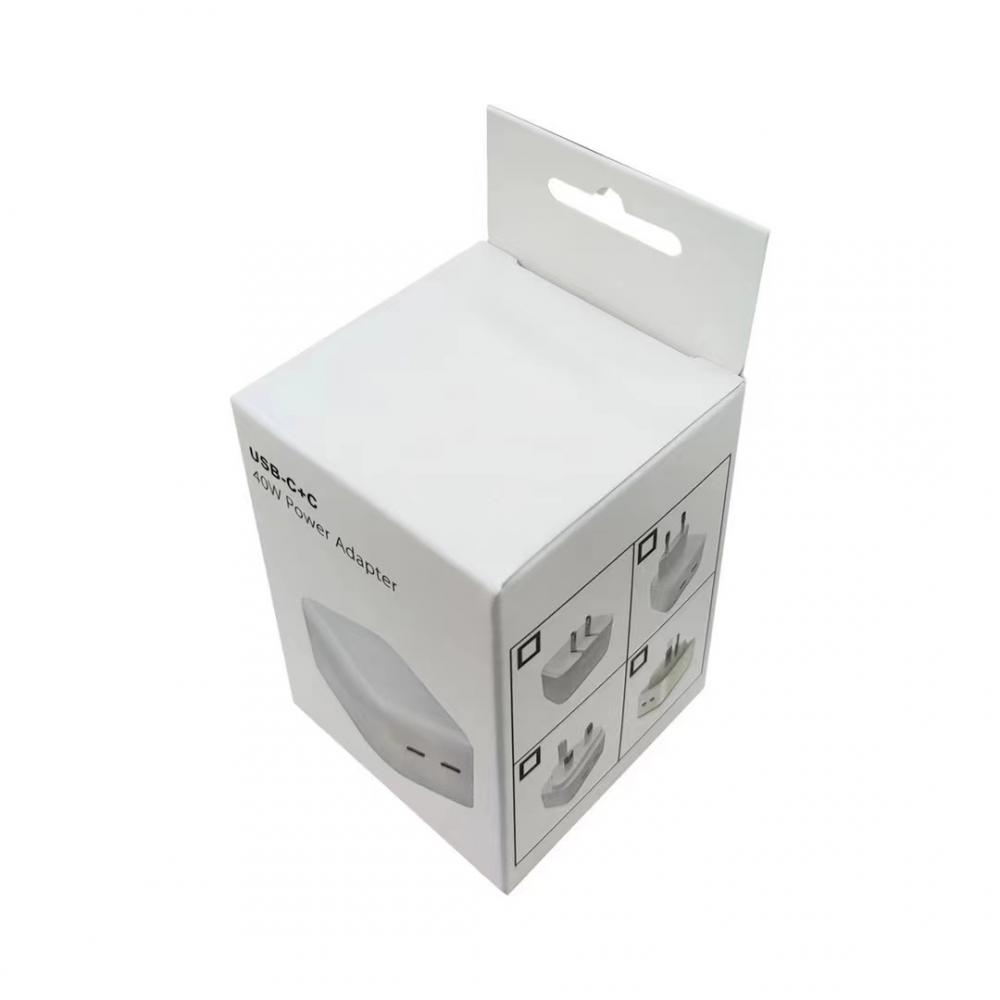

PACKAGES:
