ASUS ac/dc Charger 45W Type-C Power Supply

ASUS ac/dc Charger 45W Type-C Power Supply

USD13.85

50-999 Piece/Pieces
USD13.55

≥1000 Piece/Pieces

Payment Type:: L/C, T/T, Paypal, Money Gram, Western Union

Incoterm:: FOB, CIF, EXW

Min. Order:: 50 Piece/Pieces

Min. Order:: 50 Piece/Pieces

Delivery Time:: 3-5 Days

Transportation:: Ocean, Land, Air, express

Port:: GUAGNZHOU, SHEKOU, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000pcs per month
Supply Ability:	10000000pcs per month
Payment Type:	L/C,T/T,Paypal,Money Gram,Western Union
Incoterm:	FOB,CIF,EXW
Certificate:	CE&ROHS
Transportation:	Ocean,Land,Air,express
Port:	GUAGNZHOU,SHEKOU,SHENZHEN

Product Description

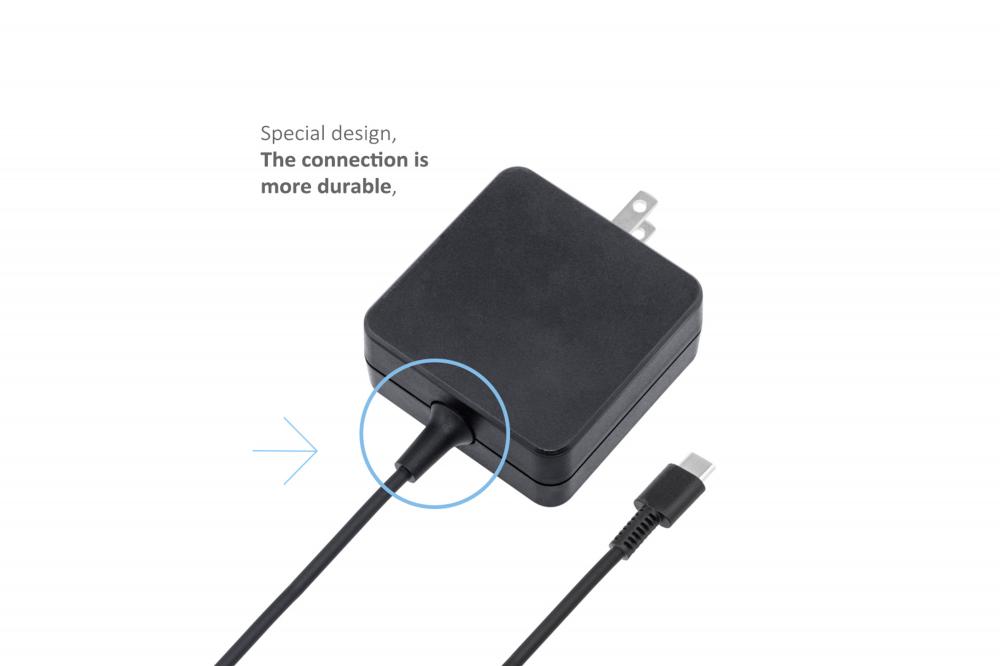

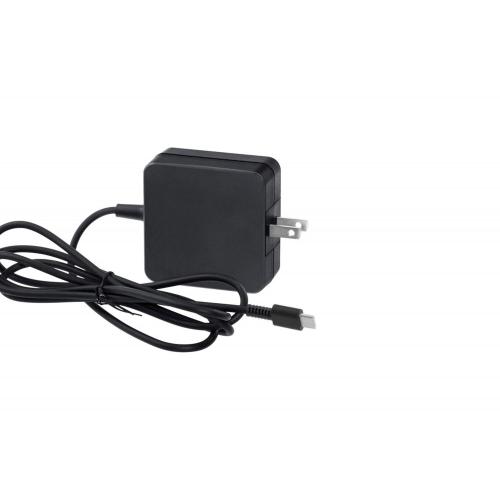

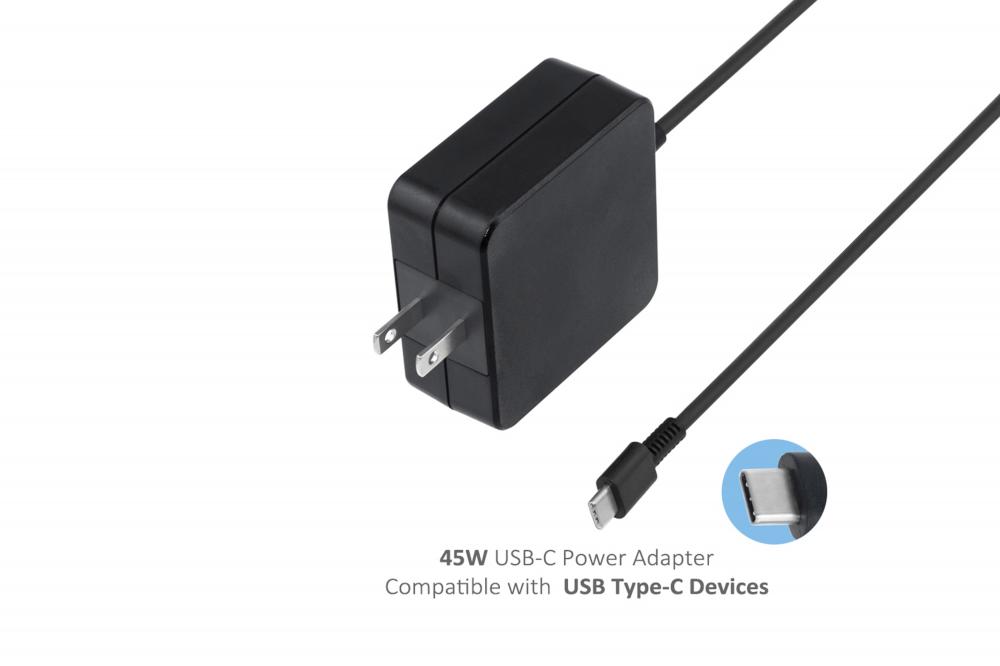

ASUS ac/dc Charger 45W Type-C Power Supply

Type-C has three advantages.

1. It supports high current and high voltage charging, which helps to improve the charging speed.

2. Type-C can transmit audio-visual signals, so it can be extended to a variety of audio and video output interfaces.

3. It supports two-way power supply. The usbtypc-c interface can not only charge the equipment itself, but also supply power to external equipment

Type c charger is a next-generation industry standard that allows charging, data transfer, and video-all in one simple connector USB-C. We are professional manufacturer of all brands of new usb c laptop charger and usb-c PD wall charger, we can offer 12W 29W 30W 45W 61W 65W 87W 90W usb c charger for all popular brand. Our usb c adapter with smart circuit keeps your device safe with multiple protections, including over current protection, over voltage protection, short circuit protection, over heating protection, overload protection.New usb c power adapter with PD can be intelligently recognizes your device and provide accurate charging current with high speed and fast charging. One PD charger with muti output can charge different brands of type-c laptop , mobile phone and other usb-c devices.

description

Specifications
Model No.	YAS405
AC Input
Nominal Input Voltage	AC 100V~240V
Input Voltage Range	AC 95V~265V
Input Frequency	50/60Hz
DC Output
Output Voltage& current	5V2A/ 12V 2A /20V2.25A
Output Power	45W
DC Connector Size	NEW TYPE C
Line Regulation	2%
Load Regulation	5%
Ripple Noise	180 Mvp-p
Efficiency	>85%
Output Cable Standard	0.5mm2, OD 4.0mm Pure Copper
Output Cable Length	2m normally or customized requirement
Environment
Operating Temperature	0°C ~40°C
Operating Humidity	5%~95%RH
Storage Temperature	-20°C ~85°C
Storage Humidity	5%~95%RH
Protection
Over Load Protection	Short Circuit Protection
Over Current Protection	Over Temperature Protection
Certificates
CE, FCC,ROHS
Dimensions
Adapter Size	656529 MM(not including the AC plug)
Ac plug length	40mm
Adapter Weight	160G
Inner Box Size	19134.7 CM
Inner Box Weight	40G
PCS/CTN	50PCS
Outer Carton Size	48.53240 CM
Outer Carton Weight	860G
GW/CTN	10860G
Package
Inner Box	Normally neutral brown box or customized requirement
Outer Carton	Normally neutral standard carton or customized requirement
Warranty
Guarantee	30 days
Warranty	2 years
Terms and Conditions
MOQ	100PCS for mixed order
Payment Terms	T/T, L/C, PayPal, western union
Delivery Time	3-5 days
Manufacturing Process
1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping
Test Procedures
1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test

show

packing procedure fair

Our Services:

Good quality & low wholesale prices
•Concentrating on the R&D, production and sales of laptop adapters for almost all computer brands for over 10 years, with CE/ROHS/FCC/ERP.
•High quality laptop adapters with OCP/OVP/SCP/OTP protection
•Offering the original manufacturer prices.
•Strict QC & perfect after-sales services
•Controlling every process from the procurement of raw materials, assembling, test, improvement, till the finished products.
•1 year warranty, regular after-sales tracking, professional related technology instruction.

•We can support you with customized logo and package.
