12v 10A 120W 18CH CCTV Power Box

$16.28

50-99 Piece/Pieces
$15.45

≥100 Piece/Pieces

Transportation:: Ocean, Air, by express(DHL/UPS/FEDEX/TNT)

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	20000pcs/day
Supply Ability:	20000pcs/day
Payment Type:	L/C,T/T,Paypal,Western Union
Incoterm:	FOB,CFR,CIF,EXW,FCA
Certificate:	CE FCC ROHS
HS Code:	8504401300
Transportation:	Ocean,Air,by express(DHL/UPS/FEDEX/TNT)
Port:	Shenzhen

Product Description

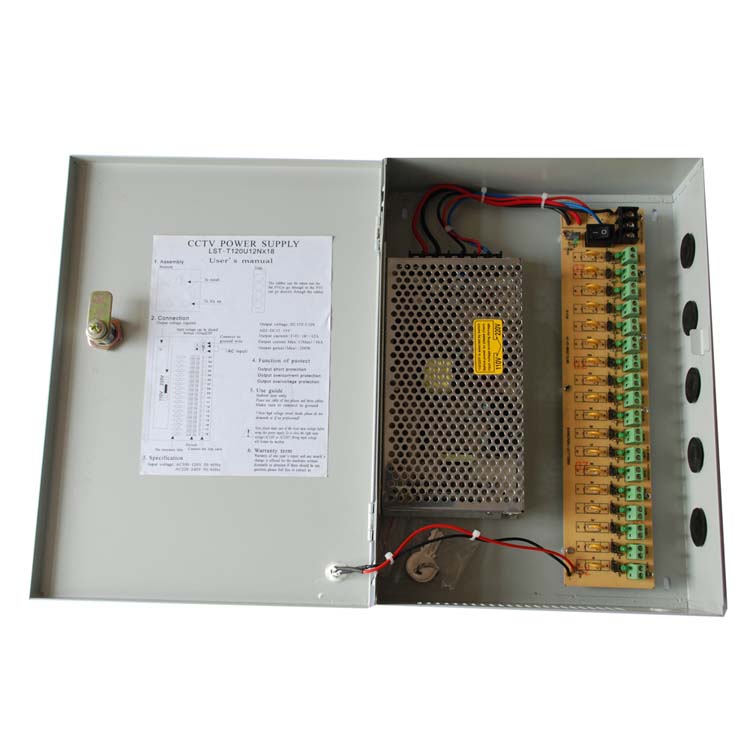

12v 10A 120W 18CH CCTV Power Box

Product Feature: 12V 10A 120W 18Channel Power Computer Power Cord Supply Box is a Computer Cable power supply protecting with a metal case box, there is design with general protection, high voltage protection, Mini Computer Cable over current protection. and the more details is

1, General Protection: Individual Protective Tube with Fuse and LED indicator on each output, when problem occurs, only affect the individual output, other outputs still working;
2, High voltage protection: When high voltage occurs, the surge protection will be hit through to protect the connected device;
3, Over Current protection: When over current occurs, the power supply will automatically switch to self-protection status, when it is removed, then it will return to normal state;
4, Application: CCTV Camera, PTZ, IR Illuminators, Video Process,Access Control, etc.

Specifications
Features: >> 110V/220V ON/OFF switch, Lockable >> Each channel with fuse or PTC for protection, spare fuses included >> Stable performance, high efficiency, low power consumption >> AC power LED indicator >> Cooling by free air convection >> 100% full loading burn-in test >> Unit maintains camera synchronization >> Easy installation saves time and eliminates costly labor >> 1 year warranty
MODEL NO		YDSBOX12-120-9	YDSBOX12-120-18
Input& Output	Input Voltage: AC 100~120V/AC 220~240V
	DC VOLTAGE	12V		12V
	OUTPUT POWER	120W		120W
	Channels	9CH		18CH
	Output Current	9*1.11A fused outlets(10A Max)		18*0.55A fused outlets(10AMax)
	Max. Ripple & Noise	250mV
	Load Regulation	±5%
Dimensions(mm)		250(L)220(W)65(H)		250(L)220(W)65(H)
Weight(KG)		1.4		1.62
Environment	Operating Temperature	0°C~40°C
	Storage Temperature	(-)20°C~+85°C
	Operating Relative Humidity	5%~95%RH
Protection:	Circuit Short Protection, High Voltage Protection, Over Current Protection, Over load Protection
SAFTY & EMC	Safety Standards	EN55015/EN61000-3-2/EN61000-3-3
Notes:	For Indoor Use Only!
Application	1.Digital and electronic products
	2.LED, CCTV supervisory system
	3.CCTV monitoring camera

Part of YDS CCTV Power Supply Box Specification
YDSBOX12-36-4	12V 3A	4-CH power supply with metal box
YDSBOX12-60-4	12V 5A	4-CH power supply with metal box
YDSBOX12-60-6	12V 5A	6-CH power supply with metal box
YDSBOX12-60-9	12V 5A	9-CH power supply with metal box
YDSBOX12-120-9	12V 10A	9-CH power supply with metal box
YDSBOX12-120-18	12V 10A	18-CH power supply with metal box
YDSBOX12-180-9	12V 15A	9-CH power supply with metal box
YDSBOX12-180-18	12V 15A	18-CH power supply with metal box
YDSBOX12-240-18	12V 20A	18-CH power supply with metal box
YDSBOX12-360-18	12V 30A	18-CH power supply with metal box
