13w ac dc laptop charger 5.2v2.5a power adapter

13w ac dc laptop charger 5.2v2.5a power adapter

USD8.53

50-499 Piece/Pieces
USD8.24

≥500 Piece/Pieces

Payment Type:: T/T, Western Union

Incoterm:: FOB, CIF, EXW

Min. Order:: 50 Piece/Pieces

Min. Order:: 50 Piece/Pieces

Delivery Time:: 5-14 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Yantian, Hongkong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	200000pcs/Month
Supply Ability:	200000pcs/Month
Payment Type:	T/T,Western Union
Incoterm:	FOB,CIF,EXW
Certificate:	CE FCC ROHS UL TUV PSE
HS Code:	8504401300
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Yantian,Hongkong

Product Description

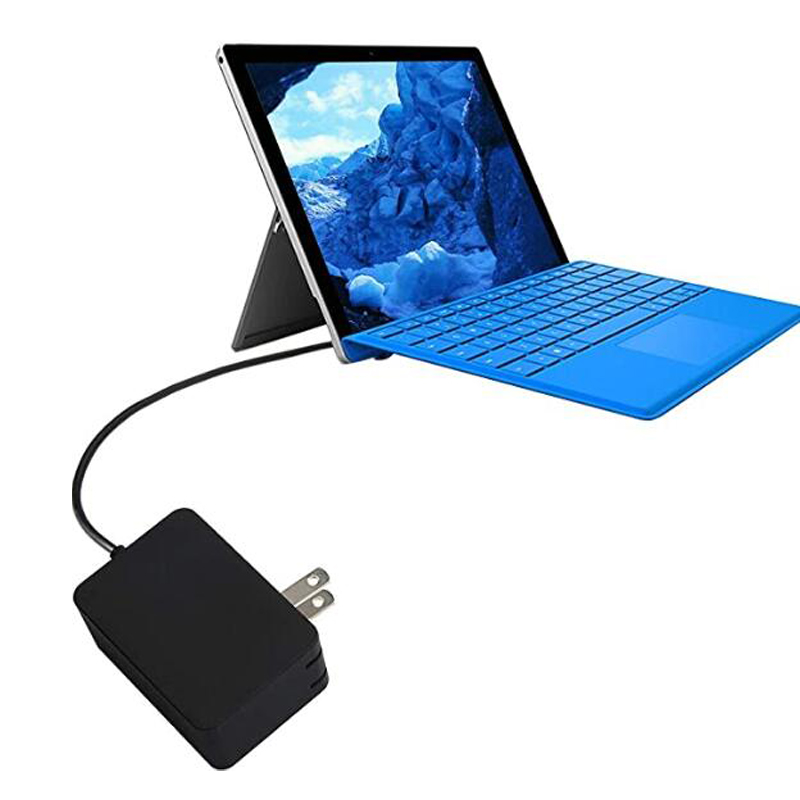

13w ac dc laptop charger 5.2v2.5a power adapter

The design concept of the Microsoft Surface 2-in-1 tablet is advanced. You can use it as a tablet to play on the bed, or you can put it on the desk with the keyboard as a notebook for office work. So far, Microsoft Surface has been updated many times. The maximum output power of 5.2v 2.5a laptop charger is 13W.

As for how to charge Microsoft laptop, first insert the end with 220 power adapter plug into the ac adapter input interface, and then plug the ac dc adapter (laptop charger)with data line directly into the charging input interface of the device to charge.

Test conditionsof this power adapter: under normal operation of any load, use an oscilloscope with a bandwidth of 20MHz to connect to the output of the charger, while the output is connected with a 47uF electrolytic capacitor and a 0.1uF porcelain chip capacitor.

Product description:

Specifications
Model No.	YM13
AC Input
Nominal Input Voltage	AC 100V~240V
Input Voltage Range	AC 95V~265V
Input Frequency	50/60Hz
DC Output
Output Voltage	5.2V
Output Current	2.5A
Output Power	13W
DC Connector Size	For Microsoft Surface Pro2
Line Regulation	2%
Load Regulation	5%
Ripple Noise	150 Mvp-p
Efficiency	>85%
Output Cable Standard	0.5mm² Pure Copper
Output Cable Length	1.5m normally or customized requirement
Environment
Operating Temperature	0°C ~40°C
Operating Humidity	5%~95%RH
Storage Temperature	-20°C ~85°C
Storage Humidity	5%~95%RH
Protection
Over Load Protection	Short Circuit Protection
Over Current Protection	Over Temperature Protection
Certificates
CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE
Dimensions
Adapter Size	10.84.92.9CM
Adapter Weight	215G
Inner Box Size	19134.7CM
Inner Box Weight	40G
PCS/CTN	50PCS
Outer Carton Size	48.53240CM
Outer Carton Weight	860G
GW/CTN	13610G
Package
Inner Box	Normally neutral brown box or customized requirement
Outer Carton	Normally neutral standard carton or customized requirement
Warranty
Guarantee	30 days
Warranty	1 year
Terms and Conditions
MOQ	100PCS for mixed order
Payment Terms	T/T, L/C, PayPal, western union
Delivery Time	3-5 days

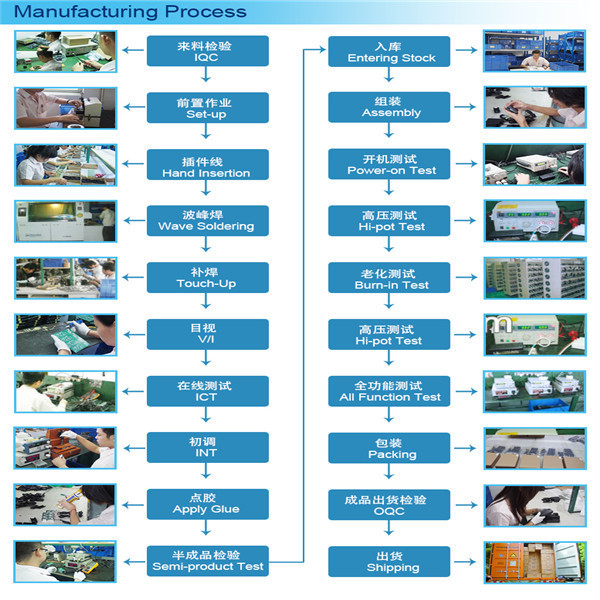

Manufacturing Process
1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping
Test Procedures
1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test
