Portable 19v 6.3a ac adapter for Liteon 5.5*2.5

Portable 19v 6.3a ac adapter for Liteon 5.5*2.5

Liteon Power Adapter‘ advantage：

The Liteon notebook adapter efficiency of filtering is greatly improved, which greatly reduces the capacity and volume of the filtering capacitor. The working frequency of the switching power adapter is currently basically working above 50kHz, which is more than 1000 times that of the linear regulated power adapter. This makes the filtering efficiency after rectification almost 1000 times higher; The efficiency is also increased by 500 times. Under the same ripple output voltage, when a switching power supply is used, the capacity of the filter capacitor is only 1/500 to 1/1000 of the filter capacitor in a linear regulated power supply.

Liteon Laptop Charger specifications:

Output :19v 6.3a 120w

DC Connector Size:5.5*2.5

Adapter size:16.8*6.7*4.2CM

Adapter Weight:560G

Line Regulation:2%

Load Regulation:5%

Ripple Noise:180 Mvp-p

Efficiency:>85%

Operating Temperature:0°C ~40°C

Operating Humidity:5%~95%RH

Storage Temperature:-20°C ~85°C

Storage Humidity:5%~95%RH

Warranty: 2 years

Certificates:CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE

MOQ:100pcs

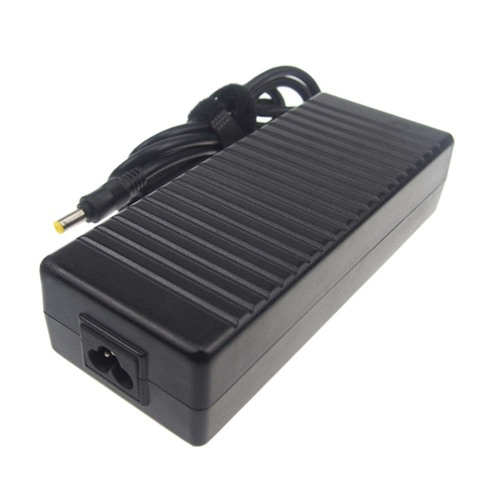

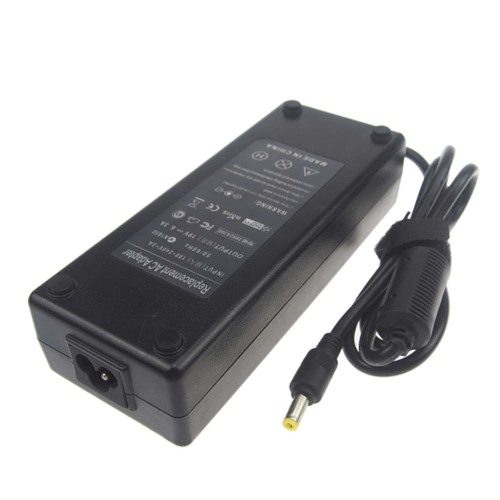

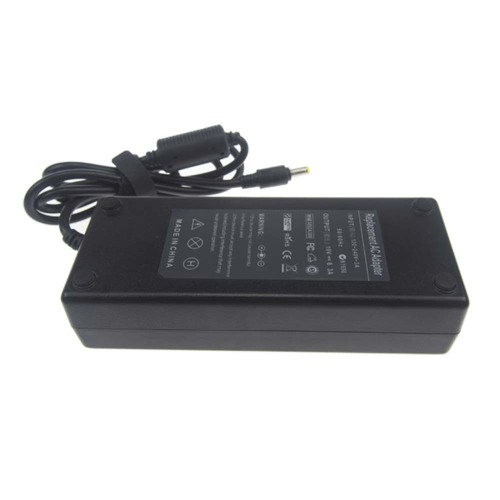

Liteon Ac Adapter Images:

Liteon Acer Laptop Charger Package:

Inner Box Size:19*13*4.7CM

Inner Box Weight:40G

PCS/CTN:50PCS

Outer Carton Size:48.5*32*40CM

Outer Carton Weight:860G
