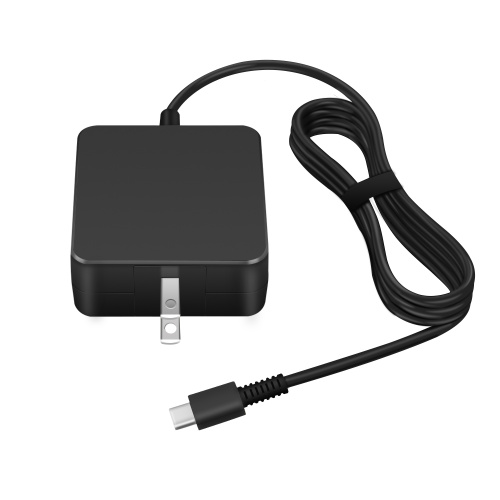

Wholesale Prices 45w Type c Charger For ASUS

Product description

• Universal Compatibility, This phone charger is compatible with almost all the usb c laptop. you could use it to charge the your cpmputer and other devices.
• Safe and  Reliable, it  can prevent the input power of the phone from overcharging, over-current and overheating. And the housing material is ABS, fireproof and has a better heat dissipation.
•


Product details

•

  Specifications Model No. YAS405 AC Input Nominal Input Voltage AC 100V~240V Input Voltage Range AC 95V~265V Input Frequency 50/60Hz DC Output Output Voltage& current 5V2A/ 12V 2A /20V2.25A Output Power 45W DC Connector Size NEW TYPE C Line Regulation 2% Load Regulation 5% Ripple Noise 180 Mvp-p Efficiency >85% Output Cable Standard 0.5mm2, OD 4.0mm  Pure Copper Output Cable Length 2m normally or customized requirement Environment Operating Temperature 0°C ~40°C Operating Humidity 5%~95%RH Storage Temperature -20°C ~85°C Storage Humidity 5%~95%RH Protection Over Load Protection Short Circuit Protection Over Current Protection Over Temperature Protection Certificates CE, FCC,ROHS Dimensions Adapter Size 65*65*29 MM(not including the AC plug) Ac plug length 40mm Adapter Weight 160G Inner Box Size 19*13*4.7 CM Inner Box Weight 40G PCS/CTN 50PCS Outer Carton Size 48.5*32*40 CM Outer Carton Weight 860G GW/CTN 10860G Package Inner Box Normally neutral brown box or customized requirement Outer Carton Normally neutral standard carton or customized requirement Warranty Guarantee 30 days Warranty 2 years Terms and Conditions MOQ 100PCS for mixed order Payment Terms T/T, L/C, PayPal, western union Delivery Time 3-5 days Manufacturing Process 1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping Test Procedures 1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test









Pictures

Company overview

Shenzhen Yidashun Technology Co.,Ltd, established in 2007, is a high-tech enterprise approved by government, which is dedicated to the R&D, manufacture and sales of laptop adapter, universal laptop adapter, ac dc power adapter, wall adapter, usb charger, usb car charger, power cable, data cable and switching power supply and LED driver.

The headquarter is located in Shenzhen, Yidashun has 4 factories totally, 1st factory specializing in usb charger and usb car charger in Shenzhen with 2000 square meters, 2nd factory specializing in laptop adapter, wall adapter, USB-C PD charger in dongguan with 3500 square meters, 3rd factory specializing in data cable,dc cable and ac power cable in shenzhen with 1500 square meters, 4th factory specializing in switching power supply and led driver in hubei with 4000 square meters.

Yidashun has a brother company TOP 3D, which is specialized in 3D printer.

Our products passed CE, ROHS, FCC, ERP, CB, KC, UL,VDE certificates with 1 year or 2 years warranty;

We have 4 professional foreign sales group and 1 domestic sales group of wholesales to trade companies in China;

We believe our prices are the most competitive and our quality is the most super, welcome to inquiry!
