Gateway 19v 3.16a 60w power charger

$3.88

100-999 Piece/Pieces
$3.28

≥1000 Piece/Pieces

Transportation:: Ocean, Land, Air, FEDEX DHL UPS

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China,Guangdong
Productivity:	20000PCS/day
Supply Ability:	20000PCS/day
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CFR,CIF
Certificate:	CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE
HS Code:	8504401300
Transportation:	Ocean,Land,Air,FEDEX DHL UPS
Port:	SHENZHEN

Product Description

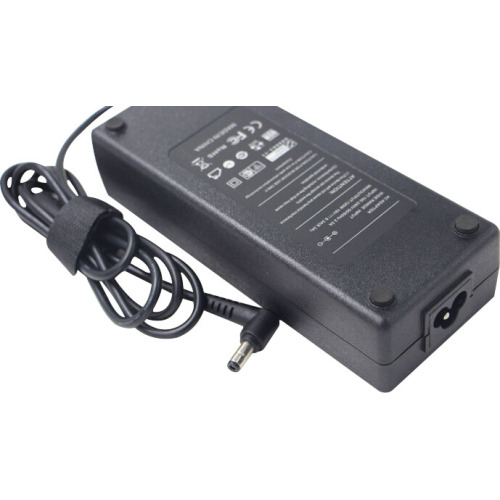

Gateway 19v 3.16a 60w power charger

Gateway Charger

Gateway Adapter is actually an external power supply that we often see. It can be said that it is
a small power supply device. As a small electronic product, it is very portable. It can supply power and
convert voltages for many electronic appliances. It can convert high voltages of 220 volts to stable low
voltages of 5 to 20 volts, which can make these electronic appliances work normally . For the switching
power adapter, its basic composition is the shell, as well as the power transformer and the corresponding
rectifier circuit. According to the type of output, it can be divided into two types: AC output type and
DC output type.

Gateway Laptop Charger specification:

Specifications
Model No.	YGH301
AC Input
Nominal Input Voltage	AC 100V~240V
Input Voltage Range	AC 95V~265V
Input Frequency	50/60Hz
DC Output
Output Voltage	19V
Output Current
Output Power	60W
DC Connector Size	5.5*2.5
Line Regulation	2%
Load Regulation	5%
Ripple Noise	180 Mvp-p
Efficiency	>85%
Output Cable Standard	1mm2 Pure Copper
Output Cable Length	1.5m normally or customized requirement
Environment
Operating Temperature	0°C ~40°C
Operating Humidity	5%~95%RH
Storage Temperature	-20°C ~85°C
Storage Humidity	5%~95%RH
Protection
Over Load Protection	Short Circuit Protection
Over Current Protection	Over Temperature Protection
Certificates
CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE
Dimensions
Adapter Size	16.86.74.2CM
Adapter Weight	560G
Inner Box Size	21.514.55.5CM
Inner Box Weight	60G
PCS/CTN	50PCS
Outer Carton Size	55.54437.5CM
Outer Carton Weight	1080G
GW/CTN	32080G
Package
Inner Box	Normally neutral brown box or customized requirement
Outer Carton	Normally neutral standard carton or customized requirement
Warranty
Guarantee	30 days
Warranty	2 years
Terms and Conditions
MOQ	100PCS for mixed order
Payment Terms	T/T, L/C, PayPal, western union
Delivery Time	3-5 days
Manufacturing Process
1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping
Test Procedures
1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test
