19.5V 3.34A 65W 7.4*5.0MM With Pin Adapter

Product description

• Good Quality:Our laptop adapter is 19.5V  3.34A  65W for DELL. Its DC Tips is 7.4*5.0mm. It has a very beautiful apperance, and this product has a good quality, our company has a strict quality control.
• Safe and  Reliable, it  can prevent the input power of the phone from overcharging, over-current and overheating. And the housing material is ABS, fireproof and has a better heat dissipation.
• Its size is15.2*5.9*3.CM , weight is 290g.

Product details

•

  Specifications
  Model No.	YDH306
  AC Input
  Nominal Input Voltage	AC 100V~240V
  Input Voltage Range	AC 95V~265V
  Input Frequency	50/60Hz
  DC Output
  Output Voltage	19.5V
  Output Current	3.34A
  Output Power	65W
  DC Connector Size	7.4*5.0 with pin
  Line Regulation	2%
  Load Regulation	5%
  Ripple Noise	180 Mvp-p
  Efficiency	>85%
  Output Cable Standard	0.5mm2 Pure Copper
  Output Cable Length	1.5m normally or customized requirement
  Environment
  Operating Temperature	0°C ~40°C
  Operating Humidity	5%~95%RH
  Storage Temperature	-20°C ~85°C
  Storage Humidity	5%~95%RH
  Protection
  Over Load Protection	Short Circuit Protection
  Over Current Protection	Over Temperature Protection
  Dimensions
  Adapter Size	15.2*5.9*3.5CM
  Adapter Weight	290G
  Inner Box Size	19*13*4.7CM
  Inner Box Weight	40G
  PCS/CTN	50PCS
  Outer Carton Size	48.5*32*40CM
  Outer Carton Weight	860G
  GW/CTN	17360G
  Package
  Inner Box	Normally neutral brown box or customized requirement
  Outer Carton	Normally neutral standard carton or customized requirement
  Warranty
  Guarantee	30 days
  Warranty	2 years
  Terms and Conditions
  MOQ	100PCS for mixed order
  Payment Terms	T/T, L/C, PayPal, western union
  Delivery Time	3-5 days
  Manufacturing Process
  1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping
  Test Procedures
  1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test

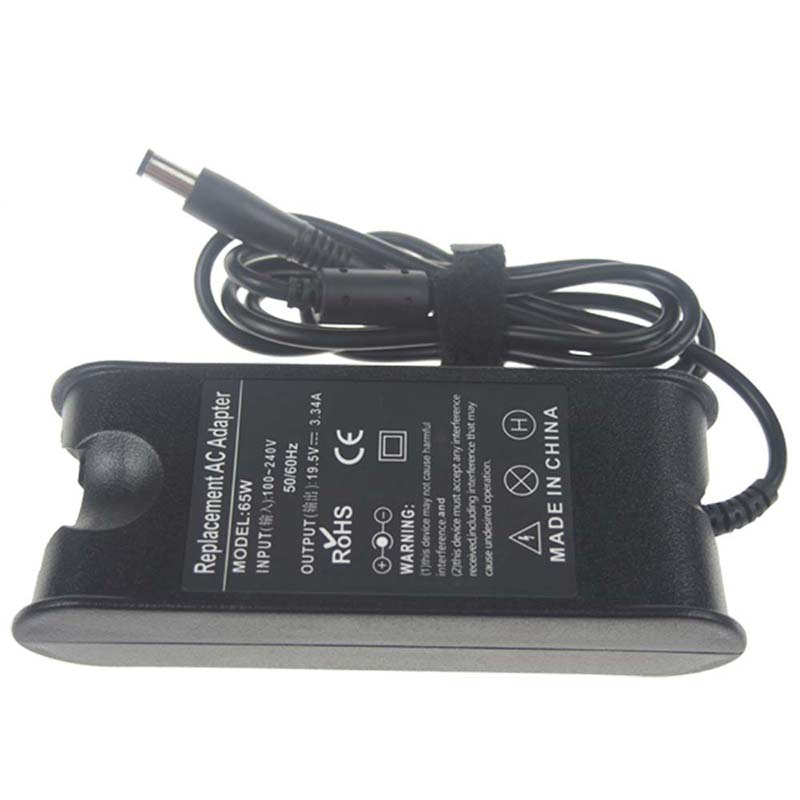

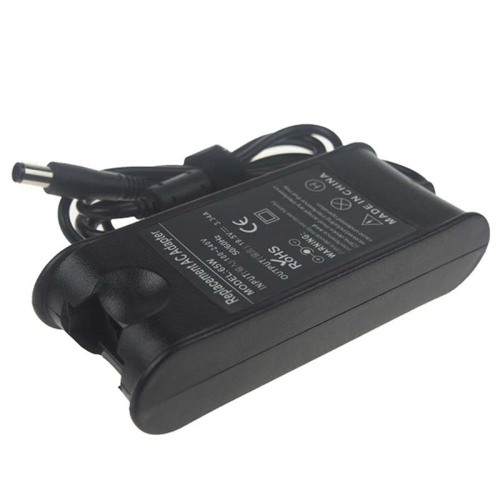

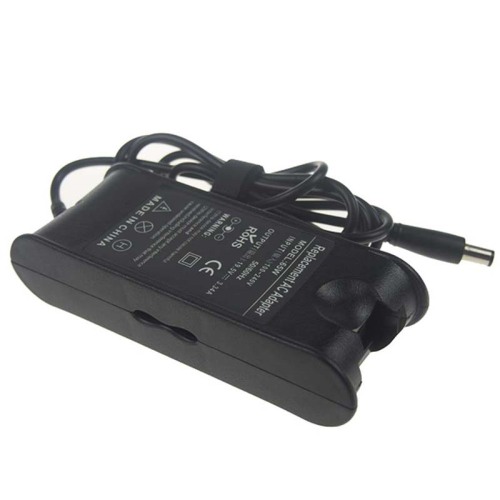

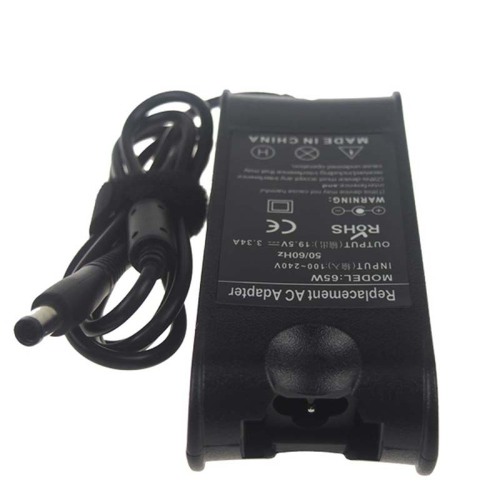

Pictures

Company overview

Shenzhen Yidashun Technology Co.,Ltd, established in 2007, is a high-tech enterprise approved by government, which is dedicated to the R&D, manufacture and sales of laptop adapter, universal laptop adapter, ac dc power adapter, wall adapter, usb charger, usb car charger, power cable, data cable and switching power supply and LED driver.

The headquarter is located in Shenzhen, Yidashun has 4 factories totally, 1st factory specializing in usb charger and usb car charger in Shenzhen with 2000 square meters, 2nd factory specializing in laptop adapter, wall adapter, USB-C PD charger in dongguan with 3500 square meters, 3rd factory specializing in data cable,dc cable and ac power cable in shenzhen with 1500 square meters, 4th factory specializing in switching power supply and led driver in hubei with 4000 square meters.

Yidashun has a brother company TOP 3D, which is specialized in 3D printer.

Our products passed CE, ROHS, FCC, ERP, CB, KC, UL,VDE certificates with 1 year or 2 years warranty;

We have 4 professional foreign sales group and 1 domestic sales group of wholesales to trade companies in China;

We believe our prices are the most competitive and our quality is the most super, welcome to inquiry!
