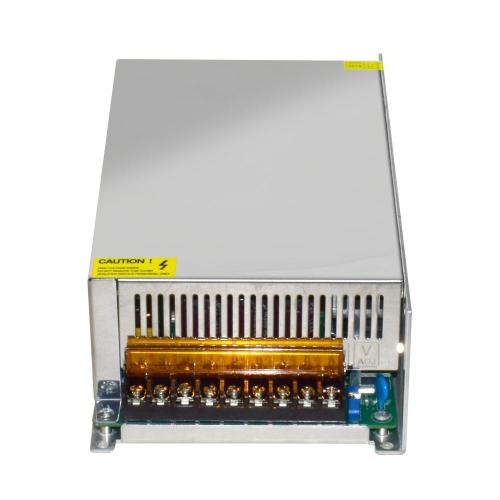

12V 80A 960W high-efficiency switch power supply

Every 12v 80a power supply goes through a full-load burn-in test so no defective unit leaves the factory. The built-in fan turns on automatically when the unit gets warm and the 12v power supply shuts down temporarily if the temperature, current, or voltage go beyond the safe operating range. And short-circuit and overload protections helps these units survive harsh operating conditions.

These 12v 80a 960w high-efficiency power supplies have an output voltage that is adjustable by plus or minus 10% ,And they include an EMI filter to minimize interference with radio signals, and a soft-start circuit that reduces the AC inrush current peaks.

This big 12 Volt, 80 Amp, 1000 Watt led light power supply can deliver enough current to get all AmpFlow motors operating at, or near, their points of peak efficiency. If even higher power is required, all the 1000w led power supply have special provisions to enable them to run in parallel with several other units so any level of power can be achieved.

                       12V 80A 960W high-efficiency switch power supply

Specifications

MODEL NO :YDSPS960-1208000
Input& Output

Input Voltage: AC 100~240V
DC VOLTAGE  :12V
OUTPUT POWER :960W
Output Current : 80A
Max. Ripple & Noise :250mV
Load Regulation: ±5%
Environment Operating Temperature: 0°C~40°C
Storage Temperature :(-)20°C~+85°C
Operating Relative Humidity :5%~95%RHProtection: Circuit Short Protection, High Voltage Protection, Over Current Protection, Over load Protection

SAFTY & EMC Safety Standards :EN55015/EN61000-3-2/EN61000-3-3
Notes: For Indoor Use Only!

Application

1.Digital and electronic products
2.LED, lights
3.CCTV monitoring camera
