SMPS Slim 12V 12.5A Switching Power Supply

SMPS Slim 12V 12.5A Switching Power Supply

USD7.18

100-999 Piece/Pieces
USD6.82

≥1000 Piece/Pieces

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Delivery Time:: 3-5 Days

Transportation:: Ocean, Air, FEDEX DHL UPS

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	20000PCS/day
Supply Ability:	20000PCS/day
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE
Transportation:	Ocean,Air,FEDEX DHL UPS
Port:	SHENZHEN

Product Description

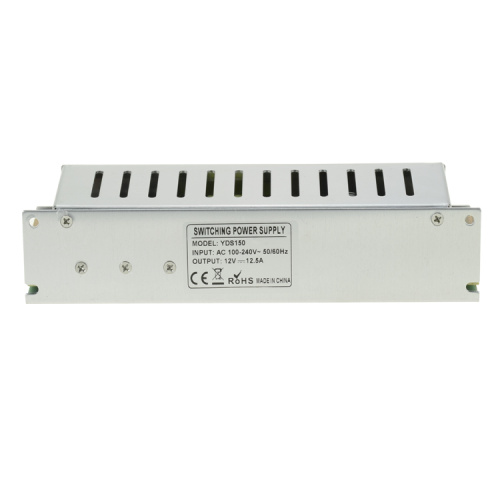

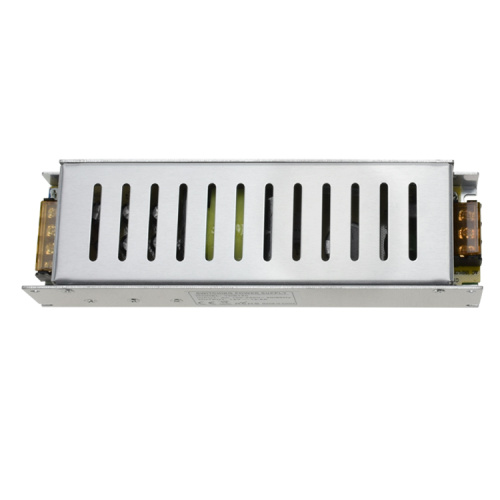

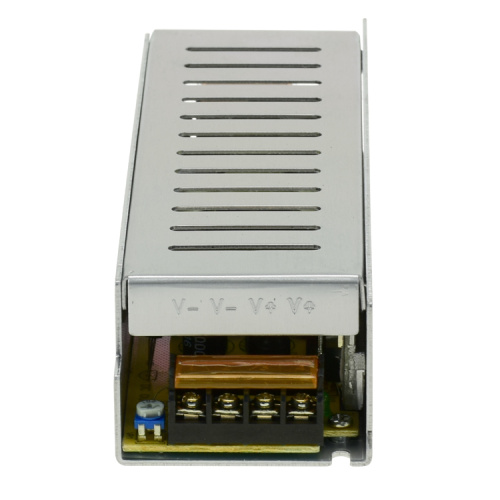

Slim 12V 12.5A Switching Power Supply

About the switching power supply

Switching power supply is a kind of power supply that uses modern power electronics technology to control the time ratio of switch on and off to maintain a stable output voltage. Switching power supply is generally composed of pulse width modulation (PWM) control IC and MOSFET. With the development and innovation of swicthing power supply's electronics technology, switching power supply technology is also constantly innovating with different power supply At present, the switching power supply is widely used in almost all electronic devices due to SMPS's small size, light weight and high efficiency.

description

Slim 12V 12.5A Technical Specification
Model No.	YDSS12-150
Input	Voltage	AC 110V or 220V(with switch)
Input	Frequency	50-60Hz
Output	Voltage	DC 12V
	Current	12.5A
	Power	150W
	Typical Efficiency	73%
	Adjustable Range of Voltage	DC 12V-12.5V
	Max. Ripple & Noise	250mV
Protection	Over Load	105-115% of Rated Output Power
Protection	Short Circuit	Protection Type: Auto Recovery
Electric Strength	High-pot test	3KV AC
Environment	Working temperature and humidity	-10°C~+60°C,20~90%RH
	Store temperature and humidity	20°C~+85°C,10~95%RH
	MTBF	>200K hrs.@25°C(MIL-HDBK-217F)
Warranty	1 year
Feature	Dimension(LWH)	1995840mm
	Weight	350g
	Inner box size	20510246mm
	Inner box weight	30g
	PCS/CTN	40PCS/CTN
	CTN size	500220433mm
	GW/CTN	17kg
Safety & EMC	Safety Standards	EN55015/EN61000-3-2/EN61000-3-3

More switching power switching power supply

We can produce 5V 12V 24V 36V 48V metal case switching power supply, pls let us know which one you are really want, and we will give you our suggestion and recommendation.
