5V 40A Slim Switching Power Supply

USD7.18

100-999 Piece/Pieces
USD6.82

≥1000 Piece/Pieces

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Delivery Time:: 3-5 Days

Transportation:: Ocean, Air, FEDEX DHL UPS

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	20000PCS/day
Supply Ability:	20000PCS/day
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE
Transportation:	Ocean,Air,FEDEX DHL UPS
Port:	SHENZHEN

Product Description

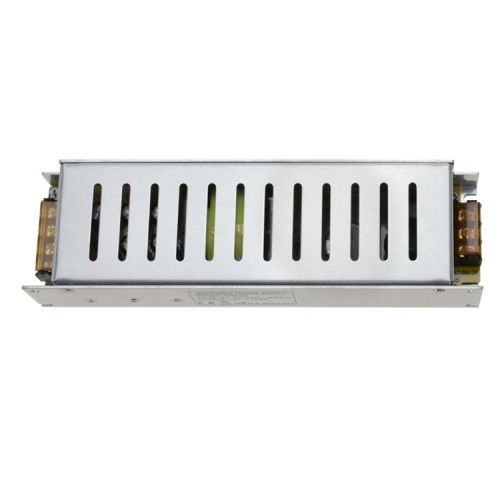

5V 40A Slim Switching Power Supply

About the switching power supply:

Switching power supplies are relatively linear.Switch mode power supply input terminal directly rectifies the alternating current into direct current, and Slim Switching Power Supply under the action of switching power supply's high-frequency oscillation circuit, the switching tube is used to control power supply's on and off of the current to form a high-frequency pulse current. With the help of an inductor (high-frequency transformer), a stable low-voltage direct current is output. Because the core size of the transformer is inversely proportional to the square of his operating frequency, the higher the frequency, the smaller the core. In this way, the transformer can be greatly reduced, and the power source can be reduced in weight and volume.

description

Slim 5V 40A Technical Specification
Model No.	YDSS5-200
Input	Voltage	AC 110V or 220V(with switch)
Input	Frequency	50-60Hz
Output	Voltage	DC 12V
	Current	12.5A
	Power	150W
	Typical Efficiency	73%
	Adjustable Range of Voltage	DC 12V-12.5V
	Max. Ripple & Noise	250mV
Protection	Over Load	105-115% of Rated Output Power
Protection	Short Circuit	Protection Type: Auto Recovery
Electric Strength	High-pot test	3KV AC
Environment	Working temperature and humidity	-10°C~+60°C,20~90%RH
	Store temperature and humidity	20°C~+85°C,10~95%RH
	MTBF	>200K hrs.@25°C(MIL-HDBK-217F)
Warranty	1 year
Feature	Dimension(LWH)	1995840mm
	Weight	350g
	Inner box size	1958030mm
	Inner box weight	30g
	PCS/CTN	40PCS/CTN
	CTN size	500220433mm
	GW/CTN	17kg
Safety & EMC	Safety Standards	EN55015/EN61000-3-2/EN61000-3-3

More switching power switching power supply

We can produce 5V 12V 24V 36V 48V metal case switching power supply, pls let us know which one you are really want, and we will give you our suggestion and recommendation.
