12V 5A 60W Power adapter power supply

USD2.68

100-999 Piece/Pieces
USD2.42

≥1000 Piece/Pieces

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Delivery Time:: 3-5 Days

Transportation:: Ocean, Air, FEDEX DHL UPS

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	20000PCS/day
Supply Ability:	20000PCS/day
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE
Transportation:	Ocean,Air,FEDEX DHL UPS
Port:	SHENZHEN

Product Description

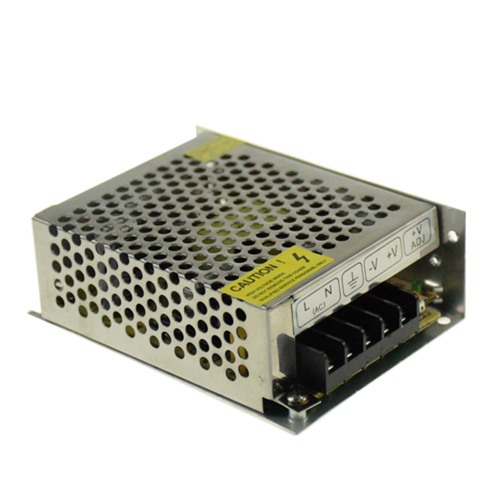

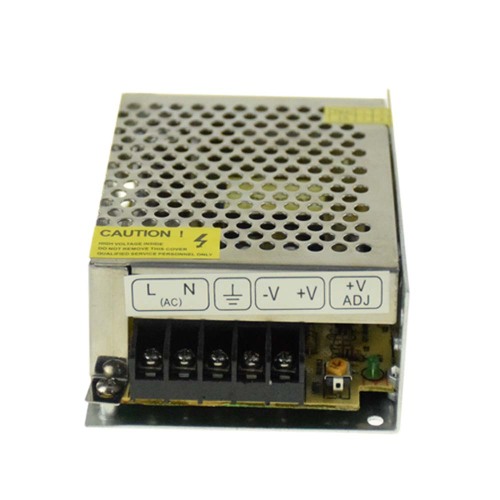

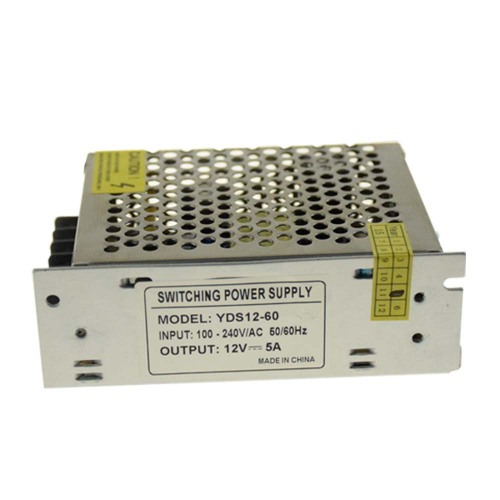

12V 5A 60W CCTV Switching Power Supply

About the Switching power supply:

Because Power adapter ,switching power supply directly controls DC, the efficiency of this power supply is much higher than power supply of a linear power supply. This saves energy, so SMPS is favored by people.But switching power supply also has disadvantages, that is, the circuit is complicated, maintenance is difficult, and the pollution to the circuit is serious. The 12V power supply is noisy and is not suitable for some low noise circuits.

description

12V 5A Technical Specification
Model No.	YDS60
Input	Voltage	AC 100-240V Worldwide
	Vibration Input Voltage Range	AC 95-265V
	Frequency	50-60Hz
Output	Voltage	DC 12V
	Current	5A
	Power	60W
	Typical Efficiency	73%
	Adjustable Range of Voltage	DC 12V-12.5V
	Max. Ripple & Noise	250mV
Protection	Over Load	105-115% of Rated Output Power
Protection	Short Circuit	Protection Type: Auto Recovery
Electric Strength	High-pot test	3KV AC
Environment	Working temperature and humidity	-10°C~+60°C,20~90%RH
	Store temperature and humidity	20°C~+85°C,10~95%RH
	MTBF	>200K hrs.@25°C(MIL-HDBK-217F)
Warranty	1 year
Feature	Dimension(LWH)	1117835mm
	Weight	187g
	Inner box size	1158142cm
	Inner box weight	19G
	PCS/CTN	100 PCS/CTN
	CTN size	43.33520cm
	GW/CTN	21.5kg
Safety & EMC	Safety Standards	EN55015/EN61000-3-2/EN61000-3-3

12V 5A

More switching power switching power supply

We can produce 5V 12V 24V 36V 48V metal case switching power supply, pls let us know which one you are really want, and we will give you our suggestion and recommendation.
