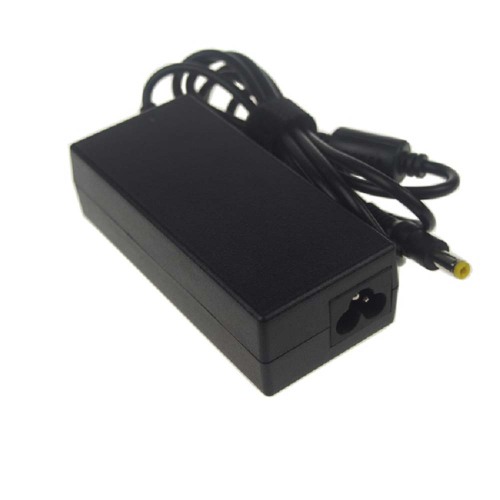

12V 4A ac dc adapter charger with dc5.5*2.5mm

12V 4A ac dc adapter charger with dc5.5*2.5mm

Yidashun's ac dc adapter charger uses TB3865 chip. TB3865 is a highly integrated current mode PWM control chip with high performance, low standby power consumption, low cost and other characteristics. The TB3865 of our power supply has a built-in green down-conversion operating mode, which adjusts the operating frequency according to the load, reducing switching losses, thereby obtaining higher conversion efficiency with lower standby power consumption. At the same time TB3865 provides a wealth of protection, including: cycle-by-cycle over-current protection, over-voltage protection, over-voltage clamping, under-voltage latch, over-temperature protection, overload protection, and also has soft start and intermittent work mode functions. Once a fault occurs, the chip enters an automatic restart state until the fault is eliminated.

Production specificates:

AC Input: AC 100V~240V(AC 95V~265V), 50/60Hz

DC Output:12V 4A 48W

DC Tip:5.5*2.5mm

Efficiency:>85%

Ripple Noise: below 150Mvp-p

DC cable standard:0.5mm2 Pure Copper

DC cable length:1.2m or can be customized

Operating Temperature:0°C ~40°C

Operating Humidity:5%~95%RH

Storage Temperature:-20°C ~85°C

Storage Humidity:5%~95%RH

Warranty:2 years

Certificate:CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE

MOQ:100pcs

Company information:

Shenzhen Yidashun Technology Co.Ltd, founded in 2007, is a professional manufacturer dedicated to producing and sale of laptop adapter, universal laptop adapter, 12v 24V desktop adapter for LED/CCTV, AC DC power adapter, wall adapter, metal case switching power supply for LED/CCTV, USB charger, car charger,usb wall socket,extension socket , power cable,usb cable etc electronical accessories.

Our products range including replacement ac adapter for all brands such as apple ,dell, hp/Compaq, Microsoft ,IBM/Lenovo, Sony, Toshiba, Fujitsu, Gateway, Liteon, Delta, NEC, LS, LG and so on.

Professional test:
For all our laptop ac adapter, we have a series of professional test from raw material~unfinished and products~finished products to control the quality seriously, each adapter make 100% checking and testing before delivery out.

Package information:

Safe packing, brown box or color box packing can be customized

Inner box size: 19*13*4.7 cm

PCS/CTN: 50PCS

Carton Size: 48.5 x 32 x 40cm

With many years of market experience, we have gained the trust of a wide audience. All our laptop adapters have passed CE FCC ROHS UL CUL ETL CB certificates with full 1 year and 2 years warranty.

Welcome to visit our factory and the worldwide exhibition in USA, HK, Germany, Brazil, Russia etc
